5.7.9. I/O port

Panel socket 3pin.
Pin Signal
no. mark
1 BIN0
2 GND
3 OUT0

Table 11: Connection of I/O port

The user interface I/O is for processing of binary input signal and to control (settings)
of binary output signal. Binary output is not switched to ground in the default configuration.
Maximum load binary output is 30V / 100mA. The constant current supplied by the
binary input is 3 mA.
Connector I/O cable connect into the I/O connector on the router head and tighten
locking screws. (See bellow picture)
Circuit example of a binary input or output equipment with router:
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
Description
Binary input
Signal ground
Binary output

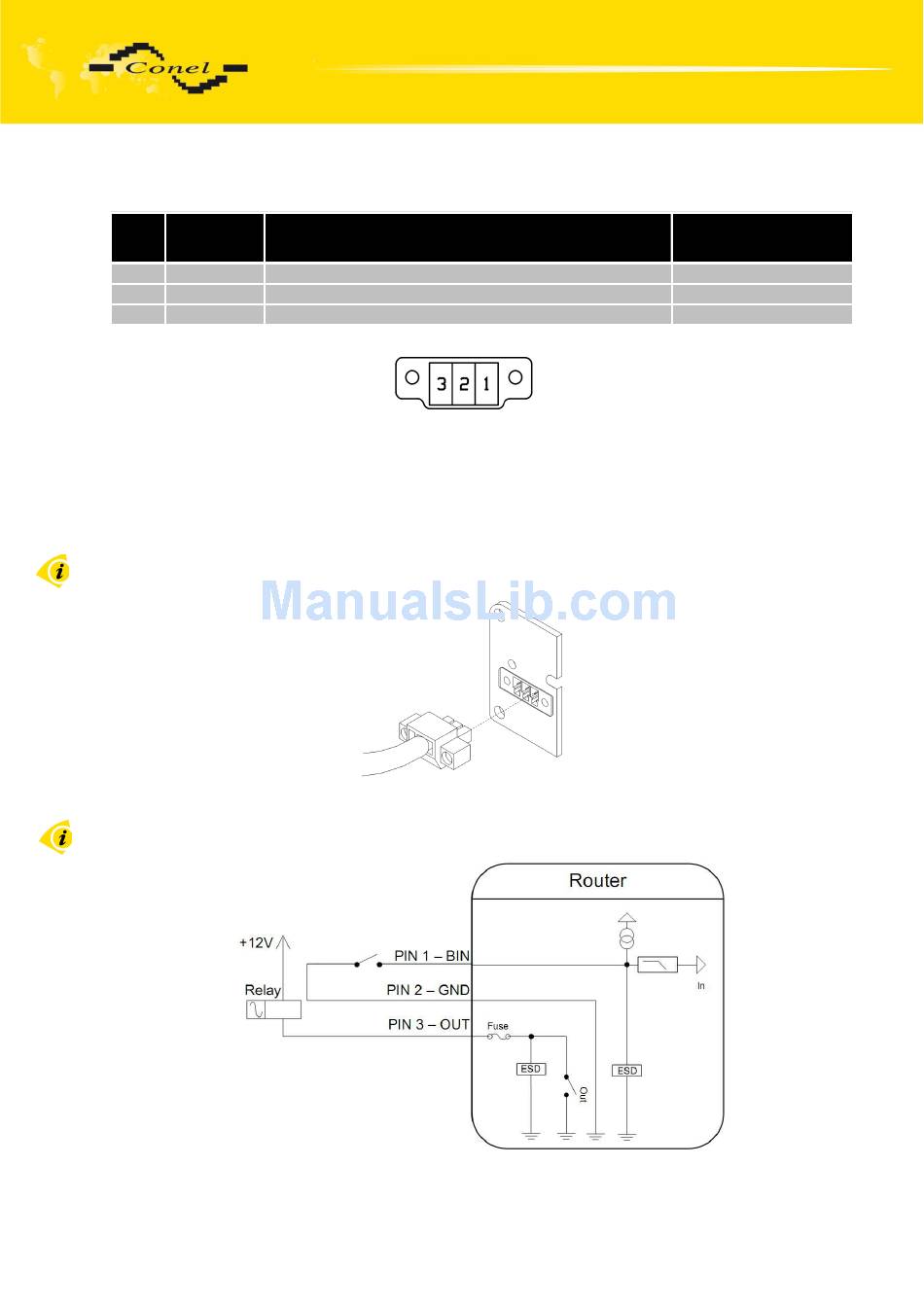

Fig. 32: I/O connector

Fig. 33: Connection I/O cable

Fig. 34: Connection input and output of router

ROUTER DESCRIPTION
Data flow direction
Input
Output
