5.7. User interfaces (connectors)

On the front panel is located:
Label Connector
PWR 2-pin
ETH RJ45
PORT1 RJ45
PORT2 RJ45
ANT SMA
USB USB-A Host
I/O 3-pin
SIM1 -
SIM2 -

Table 6: Front panel description

LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
Connector for connection the power supply adapter.
Connector for connection into the local computer network.
Connector for connection equipment over RS232, RS458/422,
ETHERNET, M-BUS, CNT or XC-SW.
Connector for connection equipment over RS232, RS485/422, M-BUS,
XC-SW, WIFI, WMBUS (only FULL version).
Connector for connection main antenna.
Connector for connection the devices with the router, USB supports
equipments with PL-2303 and FTDI USB/RS232 converter.
Connector for connection of the binary input and output.
Holder for first SIM card.
Holder for second SIM card (only FULL version).

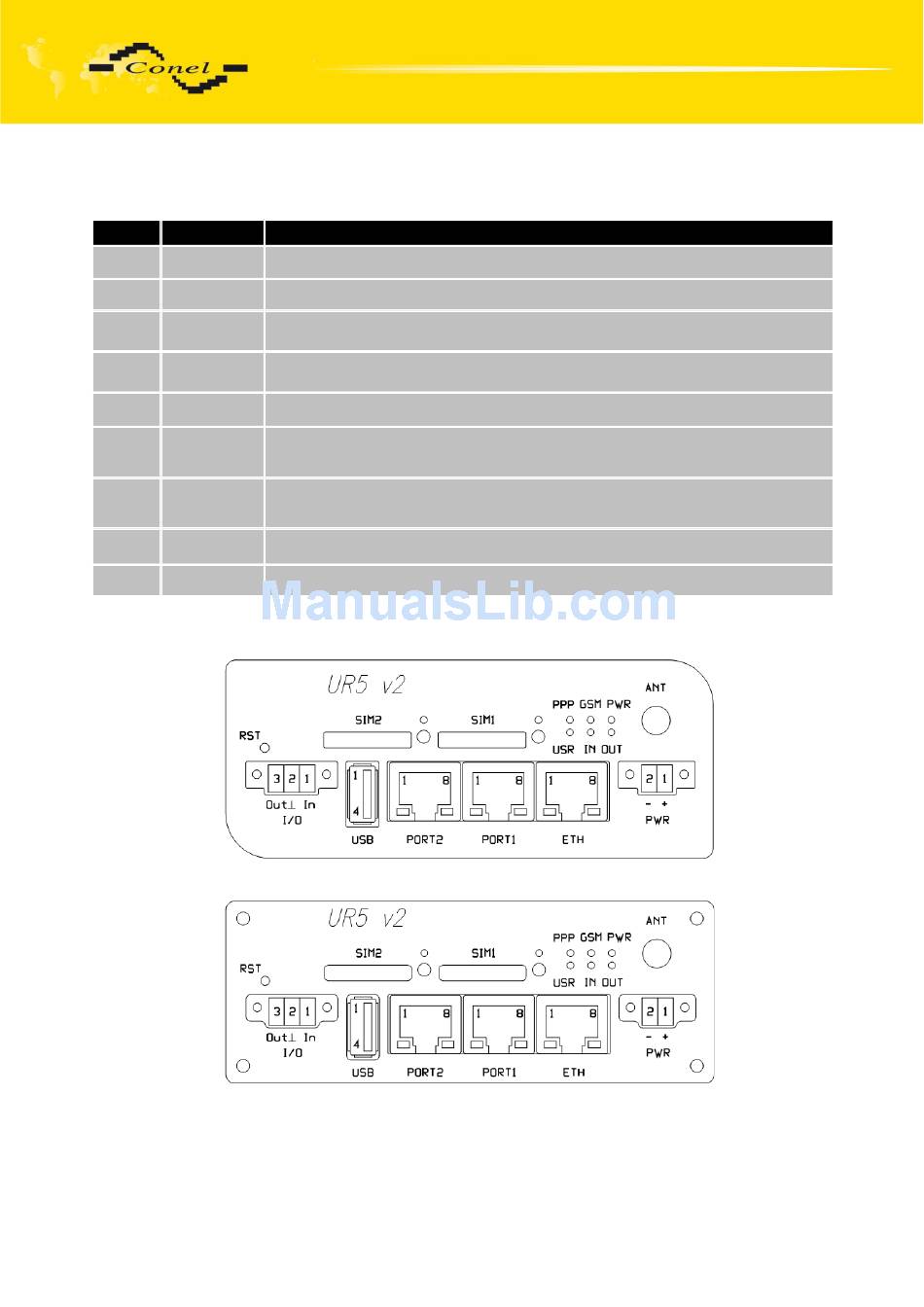

Fig. 16: Front panel UR5 v2F

Fig. 17: Front panel UR5 v2F SL

ROUTER DESCRIPTION
Description
