5.7.3 Ethernet Port ETH

Panel socket RJ45.
Pin Signal mark
1 TXD+
2 TXD-
3 RXD+
4 —
5 —
6 RXD-
7 —
8 —
ATTENTION! ETH port is not POE (Power Over Ethernet) compatible!
Plug Ethernet cable into the RJ45 connector labeled as ETH (see figure below).
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
Description
Transmit Data – positive pole
Transmit Data – negative pole
Receive Data – positive pole
—
—
Receive Data – negative pole
—
—
Table 7: Connection of Ethernet connector

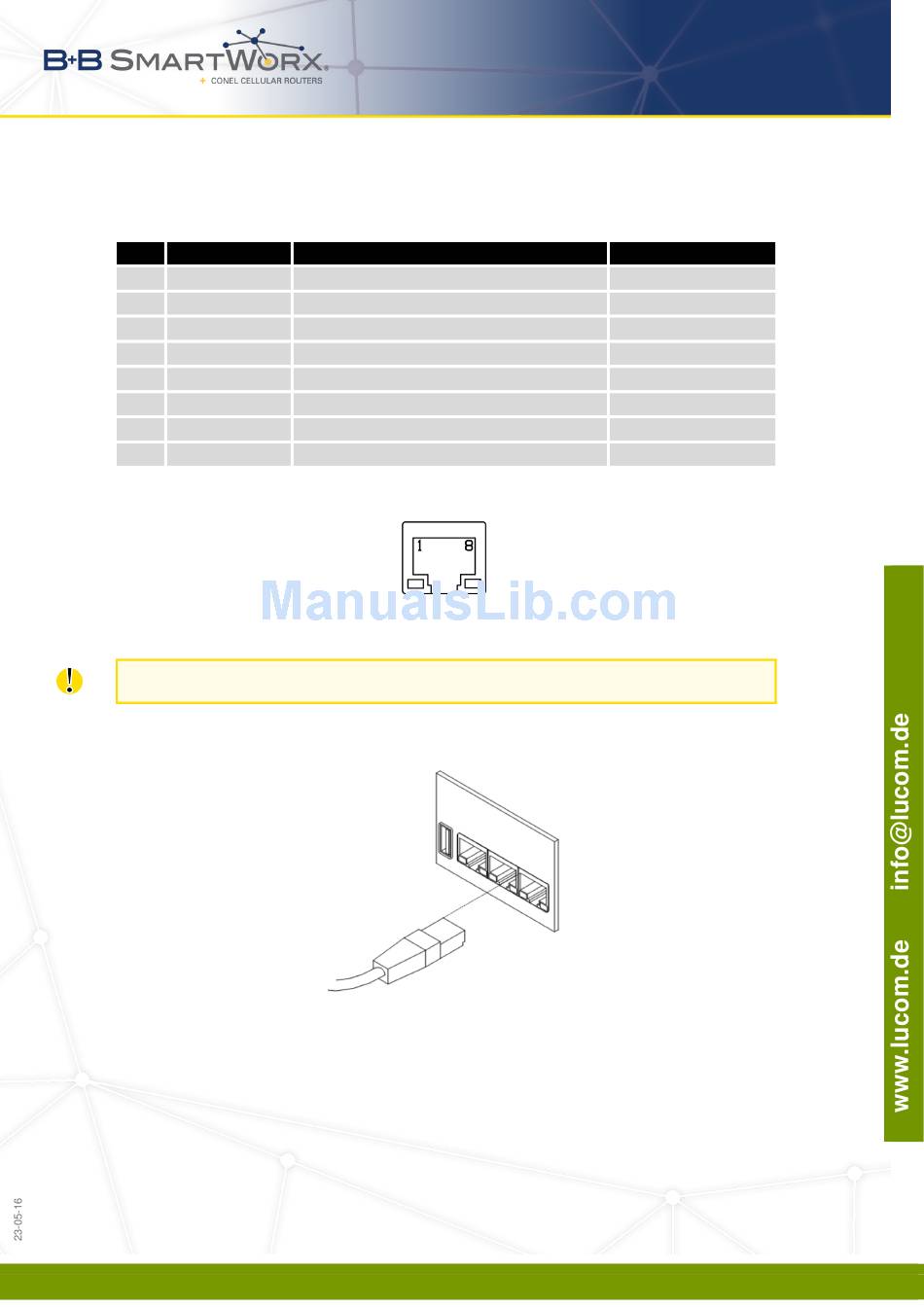

Figure 19: Ethernet connector
Figure 20: Connection of ethernet cable
16
5. ROUTER DESIGN
Data flow direction
Input/Output
Input/Output
Input/Output
Input/Output
