5.7.3. Antenna connector ANT
The antenna is connected to the router using the SMA connector on the front panel.
The router can not operate without the antenna connected labeled as ANT.
Example of antenna:
The antenna with SMA connector. The antenna is connected to screw the antenna
connector SMA to SMA connector on the router head (see figure below).
13
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
ROUTER DESCRIPTION

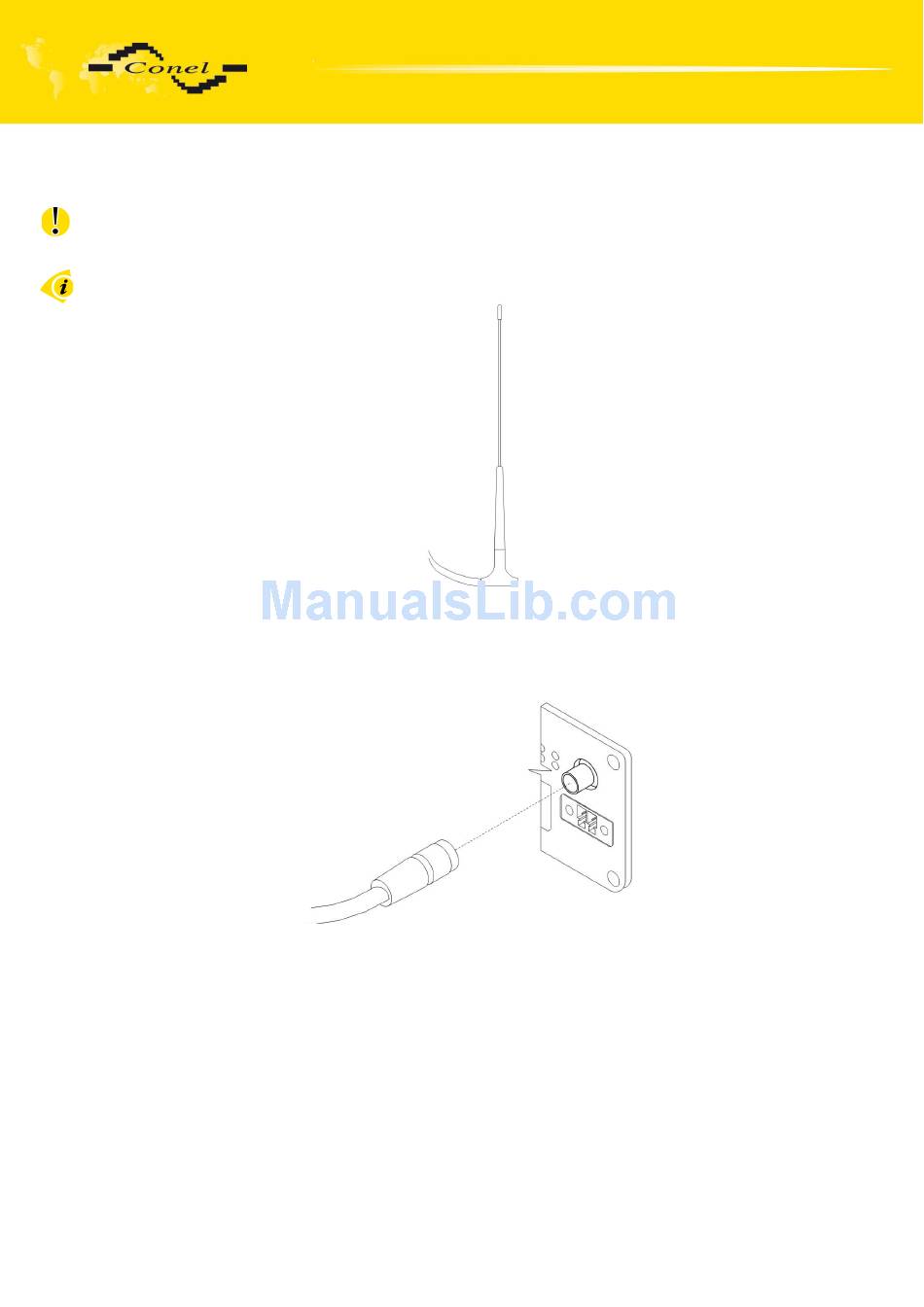

Fig. 21: External antenna
Fig. 22: Connecting the antenna
