5.6. Mechanical external dimensions and mounting recommendations

Mounting recommendations:

•

possibility to be put on a work surface,

•

DIN rail with clips CPD2 (ELPAC clip SL for SL version) are included.

For the most of applications with a built-in router in a switch board it is possible

to recognize two kinds of environments:

•

no public and industry environment of low voltage with high interference,

•

public environment of low voltage without high interference.

For both of these environments it is possible to mount router to a switch board,

the following there is no need to have examination immunity or issues in connection with

EMC according to EN 60439-1 ed.2:00 + A1:04.

For compliance of EN 60439-1 ed.2:00 + A1:04 specification it is necessary

to observe next assembly of the router to the switch - board:

•

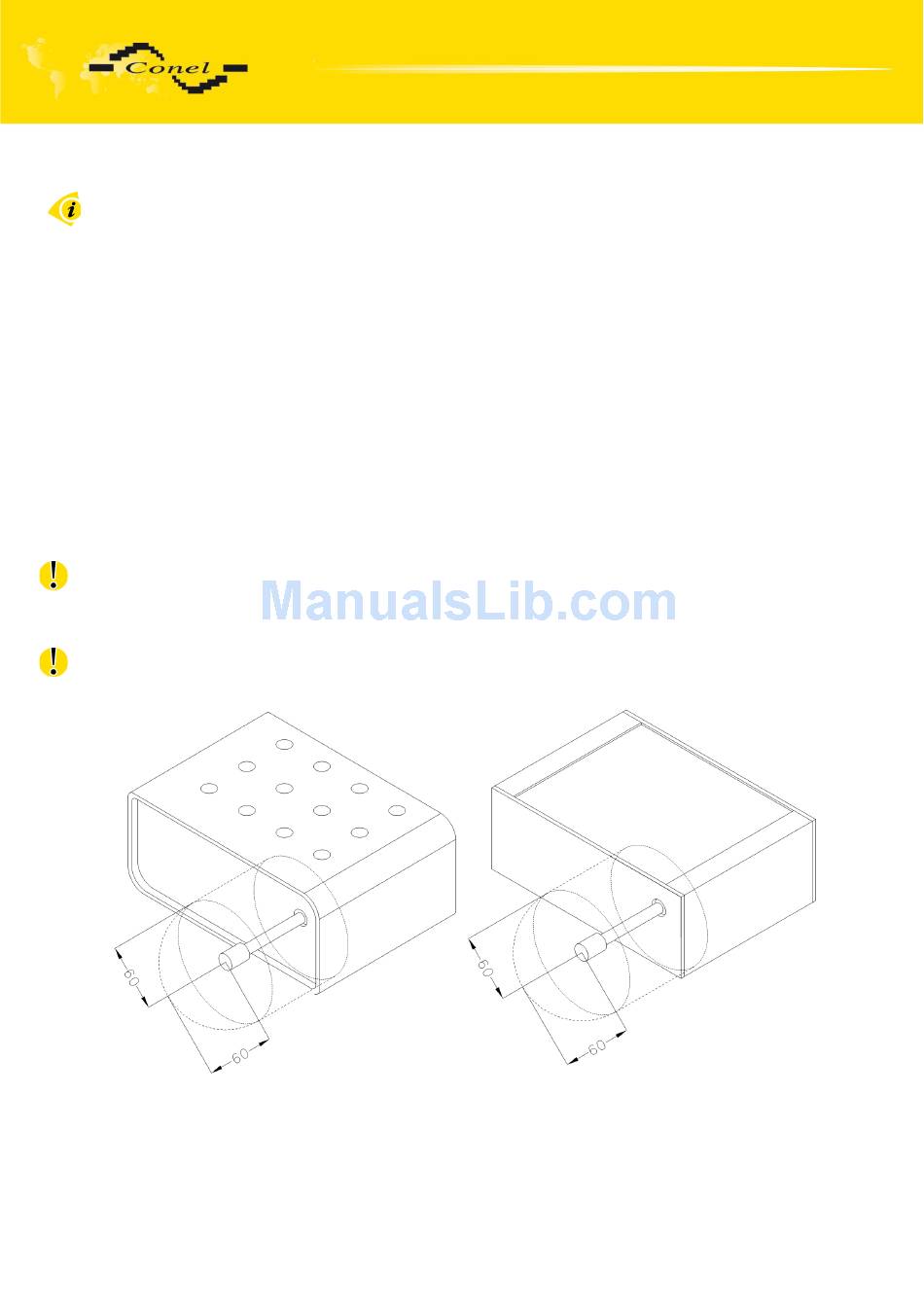

for whip antennas we recommend to observe a distance of 6 cm from cables

and metal surfaces on every side according to the next picture due to the elimination

of interference, while using an external antenna except for the switch-board it is

necessary to fit a lightening conductor,

•

before mounting a router on sheet-steel we recommend using an external antenna,
