5.7.6. PORT1
The PORT1 is equipped with one of the offered options ports. For PORT1 are
available on the interface.
PORT1
RS232, RS485/422, ETHERNET, M-BUS, CNT, XC-SW (together with PORT2)
Description, connection and examples of optional connection ports can be found
in separate manuals expansion ports.
PORT1 cable plug into the RJ45 connector labeled as ETH (see figure bellow).
5.7.7. PORT2
The PORT2 is equipped with one of the offered options ports. For PORT2 are
available on the interface.
PORT2
RS232, RS485/422, M-BUS, XC-SW (together with PORT1), WIFI, WMBUS
PORT2 is fitted only in the FULL version of the router
Description, connection and examples of optional connection ports can be found
in separate manuals expansion ports.
PORT2 cable plug into the RJ45 connector labeled as ETH (see figure bellow).
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
ROUTER DESCRIPTION

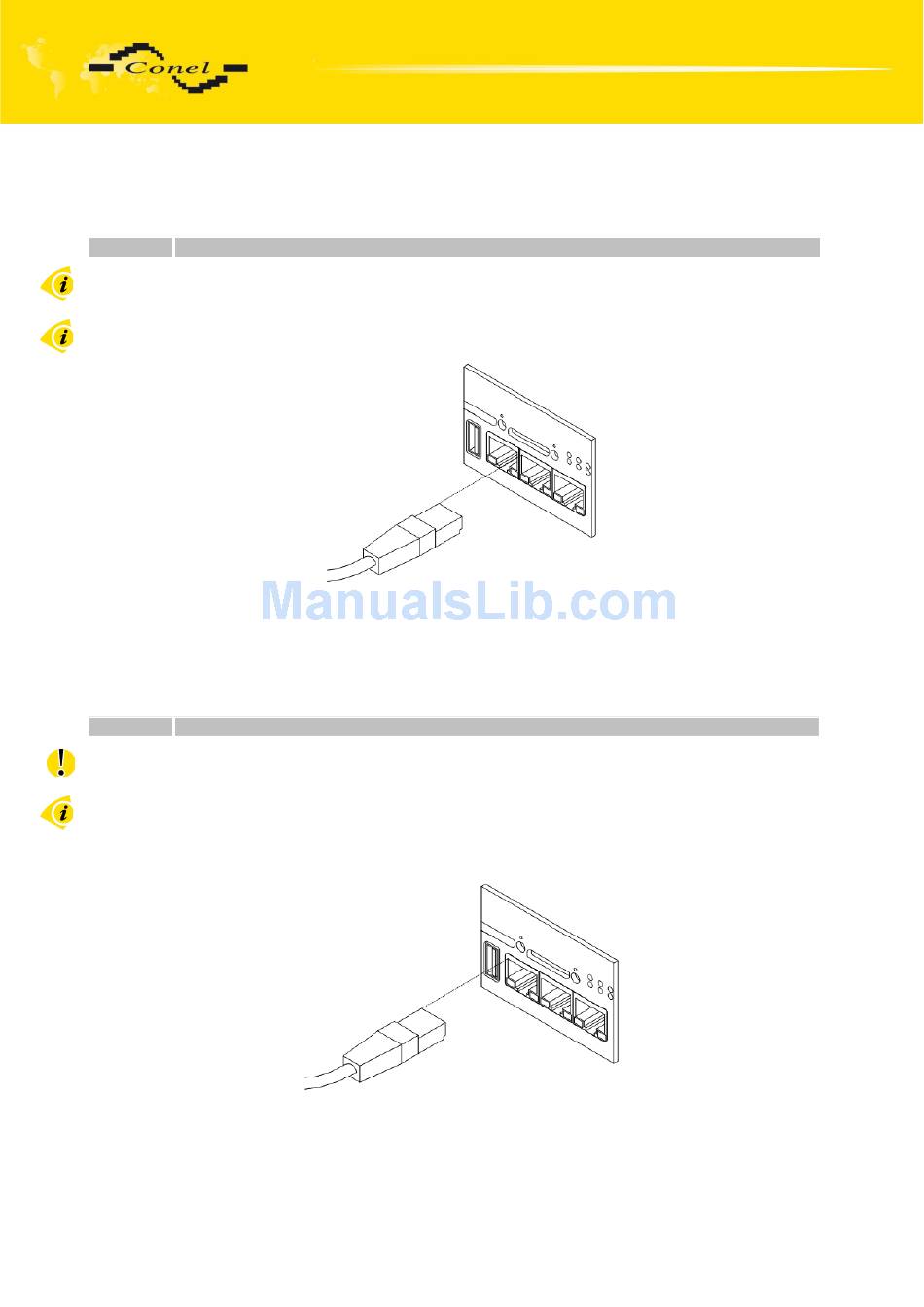

Fig. 27: Connection PORT1 cable
Fig. 28: Connection PORT2 cable
16
