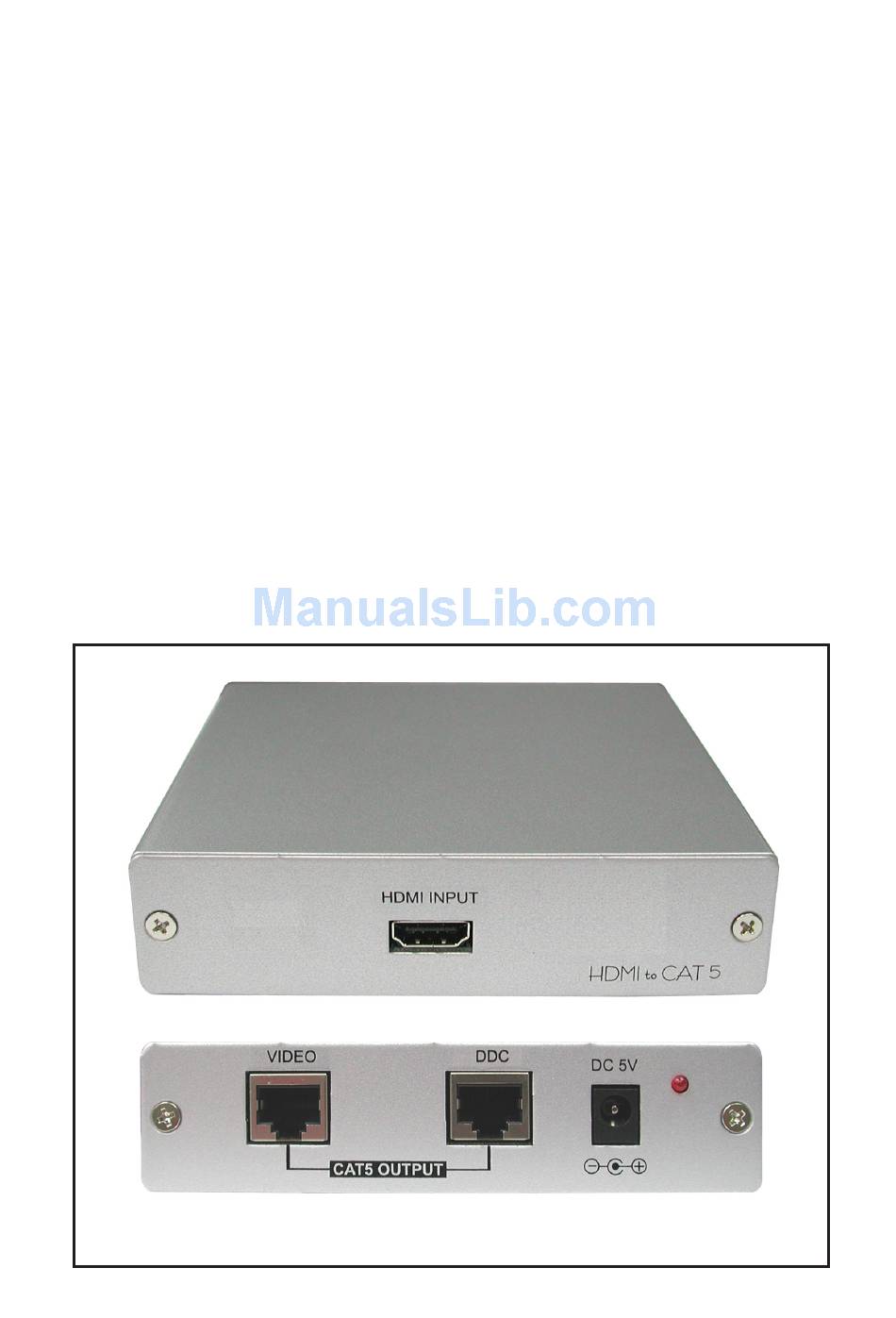

- Page 1 HDMI Over CAT5 Transmitter Operation Manual CA-HDMIAT...
- Page 2 TABLE OF CONTENTS 1. Introduction................1 2. Features..................1 3. Package Contents..............1 4. Operation Controls and Functions........... 2 4.1 Front Panel................2 4.2 Rear Panel................2 5. Specifications................3 6. Connection and Installation............ 4...
-
Page 3: Package Contents

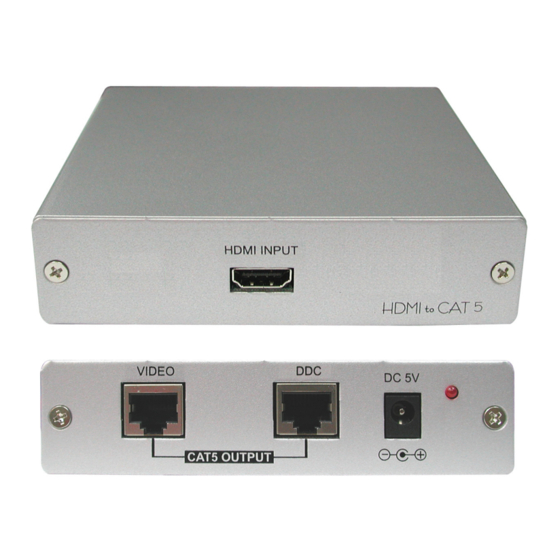

1. Introduction This is the transmitter (Tx) unit of HDMI over CAT5 Tx/Rx solution, depends on the type of receiver (Rx) unit used, this HDMI over CAT5 transmitter can extend HDMI signal through CAT-5 cables for a distance up to 50/100/150/250 meters. The installation of HDMI Over CAT5 is easy and quick, simply place transmitter next to your HDTV source such as a DVD player, then place the receiver unit next to your display, and get all necessary cables connected to complete and... - Page 4 4. Operation Controls and Functions 4.1 Front Panel HDMI INPUT 1 HDMI INPUT: Connect the HDMI input port to the HDMI or DVI output of your source equipment such as DVD player or set-top-box. 4.2 Rear Panel VIDEO DC 5V CAT5 OUTPUT 1 VIDEO OUTPUT: Connect the VIDEO output to the VIDEO input of the receiver unit using...
-
Page 5: Specifications
5. Specifications 1. Supported resolutions: HDMI - 480i/480p, 576i/576p, 720P@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz 2. Input: 1* HDMI female port 3. Output: 1* CAT-5 output for VIDEO, 1* CAT-5 output for DDC 4. Power: 5V / 2.6A DC power supply 5. Dimensions: 123(W) x 125(D) x 30(H)mm 6. -
Page 6: Connection And Installation
6. Connection and Installation DVD Player HDMI HDMI Cable Cable VIDEO (CAT-5 Cable) DDC (CAT-5 Cable) VIDEO DC 5V HDMI INPUT CAT5 OUTPUT Transmitter unit Transmitter unit Front Rear 50 Meters 100 Meters 150 Meters 250 Meters VIDEO DC 5V EQUALIZER GAIN HDMI OUTPUT... - Page 8 Cypress HDMI Over CAT5 Series: Description Product HDMI Over CAT5 Transmitter CA-HDMIAT HDMI Over CAT5 Receiver at 50 meters CA-HDMI 50R HDMI Over CAT5 Receiver at 100 meters CA-HDMI 100R HDMI Over CAT5 Receiver at 150 meters CA-HDMI 150R HDMI Over CAT5 Receiver at 250 meters CA-HDMI 250R CYPRESS TECHNOLOGY CO., LTD.
