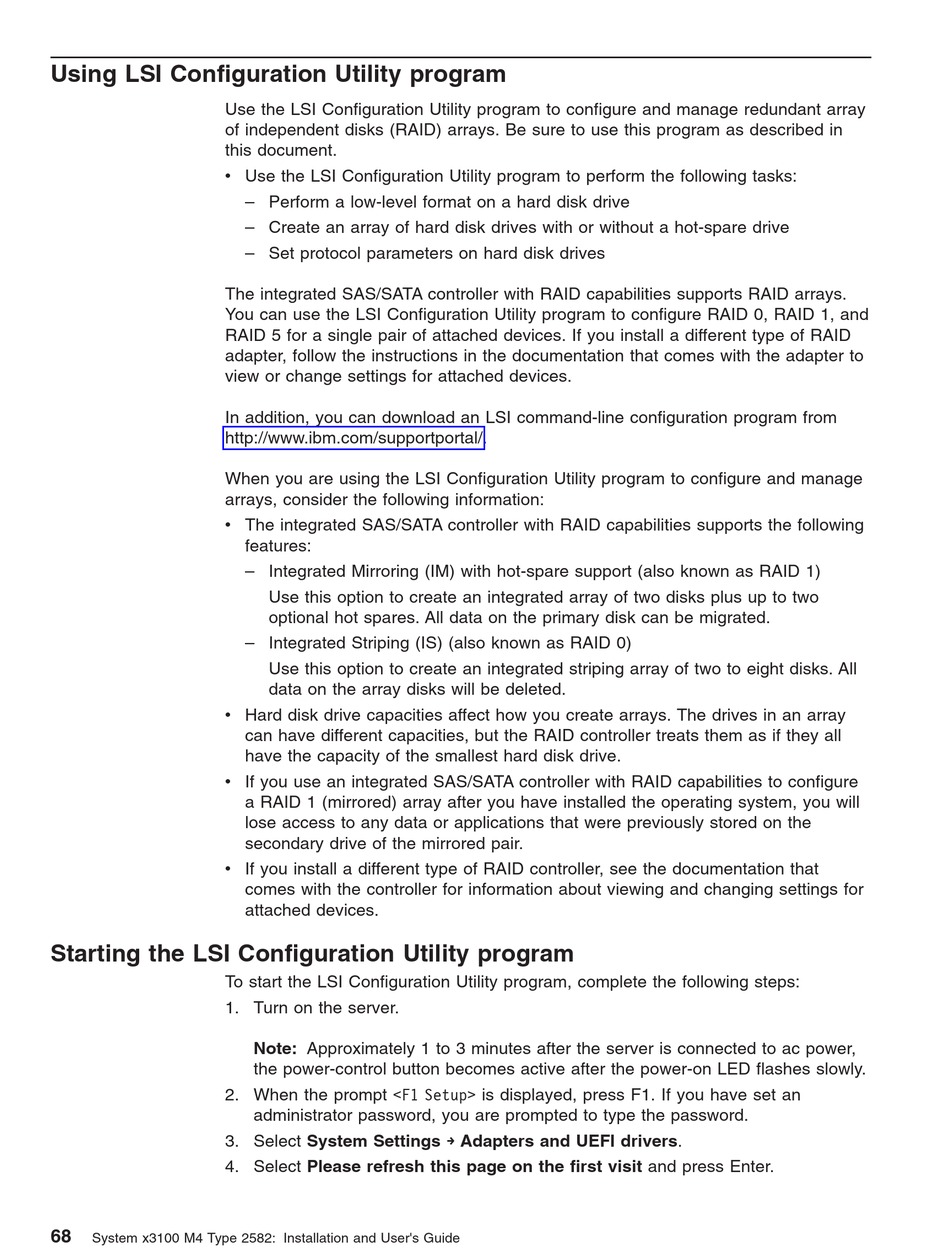

Using LSI Configuration Utility program

Use the LSI Configuration Utility program to configure and manage redundant array
of independent disks (RAID) arrays. Be sure to use this program as described in
this document.
v Use the LSI Configuration Utility program to perform the following tasks:
The integrated SAS/SATA controller with RAID capabilities supports RAID arrays.
You can use the LSI Configuration Utility program to configure RAID 0, RAID 1, and
RAID 5 for a single pair of attached devices. If you install a different type of RAID
adapter, follow the instructions in the documentation that comes with the adapter to
view or change settings for attached devices.
In addition, you can download an LSI command-line configuration program from
http://www.ibm.com/supportportal/.
When you are using the LSI Configuration Utility program to configure and manage
arrays, consider the following information:
v The integrated SAS/SATA controller with RAID capabilities supports the following
v Hard disk drive capacities affect how you create arrays. The drives in an array
v If you use an integrated SAS/SATA controller with RAID capabilities to configure
v If you install a different type of RAID controller, see the documentation that

Starting the LSI Configuration Utility program

To start the LSI Configuration Utility program, complete the following steps:
1. Turn on the server.
2. When the prompt <F1 Setup> is displayed, press F1. If you have set an
3. Select System Settings → Adapters and UEFI drivers.
4. Select Please refresh this page on the first visit and press Enter.
68
System x3100 M4 Type 2582: Installation and User's Guide
– Perform a low-level format on a hard disk drive
– Create an array of hard disk drives with or without a hot-spare drive
– Set protocol parameters on hard disk drives
features:
– Integrated Mirroring (IM) with hot-spare support (also known as RAID 1)
Use this option to create an integrated array of two disks plus up to two
optional hot spares. All data on the primary disk can be migrated.
– Integrated Striping (IS) (also known as RAID 0)
Use this option to create an integrated striping array of two to eight disks. All
data on the array disks will be deleted.
can have different capacities, but the RAID controller treats them as if they all
have the capacity of the smallest hard disk drive.
a RAID 1 (mirrored) array after you have installed the operating system, you will
lose access to any data or applications that were previously stored on the
secondary drive of the mirrored pair.
comes with the controller for information about viewing and changing settings for
attached devices.
Note: Approximately 1 to 3 minutes after the server is connected to ac power,
the power-control button becomes active after the power-on LED flashes slowly.
administrator password, you are prompted to type the password.
