IBM System x3550 M4
IBM Redbooks Product Guide
The IBM® System x3550 M4 server provides outstanding performance for your business-critical
applications. Its energy-efficient design supports more cores, memory, and data capacity in a compact 1U
package that is easy to service and manage. With more computing power per watt and the latest Intel
Xeon processors, you can reduce costs while maintaining speed and availability.
Suggested use: database, virtualization, enterprise applications, collaboration/email, streaming media,
web, HPC, and cloud applications.
Figure 1 shows the IBM System x3550 M4.

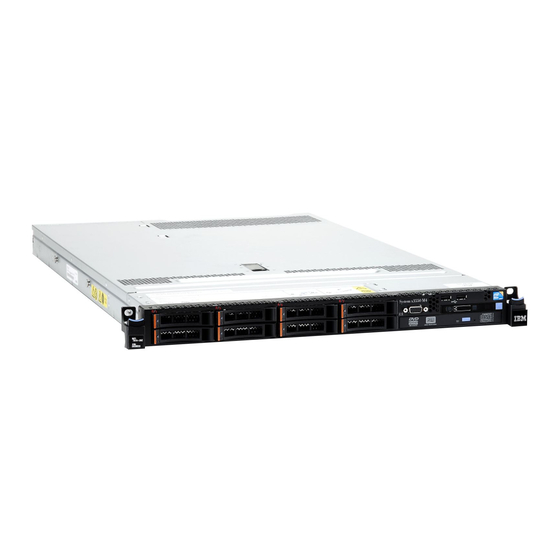

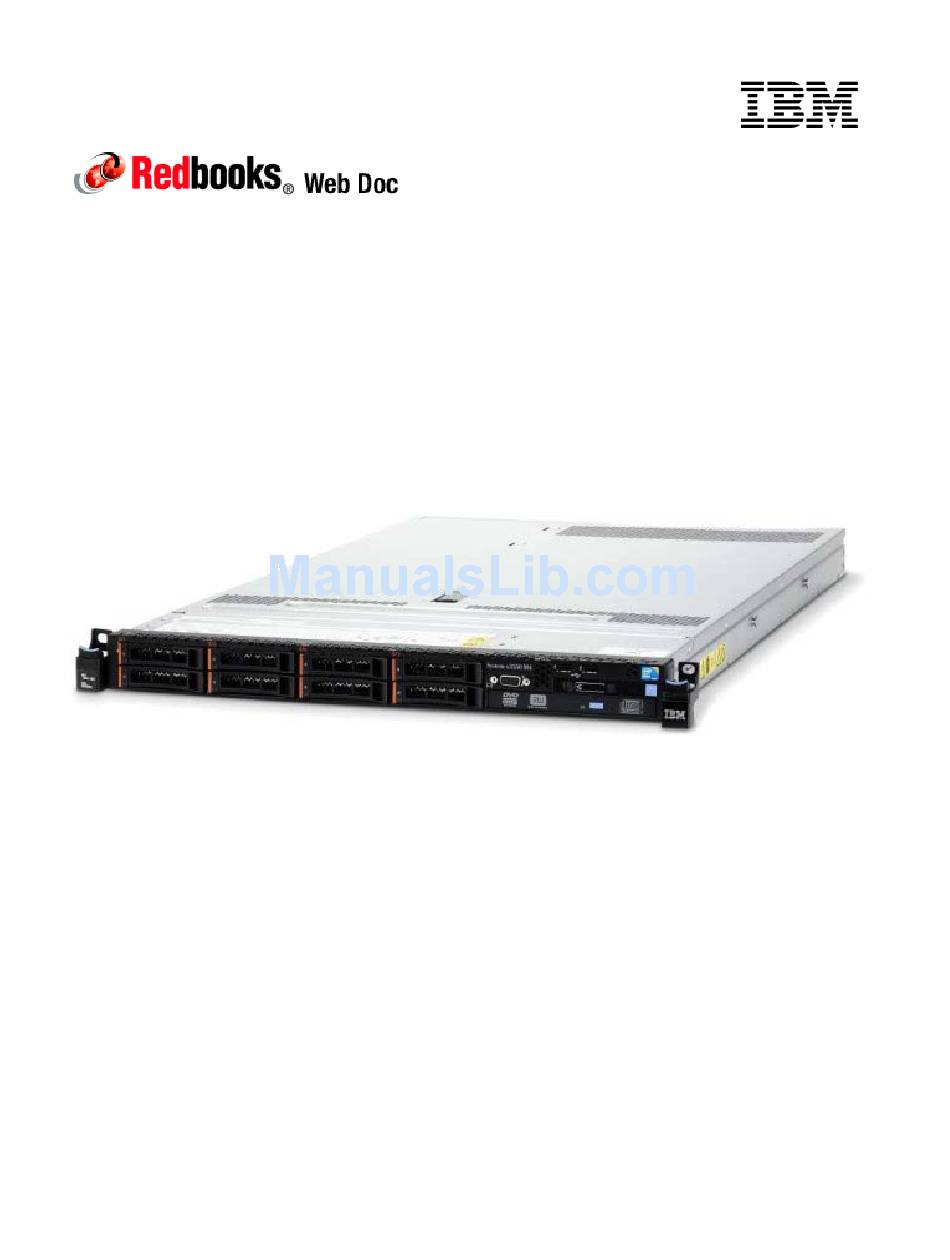

Figure 1. The IBM System x3550 M4
Did you know?
The x3550 M4 offers a flexible, scalable design and a simple upgrade path to eight HDDs plus an optical
drive at the same time, and up to 768 GB of memory. The flexible onboard Ethernet solution provides four
standard integrated Gigabit Ethernet ports and two optional embedded 10 Gb Ethernet ports without
occupying PCIe slots. Comprehensive systems management tools with the next-generation Integrated
Management Module II (IMM2) make it easy to deploy, integrate, service, and manage.
IBM System x3550 M4
1
Advertisement
Table of Contents
Related Manuals for IBM System x3550 M4
Summary of Contents for IBM System x3550 M4
- Page 1 IBM System x3550 M4 IBM Redbooks Product Guide The IBM® System x3550 M4 server provides outstanding performance for your business-critical applications. Its energy-efficient design supports more cores, memory, and data capacity in a compact 1U package that is easy to service and manage. With more computing power per watt and the latest Intel Xeon processors, you can reduce costs while maintaining speed and availability.
-
Page 2: Key Features
60% (8 GT/s per link) compared to the previous generation of PCI Express 2.0. With Intel Integrated I/O Technology, the PCI Express 3.0 controller is integrated into the Intel Xeon processor E5 family. This helps to dramatically reduce I/O latency and increase overall system performance. IBM System x3550 M4... - Page 3 There is industry-standard AES NI support for faster, stronger encryption. IBM Systems Director is included for proactive systems management. It offers comprehensive systems management tools that help to increase uptime, reduce costs and improve productivity through advanced server management capabilities.
-
Page 4: Locations Of Key Components And Connectors
Solid-state drives (SSDs) consume as much as 80% less power than traditional spinning 2.5-inch HDDs. The server uses hexagonal ventilation holes, a part of IBM Calibrated Vectored Cooling™ technology. Hexagonal holes can be grouped more densely than round holes, providing more efficient airflow through the system. - Page 5 Figure 3 shows the rear of the server. Figure 3. Rear view of the IBM System x3550 M4 Figure 4 shows the locations of key components inside the server. Figure 4. Inside view of the IBM System x3550 M4 IBM System x3550 M4...
-
Page 6: Standard Specifications
RJ-45 or SFP+ 10 GbE network ports on rear. One internal USB ports (for embedded hypervisor). Cooling IBM Calibrated Vectored Cooling™ with up to six N+N redundant hot-swap fans (four standard, additional two with second processor); each fan has two motors. Power supply Up to two redundant hot-swap 550 W ac or 750 W ac power supplies (80+ Platinum certification). - Page 7 Service and Optional service upgrades are available through IBM ServicePacs®: 4-hour or 2-hour response support time, 8 hours fix time, one-year or two-year warranty extension, remote technical support for IBM hardware and selected IBM and third-party (Microsoft, Linux, VMware) software. Dimensions Height: 43 mm (1.7 in), width: 429 mm (16.9 in), depth: 734 mm (28.9 in)
-
Page 8: Standard Models
† Processor detail: Processor quantity and model, core speed, number of cores, L3 cache, memory speed. (f) The integrated ServeRAID M5110 RAID controller in this model includes flash-backed cache. Refer to the Specifications section for information about standard features of the server. IBM System x3550 M4... -
Page 9: Processor Options
Intel Xeon Processor E5-2670 8C 2.6GHz 20MB 1600MHz 115W 69Y5680 Intel Xeon Processor E5-2680 8C 2.7GHz 20MB 1600MHz 130W 94Y7545 Intel Xeon Processor E5-2690 8C 2.9GHz 20MB 1600MHz 135W *Note: The option for the second processor includes two additional system fans. IBM System x3550 M4... -
Page 10: Memory Options
IBM system warranty, and IBM provides service and support worldwide. The IBM System x3550 M4 supports DDR3 memory. The server supports up to 12 DIMMs when one processor is installed, and up to 24 DIMMs when two processors are installed. Each processor has four memory channels, and there are three DIMMs per channel. - Page 11 16 GB (1x 16 GB, 2Rx4, 1.35 V) PC3L-10600 CL9 ECC DDR3 24 (12 per 1333 MHz LP RDIMM CPU) LRDIMMs 90Y3105 32 GB (1x 32 GB, 4Rx4, 1.35 V) PC3L-10600 CL9 ECC DDR3 24 (12 per 1333 MHz LP LRDIMM CPU) IBM System x3550 M4...
-
Page 12: Internal Disk Storage Options
Internal disk storage options IBM System x3550 M4 server supports the following internal storage configurations: Eight 2.5" Slim-SFF SAS/SATA hot-swap hard drive bays Four 2.5" Slim-SFF SAS/SATA hot-swap hard drive bays Three 3.5" hot-swap SAS/SATA hard drive bays Three 3.5" Simple Swap SATA hard drive bays (only available in CTO) Figure 5 shows the first three of these configurations. - Page 13 Part Description Standard models where used number quantity supported 81Y4492 ServeRAID H1110 SAS/SATA Controller for IBM System x 1 A2x, C4x 81Y4448 ServeRAID M1115 SAS/SATA Controller for IBM System B2x, C2x 81Y4542 ServeRAID M1100 Series Zero Cache/RAID 5 Upgrade for IBM System x...
- Page 14 Supports RAID 6 and 60 with the optional M5100 Series RAID 6 Upgrade Supports 512 MB battery-backed cache or 512 MB or 1 TB flash-backed cache 6 Gbps throughput per port PCIe x8 Gen 3 host interface Based on the LSI SAS2208 6 Gbps ROC controller IBM System x3550 M4...
- Page 15 Maximum quantity supported 2.5" NL SATA Hot-Swap HDDs 81Y9722 IBM 250GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD 81Y9726 IBM 500GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD 81Y9730 IBM 1TB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD 2.5"...
-
Page 16: Internal Backup Units
DVD-RW (4.7 GB) 4X DVD+RW 4X DVD-RAM (4.7/9.4 GB) 4X IBM UltraSlim Enhanced SATA Multi-Burner (46M0902) supports the same media and speeds for reading as DVD-ROM (46M0901). This drive also supports the following media and speeds for writing: CD-R 24X... -
Page 17: I/O Expansion Options
Description Maximum quantity supported 69Y5670 x3550 M4 PCIe Gen-III Riser Card (1 x8 FH/HL Slot) 69Y5671 x3550 M4 PCIe Gen-III Riser Card (1 x16 FH/HL Slot) 69Y5669 x3550 M4 PCI-X Riser Card (1 PCIX FH/HL Slot) IBM System x3550 M4... -
Page 18: Network Adapters
10 Gb Ethernet (Mezzanine Card - does not consume a PCI expansion slot) 90Y6456 Emulex Dual Port 10GbE SFP+ Embedded VFA III for IBM System x 10 Gb Ethernet 49Y7910 Broadcom NetXtreme II Dual Port 10GBase-T Adapter for IBM System x 2... -
Page 19: Storage Host Bus Adapters
Brocade 4 Gb FC Single-port HBA for IBM System x 59Y1993 Brocade 4 Gb FC Dual-port HBA for IBM System x 39R6525 QLogic 4 Gb FC Single-Port PCIe HBA for IBM System x 39R6527 QLogic 4 Gb FC Dual-Port PCIe HBA for IBM System x 42C2069... -
Page 20: Integrated Virtualization
Simple Network Management Protocol (SNMP) Version 3 Common Information Model (CIM) Web browser The optional IBM Integrated Management Module Advanced Upgrade is required to enable the remote presence and blue-screen capture features. The remote presence feature provides the following functions:... - Page 21 SUSE LINUX Enterprise Server 11 for x86 SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T VMware vSphere 5 See the IBM ServerProven® website for the latest information about the specific versions and service levels supported and any other prerequisites: http://www.ibm.com/systems/info/x86servers/serverproven/compat/us/nos/matrix.shtml...
- Page 22 200 to 240 (nominal) V ac; 50 Hz or 60 Hz; 3.3 A Input kilovolt-amperes (kVA) (approximately): Minimum configuration: 0.12 kVA Maximum configuration: 0.66 kVA BTU output Minimum configuration: 406 Btu/hr (119 watts) Maximum configuration: 2900 Btu/hr (850 watts) Noise level 6.5 bels (operating) 6.3 bels (idle) IBM System x3550 M4...
-
Page 23: Warranty Options
Warranty options The IBM System x3550 M4 has a three-year onsite warranty with 9x5/next business day terms. IBM offers the warranty service upgrades through IBM ServicePacs, discussed in this section. The IBM ServicePac is a series of prepackaged warranty maintenance upgrades and post-warranty maintenance agreements with a well-defined scope of services, including service hours, response time, term of service, and service agreement terms and conditions. -
Page 24: Regulatory Compliance
Table 17 lists the external storage systems that are supported by x3550 M4 and can be ordered through System x sales channel. The server may support other IBM disk systems that are not listed in this table. Refer to IBM System Storage Interoperability Center for further information. -
Page 25: External Backup Units
SAS Enclosure Adapter Kit Internal backup drives supported by external tape enclosures 46C5364 IBM RDX Removable Hard Disk Storage System - Internal USB 160 GB Bundle 46C5387 IBM RDX Removable Hard Disk Storage System - Internal USB 320 GB Bundle... - Page 26 LTO Ultrium 3 Half High SAS DriveV2 Sled * Note: The external tape drives listed can be ordered through the IBM System x sales channel. The server may support other IBM tape drives that are not listed in this table. Refer to the IBM System Storage Interoperability Center for further information.
-
Page 27: Top-Of-Rack Ethernet Switches
Top-of-rack Ethernet switches The server supports the top-of-rack Ethernet switches from IBM System Networking listed in the following table. Table 19. IBM System Networking - Top-of-rack switches Part number Description IBM System Networking - 1 Gb top-of-rack switches 0446013 IBM System Networking RackSwitch G8000R... -
Page 28: Uninterruptible Power Supply Units
IBM 6000VA LCD 4U Rack UPS (230 V) 53959KX IBM 11000VA LCD 5U Rack UPS (200V/208V/230V) For more information, see the following at-a-glance guides: IBM 3000VA LCD 3U Rack Uninterruptible Power Supply for IBM System x at-a-glance guide http://www.redbooks.ibm.com/abstracts/tips0782.html?Open IBM 6000VA LCD 4U Rack UPS at-a-glance guide http://www.redbooks.ibm.com/abstracts/tips0793.html?Open... -
Page 29: Power Distribution Units
Switched and Monitored PDUs 46M4002 IBM 1U 9 C19/3 C13 Active Energy Manager DPI® PDU 46M4003 IBM 1U 9 C19/3 C13 Active Energy Manager 60A 3 Phase PDU 46M4004 IBM 1U 12 C13 Active Energy Manager DPI PDU 46M4005 IBM 1U 12 C13 Active Energy Manager 60A 3 Phase PDU... - Page 30 IBM 0U 24 C13 30A PDU 46M4131 IBM 0U 24 C13 32A PDU 46M4140 IBM 0U 12 C19/12 C13 60A 3 Phase PDU 46M4143 IBM 0U 12 C19/12 C13 32A 3 Phase PDU IBM 1U Switched and Monitored Power Distribution Units...
-
Page 31: Rack Cabinets
IBM 42U Standard Rack Extension 93084EX IBM 42U Enterprise Expansion Rack 93084PX IBM 42U Enterprise Rack 93604EX IBM 42U 1200 mm Deep Dynamic Expansion Rack 93604PX IBM 42U 1200 mm Deep Dynamic Rack 93614EX IBM 42U 1200 mm Deep Static Expansion Rack 93614PX... -
Page 32: Rack Options
46M5383 IBM Virtual Media Conversion Option Gen2 (VCO2) 46M5382 IBM Serial Conversion Option (SCO) For more information, see the following IBM Redbooks publications at-a-glance guides: IBM 1754 LCM8 and LCM16 Local Console Managers at-a-glance guide http://www.redbooks.ibm.com/abstracts/tips0788.html?Open IBM GCM16 and GCM32 Global Console Managers at-a-glance guide http://www.redbooks.ibm.com/abstracts/tips0772.html?Open... -
Page 33: Related Publications And Links
IBM System x 3550 M4 Problem Determination and Service Guide http://ibm.com/support ServerProven hardware compatibility page for the x3550 M4 http://www.ibm.com/systems/info/x86servers/serverproven/compat/us/xseries/7914.html IBM Redbooks Product Guides for IBM System x servers and options http://www.redbooks.ibm.com/portals/systemx?Open&page=pgbycat IBM System x DDR3 Memory Configurator http://www.ibm.com/systems/x/hardware/ddr3config/ Configuration and Option Guide http://www.ibm.com/systems/xbc/cog/... - Page 34 Web sites. The materials at those Web sites are not part of the materials for this IBM product and use of those Web sites is at your own risk.IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.
- Page 35 Intel Xeon, Intel, Intel logo, Intel Inside logo, and Intel Centrino logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. LTO, Ultrium, the LTO Logo and the Ultrium logo are trademarks of HP, IBM Corp. and Quantum in the U.S. and other countries.
