Important:
1. Before you change any switch settings or move any jumpers, turn off the server;
2. Any system-board switch or jumper blocks that are not shown in the illustrations

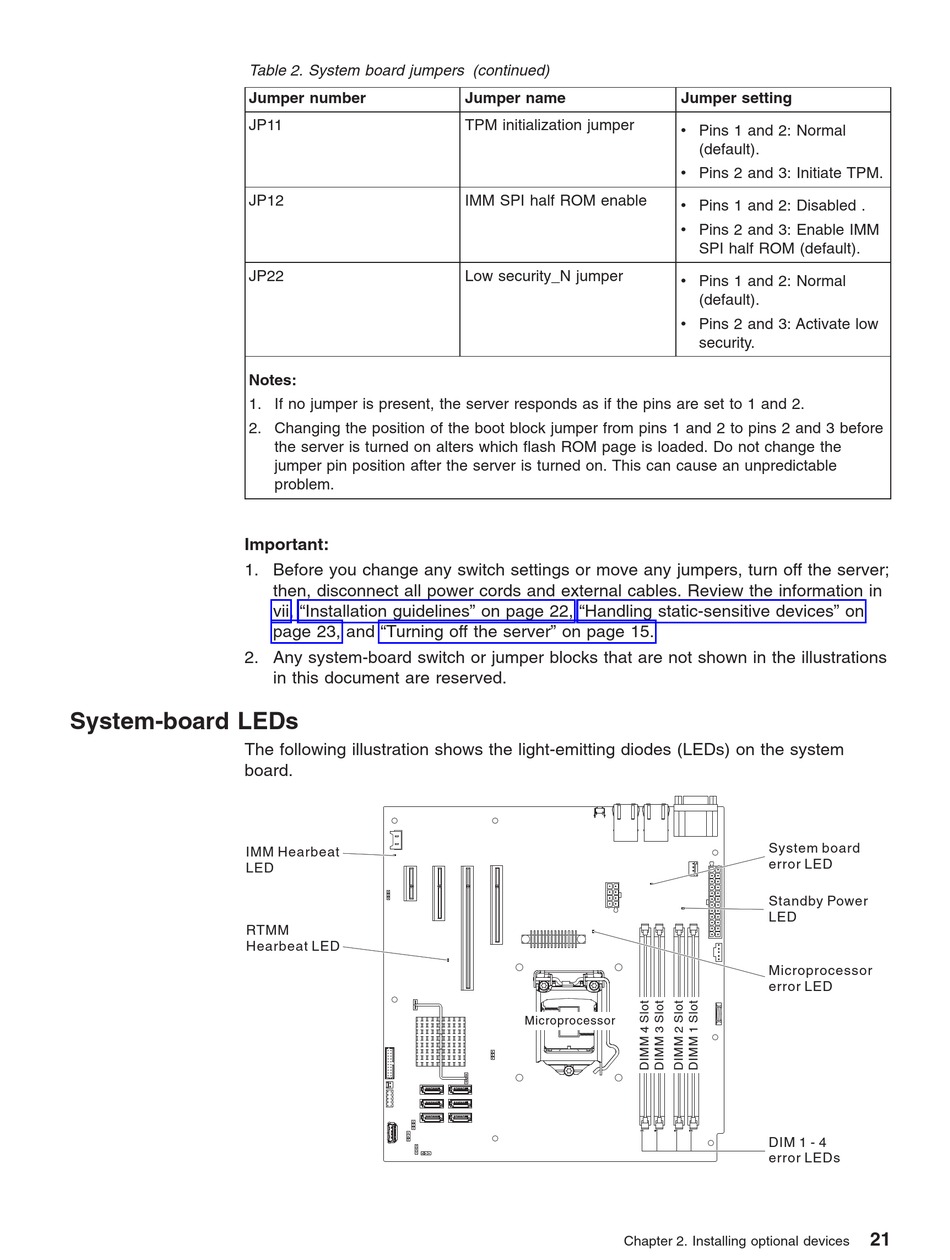

System-board LEDs

The following illustration shows the light-emitting diodes (LEDs) on the system
board.
IMM Hearbeat
LED
RTMM
Hearbeat LED
Table 2. System board jumpers (continued)
Jumper number
JP11
JP12
JP22
Notes:
1. If no jumper is present, the server responds as if the pins are set to 1 and 2.
2. Changing the position of the boot block jumper from pins 1 and 2 to pins 2 and 3 before
the server is turned on alters which flash ROM page is loaded. Do not change the
jumper pin position after the server is turned on. This can cause an unpredictable
problem.
then, disconnect all power cords and external cables. Review the information in
vii, "Installation guidelines" on page 22, "Handling static-sensitive devices" on
page 23, and "Turning off the server" on page 15.
in this document are reserved.
Jumper name
TPM initialization jumper
IMM SPI half ROM enable
Low security_N jumper
Microprocessor
Chapter 2. Installing optional devices
Jumper setting
v Pins 1 and 2: Normal
(default).
v Pins 2 and 3: Initiate TPM.
v Pins 1 and 2: Disabled .
v Pins 2 and 3: Enable IMM
SPI half ROM (default).
v Pins 1 and 2: Normal
(default).
v Pins 2 and 3: Activate low
security.
System board
error LED
Standby Power
LED
Microprocessor
error LED
DIM 1 - 4
error LEDs
21
