IBM System x3530 M4 (E5-2400)
IBM Redbooks Product Guide
The IBM® System x3530 M4 server delivers dual-socket performance in a 1U compact footprint.
Featuring the Intel Romley EN platform, the x3530 M4 is a flexible rack server positioned as a good
investment value, while considering your total cost of ownership (TCO) and IBM commitment. It is
designed to provide more affordable value and increased flexibility with performance and quality to match.
Designed with redundancy, flexible subsystems, and a wider range of configuration options, the x3530 M4
also offers an innovative Feature on Demand (FoD) design for an easier upgrade path.
Suggested use : Business infrastructure, light databases, entry virtualization, enterprise applications, web
serving, small HPC, and cloud applications.

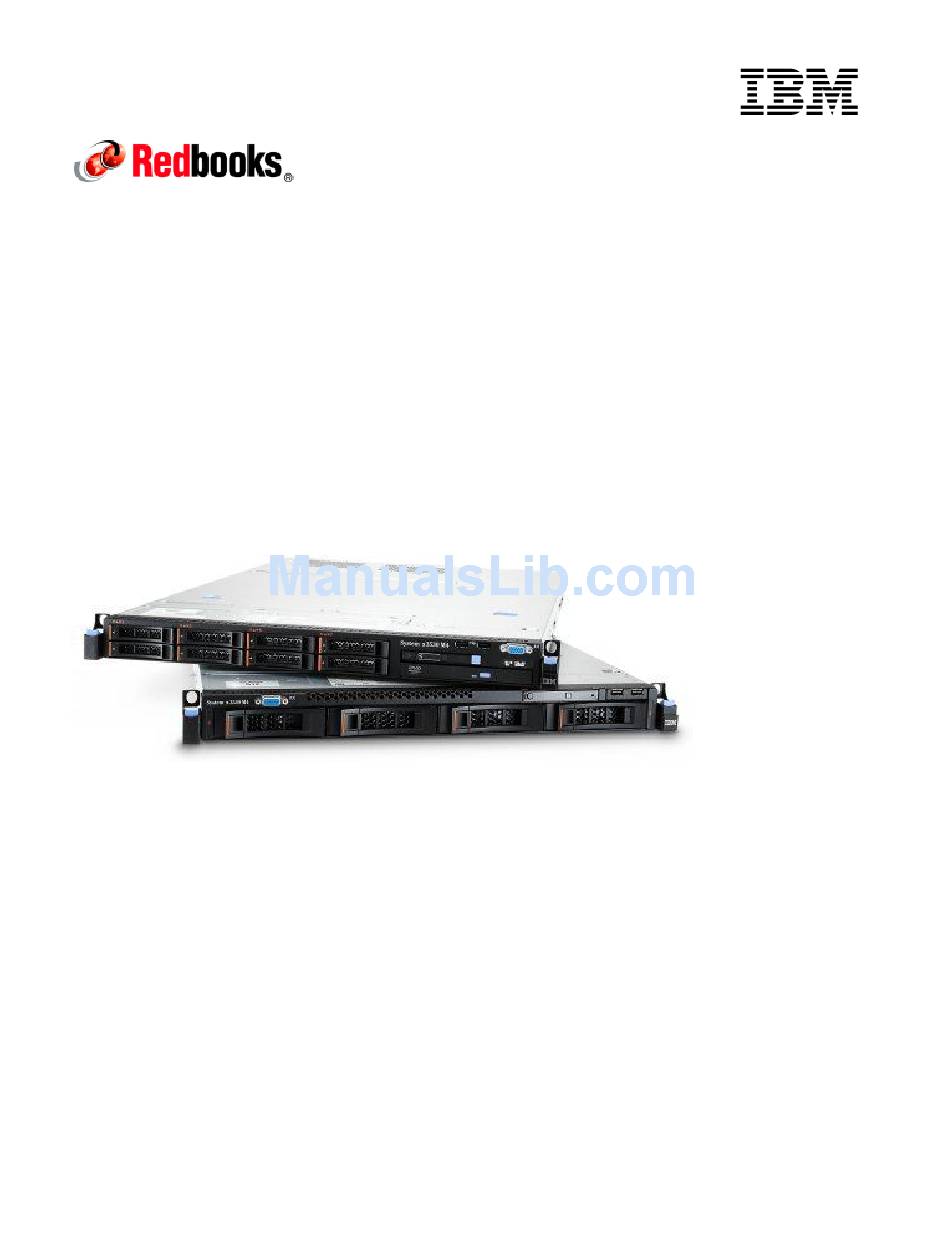

The following figure shows the IBM System x3530 M4.

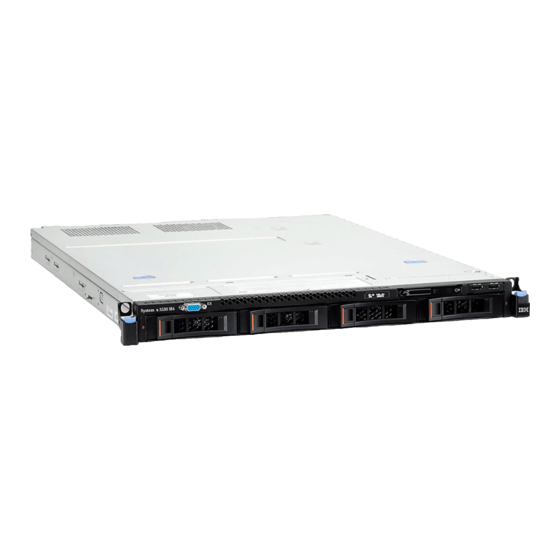

Figure 1. The IBM System x3530 M4
Did you know
The x3530 M4 offers a flexible and scalable design and a simple upgrade path to eight HDDs plus an
optical drive at the same time. The flexible onboard Ethernet solution provides two standard integrated
Gigabit Ethernet ports and two additional integrated Gigabit Ethernet ports with an optional software
feature for an on-demand upgrade without needing to buy additional hardware. Comprehensive systems
management tools with the next-generation Integrated Management Module II (IMM2) make it easy to
deploy, integrate, service, and manage.
IBM System x3530 M4 (E5-2400)
1
Advertisement
Table of Contents
Related Manuals for IBM System x3530 M4
Summary of Contents for IBM System x3530 M4
- Page 1 IBM System x3530 M4 (E5-2400) IBM Redbooks Product Guide The IBM® System x3530 M4 server delivers dual-socket performance in a 1U compact footprint. Featuring the Intel Romley EN platform, the x3530 M4 is a flexible rack server positioned as a good investment value, while considering your total cost of ownership (TCO) and IBM commitment.
-
Page 2: Key Features
Tool-less cover removal provides easy access to upgrades and serviceable parts, such as processor, memory, and adapter cards. The server offers simple-swap or hot-swap drives supporting affordable software RAID and advanced hardware RAID redundancy for data protection and greater system uptime. IBM System x3530 M4 (E5-2400) - Page 3 Industry-standard AES NI support provides faster and stronger encryption. IBM Systems Director is included for proactive systems management. It offers comprehensive systems management tools that increase uptime, reduce costs, and improve productivity through advanced server management capabilities.
-
Page 4: Locations Of Key Components And Connectors
The following figure shows the front of the server with four 3.5-inch hot-swap drive bays (models with 3.5-inch simple-swap bays are also available). Figure 2. Front view of the IBM System x3530 M4 with four 3.5-inch hot-swap drive bays The following figure shows the front of the server with eight 2.5-inch hot-swap drive bays (models with 2.5-inch simple-swap bays are also available). - Page 5 The following figures shows the rear of the server with hot-swap power supplies. Figure 4. Rear view of the IBM System x3530 M4 with hot-swap power supplies The following figure shows the rear of the server with fixed power supply.
- Page 6 The following figure shows the locations of key components inside the server. Figure 6. Inside view of the IBM System x3530 M4 IBM System x3530 M4 (E5-2400)
-
Page 7: Standard Specifications
GbE network ports on the rear. One internal USB port (for embedded hypervisor). Cooling IBM Calibrated Vectored Cooling with up to six redundant non-hot-swap fans (four standard, additional two with second processor). Each fan has two motors. IBM System x3530 M4 (E5-2400) - Page 8 Hot-swap parts Hard drives (model dependent) and power supplies (model dependent). Systems UEFI, IBM Integrated Management Module II (IMM2), Predictive Failure Analysis, light path management diagnostics (basic standard, advanced optional), Automatic Server Restart, IBM Systems Director and IBM Systems Director Active Energy Manager, and IBM ServerGuide. Optional IMM Advanced FoD Upgrade for remote presence (graphics, keyboard and mouse, virtual media).
-
Page 9: Standard Models
* x in the Machine Type Model (MTM) represents a country-specific letter (for example, the EMEA MTM is 7160-A1G, and the US MTM is 7160-A1U). Ask your local IBM representative for specifics. † Processor detail: Processor quantity and model, number of cores, core speed, L3 cache, memory speed, TDP. -
Page 10: Express Models
§ For models E1G and EAU, the standard DIMM is rated at 1333 MHz, but operates at up to 1066 MHz to match the processor memory speed. Actual memory speed maximums depend on several factors, as described in "Memory options". ‡ These models are not available in Russia/Commonwealth of Independent States (R/CIS). IBM System x3530 M4 (E5-2400) -
Page 11: Processor Options
Intel Xeon Processor E5-1410 4C 2.8GHz 10MB Cache 1333MHz 80W * The option for the second processor includes two additional system fans. ** These processors only support single processor configurations and are available only through CTO or special bid. IBM System x3530 M4 (E5-2400) -
Page 12: Memory Options
IBM system warranty, and IBM provides service and support worldwide. The IBM System x3530 M4 (E5-2400) supports DDR3 memory. The server supports up to six DIMMs when one processor is installed, and up to 12 DIMMs when two processors are installed. Each processor has three memory channels, and there are two DIMMs per channel. - Page 13 * Maximum quantity supported is shown for two processors installed. When one processor is installed, the maximum quantity supported is a half of what is shown. ** Rated speed is not supported. Memory DIMMs always operate at speeds lower than rated. IBM System x3530 M4 (E5-2400)
- Page 14 49Y1563 A1QT 16GB (1x16GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC 12 (6 per DDR3 1333MHz LP RDIMM processor) LRDIMMs 90Y3105 A291 32GB (1x32GB, 4Rx4, 1.35V) PC3L-10600 CL9 ECC 12 (6 per DDR3 1333MHz LP LRDIMM processor) IBM System x3530 M4 (E5-2400)
-
Page 15: Internal Disk Storage Options
Internal disk storage options IBM System x3530 M4 server supports the following internal storage configurations: Four 2.5-inch Slim-SFF SAS/SATA hot-swap drive bays Eight 2.5-inch Slim-SFF SAS/SATA hot-swap drive bays Eight 2.5-inch SAS/SATA simple-swap drive bays Four 3.5-inch SAS/SATA hot-swap drive bays ... -
Page 16: Raid Controllers
ServeRAID M5100 Series 1GB Flash/RAID 5 Upgrade F2x, H2x, 81Y4508 A22E ServeRAID M5100 Series Battery Kit for IBM System x 81Y4546 A1X3 ServeRAID M5100 Series RAID 6 Upgrade for IBM System x 1† 90Y4273 A2MC ServeRAID M5100 Series Performance Accelerator for IBM System x 90Y4318... - Page 17 Based on the LSI SAS2004 6 Gbps RAID on Chip (ROC) controller PCIe 2.0 x4 host interface Supports RAID 0, 1, 1E, and 10 Connects to up to four SAS or SATA drives (SAS expanders are not supported.) IBM System x3530 M4 (E5-2400)
- Page 18 Up to 6 Gbps throughput per port PCIe 2.0 x8 host interface Based on the LSI SAS2008 6 Gbps ROC controller For more information, see the list of IBM Redbooks Product Guides in the RAID adapters category: http://www.redbooks.ibm.com/portals/systemx?Open&page=pg&cat=raid IBM System x3530 M4 (E5-2400)
- Page 19 Maximum number code supported 2.5-inch NL SAS Hot-Swap HDDs 90Y8953 A2XE IBM 500GB 7.2K 6Gbps NL SAS 2.5" SFF G2HS HDD 81Y9690 A1P3 IBM 1TB 7.2K 6Gbps NL SAS 2.5" SFF HS HDD 2.5-inch NL SATA Hot-Swap HDDs 81Y9722 A1NX IBM 250GB 7.2K 6Gbps NL SATA 2.5"...
- Page 20 2.5-inch SAS Simple-Swap HDDs 90Y8935 A2ZG IBM 146GB 15K 6Gbps SAS 2.5" SFF G2SS HDD 90Y8895 A2ZH IBM 300GB 10K 6Gbps SAS 2.5" SFF G2SS HDD 81Y9674 A24J IBM 300GB 15K 6Gbps SAS 2.5" SFF SS HDD...
- Page 21 S3700 400GB SATA 2.5" MLC SS Enterprise SSD 41Y8361 A4FR S3700 800GB SATA 2.5" MLC SS Enterprise SSD 49Y5849 A3AT IBM 64GB SATA 2.5" MLC SS Enterprise Value SSD 49Y5854 A3AV IBM 512GB SATA 2.5" MLC SS Enterprise Value SSD 2.5-inch SAS Simple-Swap Enterprise SSDs 49Y6144 A3EX IBM 200GB SAS 2.5"...
-
Page 22: Internal Backup Units
3.5-inch NL SATA Hot-Swap HDDs 81Y9786 A22Y IBM 500GB 7.2K 6Gbps NL SATA 3.5" G2HS HDD 81Y9790 A22P IBM 1TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD 81Y9794 A22T IBM 2TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD... -
Page 23: Optical Drives
DVD+RW (4.7 GB) 8X DVD-RAM (4.7 GB) 5X IBM UltraSlim Enhanced SATA Multi-Burner (46M0902) supports the same media and speeds for reading as DVD-ROM (46M0901). This drive also supports the following media and speeds for writing: CD-R 24X ... -
Page 24: I/O Expansion Options
Integrated NIC has the following features: An Intel I350-CM2 chip Up to four Gigabit Ethernet ports (two enabled standard, and two enabled optionally with the 90Y9314 FoD upgrade) NIC Teaming (load balancing and failover) IBM System x3530 M4 (E5-2400) - Page 25 Legacy and Message Signal Interrupt (MSI) Message Signal Interrupt Extension (MSI-X) Receive Side Scaling (RSS) for Windows Scalable I/O for Linux environments (IPv4, IPv6, TCP/UDP) Support for packets up to 9.5 KB (jumbo frames) IBM System x3530 M4 (E5-2400)
- Page 26 PRO/1000 PF Server Adapter * Virtual Fabric Adapters and Converged Network Adapters require SFP+ optical transceivers or DAC cables that must be purchased separately. For more information, see the list of IBM Redbooks Product Guides in the Ethernet and IB adapters category: http://www.redbooks.ibm.com/portals/systemx?Open&page=pg&cat=networkadapters...
-
Page 27: Storage Host Bus Adapters
39R6527 3568 Qlogic 4Gb FC Dual-Port PCIe HBA for System x 46M0907 5982 IBM 6Gb SAS HBA For more information, see the list of IBM Redbooks Product Guides in the Host bus adapters category: http://www.redbooks.ibm.com/portals/systemx?Open&page=pg&cat=hba IBM System x3530 M4 (E5-2400) -
Page 28: Pcie Ssd Adapters
Part number Feature Description Maximum code supported 46C9078 A3J3 IBM 365GB High IOPS MLC Mono Adapter 46C9081 A3J4 IBM 785GB High IOPS MLC Mono Adapter 90Y4377 A3DY IBM 1.2TB High IOPS MLC Mono Adapter GPU adapters The server supports graphics processing units (GPUs) provided riser card 00D4490 is installed. The following table lists the supported GPUs. -
Page 29: Integrated Virtualization
Web browser The optional IBM Integrated Management Module Advanced Upgrade is required to enable the remote presence and blue-screen capture features. The remote presence feature provides the following functions: Remotely viewing video with graphics resolutions up to 1600x1200 at 75 Hz with up to 23 bits per ... -
Page 30: Light Path Diagnostics Panel
The light path diagnostics panel allows system engineers and administrators to easily and quickly diagnose hardware problems on IBM System x servers. If a failure occurs, a light is illuminated on the front panel of the server (level 1 light path) to alert the systems administrator that there is a problem. The light path diagnostics panel (light path level 2) will have a light next to the LED for the failed subsystem. - Page 31 Figure 9. Advanced (level 2) light path The following table lists the advanced light path kit. Table 21. Advanced light path kit Part number Feature code Description Maximum supported 90Y6533 A2U6 Lightpath Upgrade kit IBM System x3530 M4 (E5-2400)
-
Page 32: Supported Operating Systems
VMware vSphere 5.5 (ESXi) For the latest information about the specific versions and service levels supported and any other prerequisites, see the IBM ServerProven® website at: http://www.ibm.com/systems/info/x86servers/serverproven/compat/us/nos/matrix.shtml Physical and electrical specifications Dimensions and weight: Height: 43 mm (1.7 in.) ... - Page 33 Minimum configuration: 0.13 kVA Maximum configuration: 0.57 kVA BTU output Minimum configuration: 406 Btu/hr (119 watts) Maximum configuration: 2627 Btu/hr (770 watts) Noise level 6.5 bels (operating) 6.3 bels (idle) IBM System x3530 M4 (E5-2400)
-
Page 34: Warranty Options
Warranty options The IBM System x3530 M4 has a three-year on-site warranty with 9x5/next business day terms. IBM offers the warranty service upgrades through IBM ServicePac offerings, described in this section. The IBM ServicePac® is a series of prepackaged warranty maintenance upgrades and post-warranty maintenance agreements with a well-defined scope of services, including service hours, response time, term of service, and service agreement terms and conditions. -
Page 35: Regulatory Compliance
The x3530 M4 supports attachment to external storage expansion enclosures, such as the EXP2500 series, by using the ServeRAID M5120 SAS/SATA Controller. The x3530 M4 can also be attached to supported external storage systems, such as the IBM System Storage® DS3500 series, using the supported HBAs listed in Table 13. - Page 36 Supports connectivity to the EXP2512 and EXP2524 storage expansion enclosures For more information, see the IBM Redbooks® Product Guide ServeRAID M5120 SAS/SATA Controller for IBM System x at: http://www.redbooks.ibm.com/abstracts/tips0858.html?Open The ServeRAID M5120 SAS/SATA Controller supports connectivity to the IBM System Storage external expansion enclosures listed in the following table.
- Page 37 600GB 10,000 rpm 6Gb SAS 2.5" HDD 46W0970 900GB 10,000 rpm 6Gb SAS 2.5" HDD 46W0980 1.2TB 10,000 rpm 6Gb SAS 2.5" HDD 2.5" SAS HS SSDs 49Y6072 200GB 6Gb SAS 2.5" SSD 49Y6077 400GB 6Gb SAS 2.5" SSD IBM System x3530 M4 (E5-2400)
-
Page 38: External Disk Storage Systems
The following table lists the external storage systems that are supported by x3530 M4 and can be ordered through the System x sales channel. The server might support other IBM disk systems that are not listed in this table. Refer to the IBM System Storage Interoperation Center for further information at: http://www.ibm.com/systems/support/storage/ssic... -
Page 39: External Backup Units
IBM Half High LTO Gen 3 SAS Tape Drive 44E8895 IBM Half High LTO Gen 4 SAS Tape Drive 49Y9898 IBM Half High LTO Gen 5 Internal SAS Tape Drive 00D8924 IBM Half High LTO Ultrium Gen 6 Internal SAS Tape Drive IBM System x3530 M4 (E5-2400) - Page 40 LTO Ultrium 3 Half High SAS DriveV2 Sled * The external tape drives listed can be ordered through the IBM System x sales channel. The server might support other IBM tape drives that are not listed in this table. Refer to the IBM System Storage Interoperation Center for further information.
-
Page 41: Top-Of-Rack Ethernet Switches
Top-of-rack Ethernet switches The server supports the top-of-rack Ethernet switches from IBM System Networking that are listed in the following table. Table 30. IBM System Networking - Top-of-rack switches Part number Description IBM System Networking - 1 Gb top-of-rack switches... -
Page 42: Uninterruptible Power Supply Units
IBM 6000VA LCD 4U Rack UPS (200 V/208 V) 53956KX IBM 6000VA LCD 4U Rack UPS (230 V) 53959KX IBM 11000VA LCD 5U Rack UPS (200V/208V/230V) For more information, see the list of IBM Redbooks Product Guides in the Power infrastructure category: http://www.redbooks.ibm.com/portals/systemx?Open&page=pg&cat=power IBM System x3530 M4 (E5-2400) -
Page 43: Power Distribution Units
Switched and Monitored PDUs 46M4002 IBM 1U 9 C19/3 C13 Active Energy Manager DPI® PDU 46M4003 IBM 1U 9 C19/3 C13 Active Energy Manager 60A 3 Phase PDU 46M4004 IBM 1U 12 C13 Active Energy Manager DPI PDU 46M4005 IBM 1U 12 C13 Active Energy Manager 60A 3 Phase PDU... - Page 44 IBM 0U 12 C19/12 C13 60A 3 Phase PDU 46M4143 IBM 0U 12 C19/12 C13 32A 3 Phase PDU For more information, see the list of IBM Redbooks Product Guides in the Power infrastructure category: http://www.redbooks.ibm.com/portals/systemx?Open&page=pg&cat=power IBM System x3530 M4 (E5-2400)
-
Page 45: Rack Cabinets
IBM PureFlex System 42U Rack 99564XX IBM S2 42U Dynamic Standard Expansion Rack 99564RX IBM S2 42U Dynamic Standard Rack For more information, see the list of IBM Redbooks Product Guides in the Rack cabinets and options category: http://www.redbooks.ibm.com/portals/systemx?Open&page=pg&cat=rack IBM System x3530 M4 (E5-2400) -
Page 46: Rack Options
46M5383 5341 IBM Virtual Media Conversion Option Gen2 (VCO2) 46M5382 5340 IBM Serial Conversion Option (SCO) For more information, see the list of IBM Redbooks Product Guides in the Rack cabinets and options category: http://www.redbooks.ibm.com/portals/systemx?Open&page=pg&cat=rack IBM System x3530 M4 (E5-2400) - Page 47 IBM Global Financing IBM Global Financing can help you obtain the IT solution you need while preserving funding for other strategic investments and optimizing cash flow. Our Fair Market Value (FMV) lease helps ensure that you have the latest IBM technology, and with our mid-lease upgrade capability, you can increase the capacity of the system with little to no change in your monthly payments.
-
Page 48: Related Publications And Links
IBM System x3530 M4 Installation and Service Guide : http://ibm.com/support/entry/portal/docdisplay?lndocid=MIGR-5090215 ServerProven hardware compatibility page for the x3530 M4: http://www.ibm.com/systems/info/x86servers/serverproven/compat/us/xseries/7160.html IBM Redbooks Product Guides for IBM System x servers and options: http://www.redbooks.ibm.com/portals/systemx?Open&page=pgbycat Configuration and Option Guide : http://www.ibm.com/systems/xbc/cog/ xREF - IBM x86 Server Reference: ... - Page 49 Web sites. The materials at those Web sites are not part of the materials for this IBM product and use of those Web sites is at your own risk.IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.
- Page 50 Intel Xeon, Intel, Pentium, Intel logo, Intel Inside logo, and Intel Centrino logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. LTO, Ultrium, the LTO Logo and the Ultrium logo are trademarks of HP, IBM Corp. and Quantum in the U.S. and other countries.
