For Wall Mounting
Hardware Provided
(2) "V" Bars ( one is factory mounted to the back of the case; one will be mounted to the wall)
(6) Toggle Bolts, 4"
(6) Lead Shields, #10-14 x 1-1/2"
(6) Phillips Flat Head Wood Screws, #10 x 2"
Tools Required
Electric Drill
Masonry Bit 5/16" (if mounting in solid masonry or concrete)
Screw Driver, #2 Flat Tip (if using toggle bolts)
or #2 Phillips (if mounting in solid masonry or concrete)

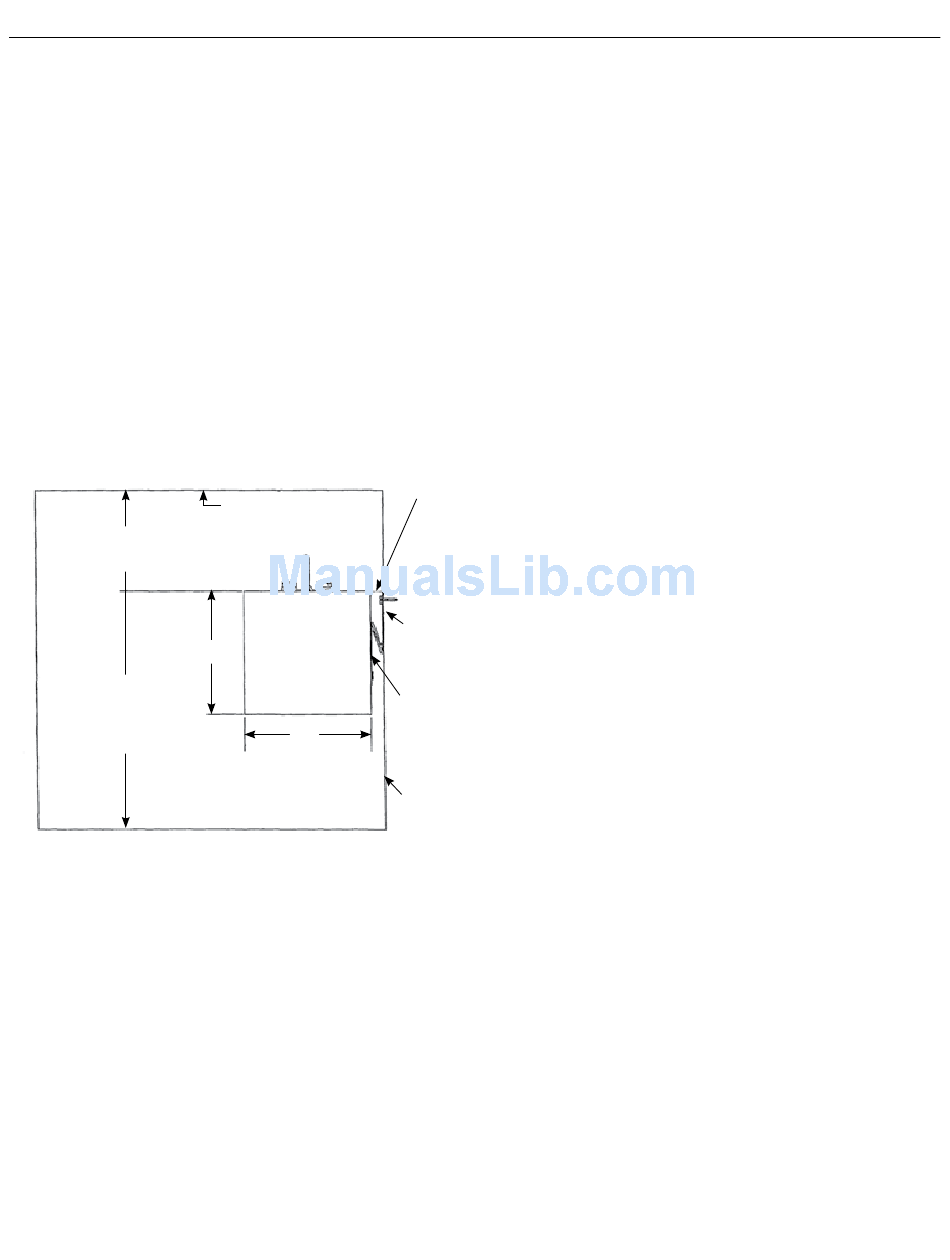

Allow A Minimum Of 1 1/4"
From The Ceiling
Determine
Measurement
To The Top Of
The Case
Floor Line
2
Ceiling
4"
4 1/4"
Mount Top Of
"V" Bar Flush
With Top Of Case
"V" Bar Mounted
To The Wall
"V" Bar Mounted To
The Back Of The Case
At The Factory
Wall
