9.0 Fluing Options

Please note that excessive resistance within the flue and combustion air supply systems
will lead to a reduction in the output of the appliance and induce operation faults.
Boiler Type
ProCon 150
ProCon 225
See section 19 for a full list of DN160 flue components

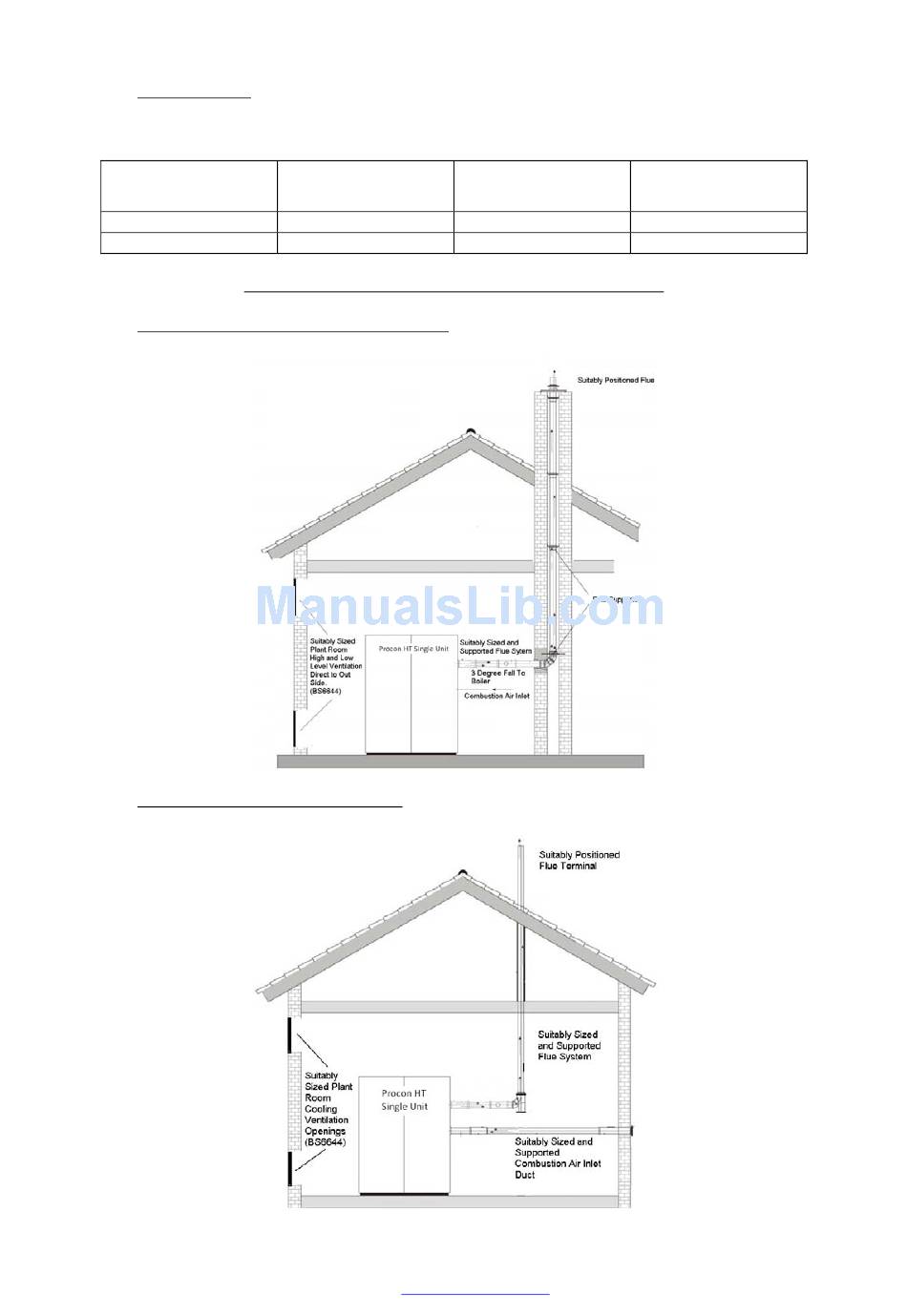

9.1 Single ProCon HT. Conventionally Flued.
9.2 Single ProCon HT. Balanced Flued.
Please note: The combustion air duct must have a resistance no greater than 100Pa
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
P:0845 6448802 F:0845 6448803 E:
© MHG Heating Ltd
Flue Outlet Size
DN 160
DN 160
info@mhgheating.co.uk
011011
Flue Size Maximum Length
Flue and Combustion Air Ducts
Combined Must Not Have a Resistance
of Greater Than 150Pa Max.
DN 160
DN 160
W: www.mhgheating.co.uk
28m
23m
