MHG Heating ProCon HT Installation And Operating Manual page 11

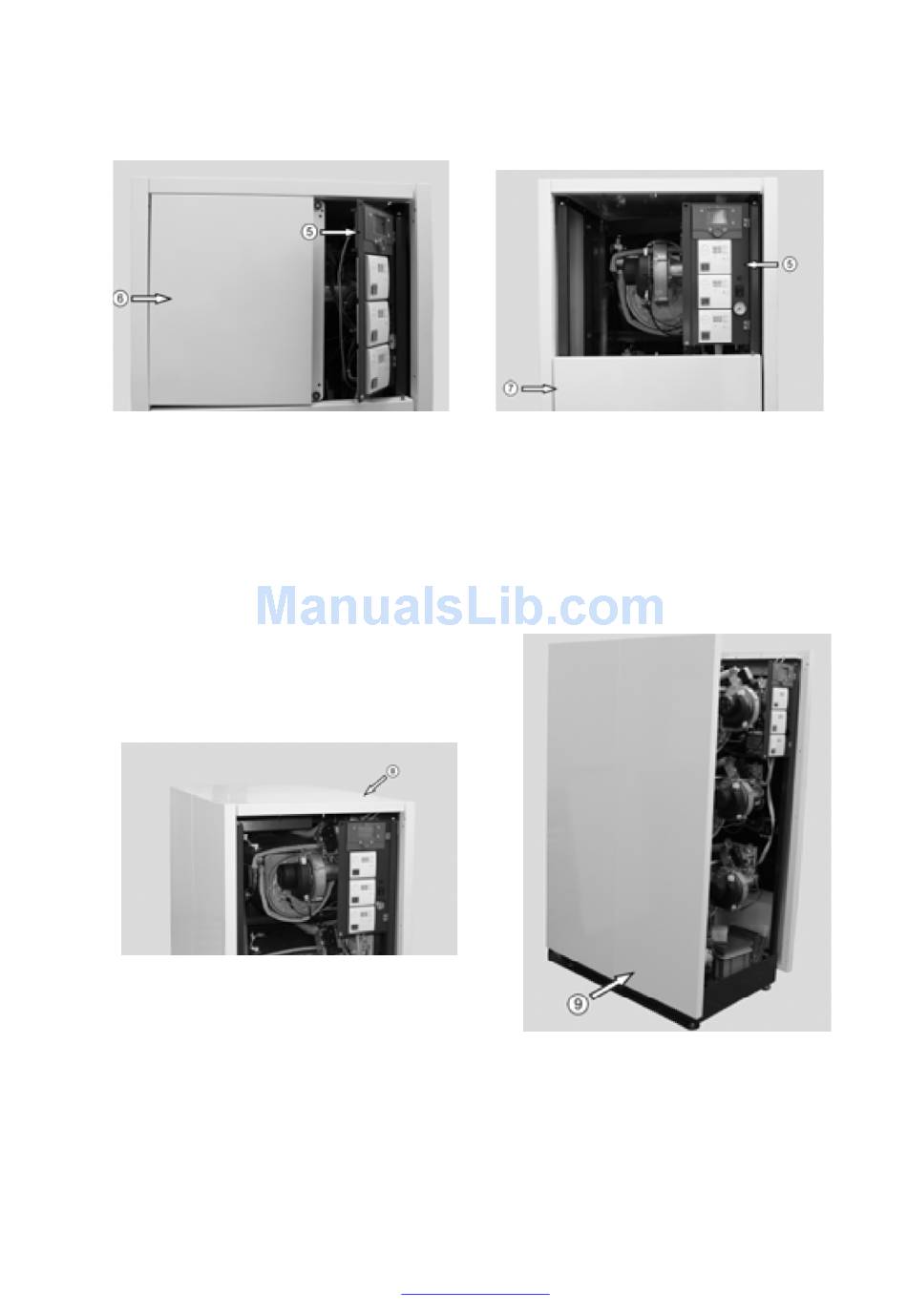

5. (5)Swing the Control Panel to the right
(6) Slide panel A to the right and remove.
7. (8) Lift the top panel up, (8) push to the rear
of the unit and remove.
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
P:0845 6448802 F:0845 6448803 E:
© MHG Heating Ltd
6. (5) Swing the control panel back
into its rest position, (7) slid panel
B up and remove.
8. (9) Pull the base of each side
panel to disengage it from the
press studs, (9) lift the panel
clear of the top pins.
