Santos 4 User And Maintenance Manual
Shop coffee grinder/coffee grinder
Hide thumbs
Also See for 4:
- User and maintenance manual (20 pages) ,
- User and maintenance manual (78 pages)
Table of Contents
Advertisement
Quick Links
SANTOS
SAS:
140-150 AVENUE ROGER SALENGRO
69120 VAULX-EN-VELIN (LYON) - FRANCE
SANTOS : User and maintenance manual
TEL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21
FAX 33 (0) 478 26 58 21
E-Mail: santos@santos.fr
USER AND MAINTENANCE MANUAL
!
Model # 1
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
Moulins à café - Presse-fruits - Mixers - Blenders - Distributeurs de boissons - Batteurs
mélangeurs - Pétrin - Râpes à fromage - Broyeurs à glaçons - Hache-viande - Coupe-légumes
98101 US 3.3 - 07 2013
www.santos.fr
IMPORTANT: documents included in this manual to be kept:
• "CE" COMPLIANCE DECLARATION
• WARRANTY CERTIFICATE
Translation of the original version
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS

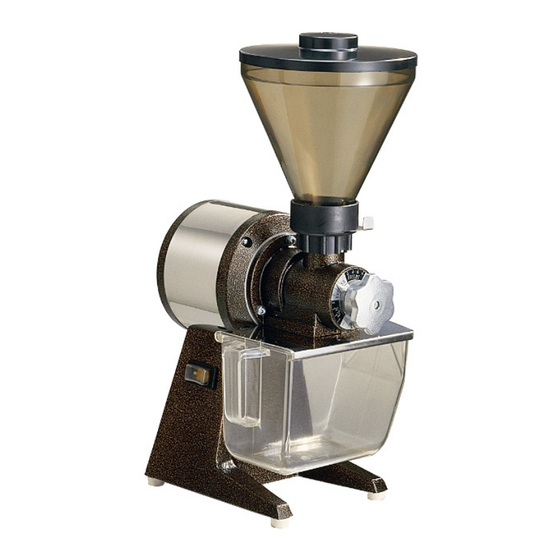

SHOP COFFEE GRINDER # 4
COFFEE GRINDER # 1 and # 1PS
Model # PS
1 / 20
Model # 4
www.santos.fr
Advertisement
Table of Contents
Related Manuals for Santos 4
Summary of Contents for Santos 4
- Page 1 SAS: 140-150 AVENUE ROGER SALENGRO 69120 VAULX-EN-VELIN (LYON) - FRANCE SANTOS : User and maintenance manual TEL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 FAX 33 (0) 478 26 58 21 E-Mail: santos@santos.fr www.santos.fr...
-
Page 2: Table Of Contents
IMPROPER USE ..........................4 ELECTRICAL CONNECTION ......................5 RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE .......... 5 YOUR COFFEE GRINDER # 1, # 1PS and # 4 ................6 USING THE APPLIANCE ....................... 7 ADJUSTING THE GRIND ....................... 7 SERVICING ............................. -
Page 3: Ce" Compliance Declaration
SANTOS : User and maintenance manual “CE” COMPLIANCE DECLARATION THE MANUFACTURER: SANTOS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE declares that the appliance intended for the professional market described below: Description: Shop coffee grinder Type number: 01, 01P, 01PS, 04 complies with: •... -
Page 4: Important Safeguards
3. Remove from the coffee beans any foreign bodies which may damage the grinding wheels (metal staples, stones, etc.). 4. For electrocution risk protection reasons, never plunge the base into water or any other liquid. 5. Use a hose nor a pressure hose for cleaning: this is forbidden 6. -
Page 5: Electrical Connection
For more information, please contact your Retailer or the SANTOS. For eliminating or recycling components of equipment, please contact a specialized company or contact SANTOS. -
Page 6: Your Coffee Grinder # 1, # 1Ps And # 4
(with a capacity of 800 g). But the bag- grip model can also be supplied on request (maximum bag depth of 150 mm) o Model # 4: The appliance is delivered with a "bag grip" system as standard (maximum bag height: 280 mm), •... -
Page 7: Using The Appliance
SANTOS : User and maintenance manual USING THE APPLIANCE ADJUSTING THE GRIND • Turn the grinding-wheel gap adjuster button 6 clockwise for a coarser grind and anticlockwise for a finer grind. The factory setting is for the finest grind, the grinding- wheels nearly touching each other. -
Page 8: Adjusting The Minimum Gap Between The Grinding-Wheels
3. Turn the grinding wheel gap adjuster button (6) clockwise until it comes to a halt at the “COARSE” setting." 4. Unscrew the nuts (16) and remove the whole grinding unit (15), to gain access to the grinding wheels. Change the grinding wheels (3 fastening screws) after carefully cleaning the supporting surfaces. -
Page 9: Fault Finding
SANTOS : User and maintenance manual FAULT FINDING Identify the exact reason the appliance stopped. In every case: If the problem persists, switch off the power supply to the machine (unplug the cord from the mains socket) and call in the maintenance service or contact a SANTOS approved dealer. -
Page 10: Machine Technical Specifications
SANTOS : User and maintenance manual MACHINE TECHNICAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS (1) # 1, # 1PS Model Supply voltage .(V) 220-240 100-120 220-240 Frequency (Hz) 50/60 Motor: Power input Speed (rpm) 1500 1500/1800 1800 Average capacity (kg/h) 14 Hopper capacity... -
Page 11: Wiring Diagram 110-120V 50/60Hz Model #1, 1Ps
SANTOS : User and maintenance manual Wiring diagram 110-120V 50/60Hz Model #1, 1PS Bleu Noir Condensateur Jaune Blanc Blanc Marron Rouge Marron Noir Relais de démarrage Marche/Arrêt U< Noir Noir Blanc Blanc 98101 US 3.3 - 07 2013 11 / 20... -
Page 12: Wiring Diagram 220-240V 50Hz Model #1, 1Ps
SANTOS : User and maintenance manual Wiring diagram 220-240V 50Hz Model #1, 1PS Noir Marron Condensateur Blanc Blanc Relais de démarrage Blanc Marche/Arrêt U< Blanc Blanc 98101 US 3.3 - 07 2013 12 / 20 www.santos.fr... -
Page 13: Wiring Diagram 220-240V 60Hz Model #1, 1Ps
SANTOS : User and maintenance manual Wiring diagram 220-240V 60Hz Model #1, 1PS Rouge Bleu Marron Condensateur Jaune Blanc Blanc Noir Blanc Relais de démarrage Marche/Arrêt U< Blanc Blanc Blanc Noir Vert / jaune 98101 US 3.3 - 07 2013 13 / 20 www.santos.fr... -
Page 14: Wiring Diagram 100-120V 50/60Hz Model #4
SANTOS : User and maintenance manual Wiring diagram 100-120V 50/60Hz Model #4 Blue Black Capacitor Yellow White White Brown Starter relay Thermal overload White protector White On/Off Black White White White Green/yellow 98101 US 3.3 - 07 2013 14 / 20... -
Page 15: Wiring Diagram 220-240V 50Hz Model #4
SANTOS : User and maintenance manual Wiring diagram 220-240V 50Hz Model #4 Black Brown Capacitor White White Starter relay Excess current protector White White On/Off White White Green/Yellow 98101 US 3.3 - 07 2013 15 / 20 www.santos.fr... -
Page 16: Wiring Diagram 220-240V 60Hz Model #4
SANTOS : User and maintenance manual Wiring diagram 220-240V 60Hz Model #4 Blue Capacitor Yellow White White Brown Black Starter relay Thermal overload protector White White On/Off Black White White White Green / Yellow 98101 US 3.3 - 07 2013 16 / 20 www.santos.fr... -
Page 17: Figures
SANTOS : User and maintenance manual Figures Model # 1PS Model #1 FIGURE A Model # 4 98101 US 3.3 - 07 2013 17 / 20 www.santos.fr... - Page 18 SANTOS : User and maintenance manual 98101 US 3.3 - 07 2013 18 / 20 www.santos.fr...
- Page 19 SANTOS : User and maintenance manual ITEM Description Bean hopper cover Bean hopper Bean hopper shutter Adjusting dial Adjuster button attachment Grinding wheel gap adjuster button Dial fastening screw Bag grip cord Bag grip strap Grind outlet tube Base Non-slip feet...
-
Page 20: Warranty Certificate
In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.
