USER AND MAINTENANCE MANUAL
!
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
www.santos.fr
AUTOMATIC ESPRESSO COFFEE GRINDER # 55
IMPORTANT: documents included in this manual to be kept:
• "CE" COMPLIANCE DECLARATION
• WARRANTY CERTIFICATE
Translation of the original version
INTERNATIONALLY PATENTED MODELS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 55 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Santos 55

Summary of Contents for Santos 55

  • Page 1 TEL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 E-Mail: santos@santos.fr www.santos.fr AUTOMATIC ESPRESSO COFFEE GRINDER # 55 USER AND MAINTENANCE MANUAL IMPORTANT: documents included in this manual to be kept: • "CE" COMPLIANCE DECLARATION •...

  • Page 2: Table Of Contents

    USING FOR THE 1 TIME ......................6 RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE .......... 6 YOUR BAR ESPRESSO COFFEE GRINDER No. 55 ..............7 CONTROL PANEL PERSONALISATION ..................7 USING THE MACHINE........................8 CONTROL PANEL DESCRIPTION ....................8 MEASURE SELECTION ........................
  • Page 3 SANTOS: User and maintenance manual Element cross-reference table ...................... 19 WARRANTY CERTIFICATE ..................... 22 APPLIANCE IDENTIFICATION PLATE ................22 98155 EN 3.7- 05 2014 3 / 22 www.santos.fr...

  • Page 4: Ce" Compliance Declaration

    SANTOS: User and maintenance manual “CE” COMPLIANCE DECLARATION THE MANUFACTURER: SANTOS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE declares that the appliance intended for the professional market described below: Description: Automatic espresso coffee grinder Type number: complies with: •...

  • Page 5: Important Safeguards

    SANTOS approved dealer or a person with similar qualifications to avoid any danger. 11. The use of spare parts other than certified SANTOS original parts is prohibited. 12. Turn the On/Off switch (11) to "0" when the appliance is not operating.

  • Page 6: Electrical Connection

     or on the identification plate on the last page of this manual. • If the power cable (10) is damaged, it should be replaced by a SANTOS approved dealer, SANTOS or a person with similar qualifications to avoid any danger.

  • Page 7: Your Bar Espresso Coffee Grinder No. 55

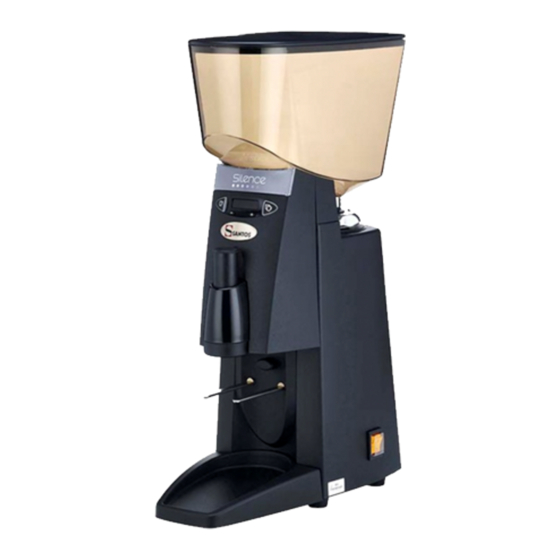

    SANTOS: User and maintenance manual YOUR BAR ESPRESSO COFFEE GRINDER No. 55 • The silent bar espresso coffee grinder No. 55 is designed for bars, cafés, hotels and restaurants. It is suitable for all types of espresso coffee machine. • The machine consists of an aluminium grinder unit and base, a transparent plastic bean container, and an electronic system combining the dose measurer and a dose counter.

  • Page 8: Using The Machine

    SANTOS: User and maintenance manual USING THE MACHINE The machine provides automatic delivery of the required measure of coffee ground there and then for making: • 1 espresso coffee (1 measure selection) • 2 espresso coffees (2 measures selection). CONTROL PANEL DESCRIPTION The control panel is made up of: (fig.

  • Page 9: Mode 3: Display Of The Current Selection (The Counters Are Hidden)

    SANTOS: User and maintenance manual Mode 3: Display of the current selection (the counters are hidden) Mode 3 provides the means for hiding the counters. Mode 3 display: "__1__" for the 1 cup selection "__2__" for the 2 cup selection...

  • Page 10: Grinding Adjustment

    SANTOS: User and maintenance manual Grinding adjustment: CARE: Changing the grinding setting will always require resetting the timers. See the information chart in the next section: Note: Never operate the machine with the two grindstones in contact. Letting the grindstones come into contact may result in the grindings jamming in the grinder unit and premature wear of the grindstones.

  • Page 11: Setting The Measured Dose Of Ground Coffee (Timers)

    Adjusting the fineness of grinding (Mark on the nut graduated plate (5)) Approximate values for one measure and for new SANTOS grindstones Explanatory notes for the table: For example: you have made your grinding setting, which corresponds to "Notch 6" on the grinding adjustment nut (5).

  • Page 12: Initialising The Factory Parameters

    SANTOS: User and maintenance manual The 2 selector buttons are set independently (fig. D). Generally speaking: The 2 "+" and "-" buttons (22) are used to increase or decrease the values and the "Selection" buttons (20 and 21) are used to confirm the timer values.

  • Page 13: Cleaning

    SANTOS: User and maintenance manual CLEANING: IMPORTANT: • In all circumstances, the machine should be stopped and the machine's power supply cable (10) unplugged. • Do not clean with a water spray or pressure jet The ground coffee outlet tube (23) should be cleaned regularly using a commercially- available bottle-brush (fig.
  • Page 14 SANTOS: User and maintenance manual 3. Stop the machine and unplug the mains power lead (10). 4. Take off the bean container (2). 5. With one hand, press the indexing pointer (7) and with the other unscrew the adjustment nut by turning it in an anti-clockwise direction (fig. I).

  • Page 15: Fault Finding

    SANTOS: User and maintenance manual FAULT FINDING Carefully determine the reason for the machine stopping. In all circumstances, if the problem persists, disconnect the electric power supply (unplug the mains supply lead plug (10)) and call on someone from the maintenance department or contact an approved SANTOS dealer.

  • Page 16: The Ground Coffee Dose Measurement Is Not Consistent

    SANTOS: User and maintenance manual • Under the machine (fig. O), press the button (13) to reset the excess current protection. If the button does not remain in the "reset" position, allow the machine to cool down before repeating the operation.

  • Page 17: Machine Technical Specifications

    SANTOS: User and maintenance manual MACHINE TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS Model 55 Single phase Power supply voltage .(V) 220-240 100-120 Frequency (Hz) 50/60 50/60 Motor: rating Input power 1150 Speed: (rpm) 2850 at 50Hz 3400 at 60Hz Bean container capacity...

  • Page 18: 110-120V 50/60Hz And 220-240V 50/60Hz Wiring Diagram

    SANTOS: User and maintenance manual 110-120V 50/60Hz and 220-240V 50/60Hz wiring diagram Black Black Motor Blue Capacitor White White Control panel Harness White Control part lectronic card Power part Brown Purple Blue Filter holder Purple presence micro-switch Orange Orange On / Off...

  • Page 19: Element Cross-Reference Table

    SANTOS: User and maintenance manual Element cross-reference table ITEM Description Bean container lid Bean container Ground coffee collector Base Grinder unit Bean container shutter Indexing pointer Grindstone holder plate Grindstone Power supply lead. On / Off switch Graduated plate Current overload protector...
  • Page 20 Fig. A SANTOS: User and maintenance manual Fig. B Figures Fig. C Fig. E Fig. D Fig. G Fig. H Fig. F 98155 EN 3.7- 05 2014 20 / 22 www.santos.fr...
  • Page 21 Fig. I Fig. J SANTOS: User and maintenance manual Meule fixe Meule mobile Fig. L Fig. K Fig. N Fig. M Fig. O 98155 EN 3.7- 05 2014 21 / 22 www.santos.fr...

  • Page 22: Warranty Certificate

    In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.
