SANTOS: Operating and servicing manual
69120 VAULX-EN-VELIN (LYON) - FRANCE
TÉL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21
E-Mail: santos@santos.fr
220*.11
USER AND MAINTENANCE MANUAL
!
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
Moulins à café - Presse-fruits - Mixers - Blenders - Distributeurs de boissons - Batteurs
mélangeurs - Pétrin - Râpes à fromage - Broyeurs à glaçons - Hache-viande - Coupe-légumes
98142 EN 2.0 - 12 2013
TO
www.santos.fr

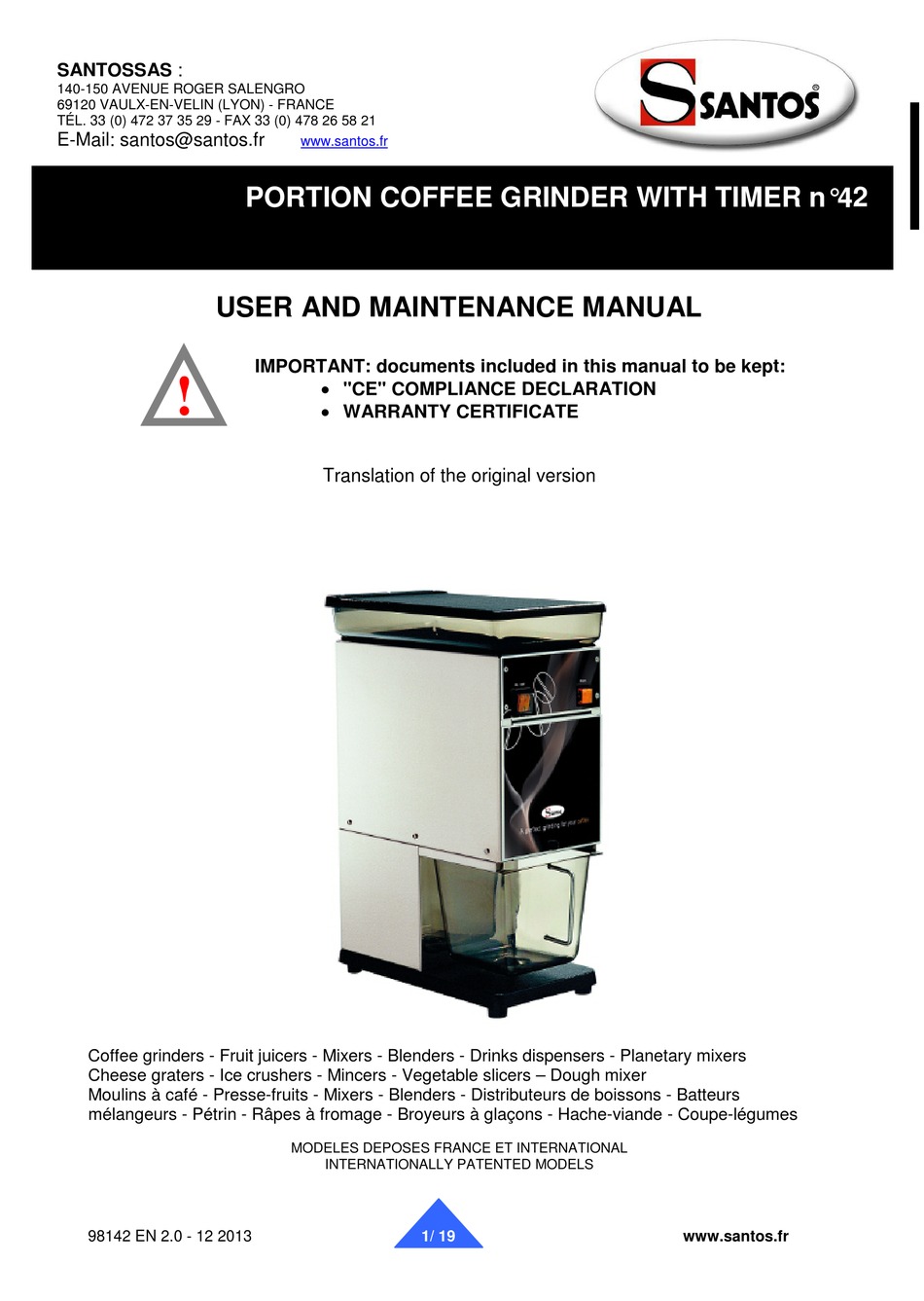

PORTION COFFEE GRINDER WITH TIMER n°42
IMPORTANT: documents included in this manual to be kept:
• "CE" COMPLIANCE DECLARATION
• WARRANTY CERTIFICATE
Translation of the original version
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS
1/ 19
www.santos.fr
Advertisement
Table of Contents
Related Manuals for Santos 42
Summary of Contents for Santos 42
- Page 1 TÉL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 E-Mail: santos@santos.fr 220*.11 www.santos.fr PORTION COFFEE GRINDER WITH TIMER n°42 USER AND MAINTENANCE MANUAL IMPORTANT: documents included in this manual to be kept: • "CE" COMPLIANCE DECLARATION •...
-
Page 2: Table Of Contents
SANTOS: Operating and servicing manual CONTENTS “CE” COMPLIANCE DECLARATION .................. 3 SAFETY RULES ........................4 INSTALLATION AND HANDLING..................4 DO NOT: .......................... 4 ELECTRICAL CONNECTION: ..................5 1st TIME USE ........................5 RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE ......6 YOUR COFFEE GRINDER .................... -
Page 3: Ce" Compliance Declaration
Type number: complies with: • the statutory provisions defined in appendix 1 of the European "machines" directive n°2006/42/CE and the national legislation transposing it • the statutory provisions of the following European directives and regulations: o N° 2006/95/CE (low voltage directive) o N°... -
Page 4: Safety Rules
The machine motor shaft must always be vertical with respect to the surface on which it is placed. 10. The use of spare parts other than certified original SANTOS parts is prohibited 11. Always turn the On/Off switch (12) to "0" when the appliance is not in operation. -
Page 5: Electrical Connection
or on the identification plate on the last page of this manual. • If the power supply cable is damaged, it should be replaced by an approved SANTOS dealer, SANTOS or a person with similar qualifications to avoid any danger. -
Page 6: Recycling The Product At The End Of Its Service Life
For more information, please contact your Retailer or the SANTOS. For eliminating or recycling components of equipment, please contact a specialized company or contact SANTOS. -

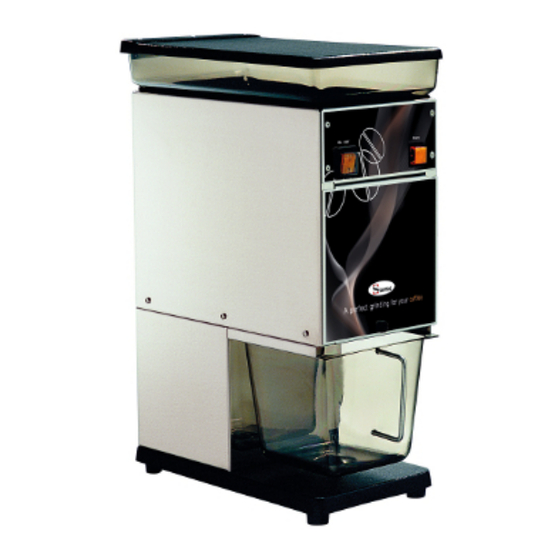

Page 7: Your Coffee Grinder
The coffee-bean container holds up to 2 kg and has a hinged cover. Coffee grinder # 42 can be used with a filter holder type ground coffee collector for use on coffee makers either with a ground coffee drawer with a maximum of 800 g of ground coffee or percolators (capacity: 5, 10 liters of coffee). -
Page 8: Adjusting The Grind
SANTOS: Operating and servicing manual ADJUSTING THE GRIND • Turn the grinding disc gap adjuster button (6) clockwise for a coarser grind and anticlockwise for a finer grind. The factory setting is for the finest grind with the grinding discs nearly touching each other. -
Page 9: Replacing Grinding Discs
REPLACING GRINDING DISCS IMPORTANT: always replace the 2 grinding discs (19 and 21) at the same time. (Use SANTOS grinding discs ref 00001B). The 2 grinding discs are identical and can be fitted equally either on the moving plate (19) (moving grinding disc) or on the adjuster cast iron unit (20) (fixed grinding disc). -
Page 10: Adjusting The Minimum Gap Between The Grinding-Wheels
SANTOS: Operating and servicing manual ADJUSTING THE MINIMUM GAP BETWEEN THE GRINDING-WHEELS This should be done after replacing the grinding wheels. 1. Plug the appliance in and run it empty. 2. Unscrew hexagon socket screw (25) on the dial (24) using a 2-mm Allen wrench. -
Page 11: Fault Finding
SANTOS: Operating and servicing manual FAULT FINDING Identify the exact reason the appliance stopped. In every case: If the problem persists, switch off the power supply to the machine (unplug the cord from the mains socket) and call in the maintenance service or contact a SANTOS approved dealer. -
Page 12: Appliance Technical Specifications
SANTOS: Operating and servicing manual APPLIANCE TECHNICAL SPECIFICATIONS Model # 42 # 42V1 # 42V4 Supply voltage .(V) 220-240 100-120 220-240 Frequency (Hz) 50/60 Motor Input power Speed (rpm) 1500 1500/1800 1800 Average output (kg/h) 15 to 35 Hopper capacity... -
Page 13: Wiring Diagram 110-120V 50/60Hz
SANTOS: Operating and servicing manual Wiring diagram 110-120V 50/60Hz 98142 EN 2.0 - 12 2013 13/ 19 www.santos.fr... -
Page 14: Wiring Diagram 220-240V 50Hz
SANTOS: Operating and servicing manual Wiring diagram 220-240V 50Hz 98142 EN 2.0 - 12 2013 14/ 19 www.santos.fr... -
Page 15: Wiring Diagram 220-240V 60Hz
SANTOS: Operating and servicing manual Wiring diagram 220-240V 60Hz 98142 EN 2.0 - 12 2013 15/ 19 www.santos.fr... -
Page 16: Figures
SANTOS: Operating and servicing manual Figures 98142 EN 2.0 - 12 2013 16/ 19 www.santos.fr... - Page 17 SANTOS: Operating and servicing manual 98142 EN 2.0 - 12 2013 17/ 19 www.santos.fr...
- Page 18 SANTOS: Operating and servicing manual ITEM Description Coffee-bean container cover Coffee-bean container Coffee inlet nozzle Container fixing rod Grinder body Grind adjuster button Grinder body fixing nut Motor Stainless plate frame Painted aluminium base Pulse push button On / Off switch...
-
Page 19: Warranty Certificate
In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.
