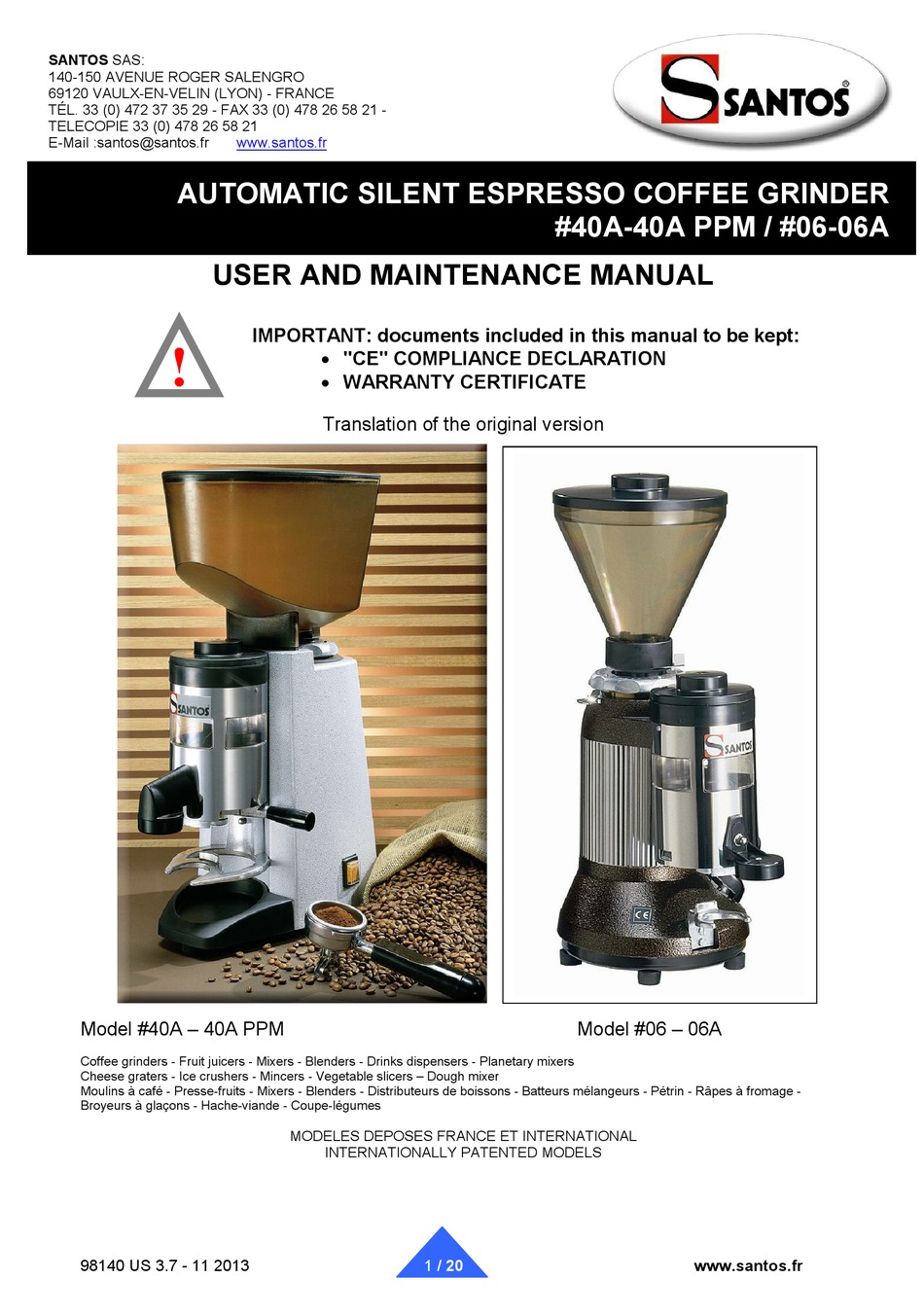

AUTOMATIC SILENT ESPRESSO COFFEE GRINDER
USER AND MAINTENANCE MANUAL
!
Model #40A – 40A PPM
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
Moulins à café - Presse-fruits - Mixers - Blenders - Distributeurs de boissons - Batteurs mélangeurs - Pétrin - Râpes à fromage -
Broyeurs à glaçons - Hache-viande - Coupe-légumes
98140 US 3.7 - 11 2013
www.santos.fr
IMPORTANT: documents included in this manual to be kept:
• "CE" COMPLIANCE DECLARATION
• WARRANTY CERTIFICATE
Translation of the original version
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS
#40A-40A PPM / #06-06A
Model #06 – 06A
1 / 20
www.santos.fr
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Santos 40A – 40A PPM
Summary of Contents for Santos 40A – 40A PPM
- Page 1 SANTOS SAS: 140-150 AVENUE ROGER SALENGRO SANTOS : User and maintenance manual 69120 VAULX-EN-VELIN (LYON) - FRANCE TÉL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 - TELECOPIE 33 (0) 478 26 58 21 E-Mail :santos@santos.fr...
-
Page 2: Table Of Contents
SANTOS : User and maintenance manual CONTENTS “CE” COMPLIANCE DECLARATION ..................3 IMPORTANT SAFEGUARDS ......................4 IMPROPER USE ..........................4 ELECTRICAL CONNECTION: ....................... 4 USING FOR THE 1 TIME ......................5 RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE .......... 5 YOUR ESPRESSO COFFEE GRINDER #40A - 40APPM, #06 –... -
Page 3: Ce" Compliance Declaration
SANTOS : User and maintenance manual “CE” COMPLIANCE DECLARATION THE MANUFACTURER: SANTOS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE declares that the appliance intended for the professional market described below: Description: AUTOMATIC SILENT ESPRESSO COFFEE GRINDER Type number:... -
Page 4: Important Safeguards
6. Unplug the appliance before carrying out any work on it: cleaning, maintenance or repair. 7. The use of spare parts other than certified SANTOS original parts is prohibited. 8. Do not use the appliance if the power supply cord is damaged. It must be replaced by either a SANTOS approved dealer or a person with similar qualifications to avoid any danger. -
Page 5: Using For The 1 Time
or on the identification plate on the last page of this manual. • If the power cable (10) is damaged, it should be replaced by a SANTOS approved dealer, SANTOS or a person with similar qualifications to avoid any danger. -
Page 6: Your Espresso Coffee Grinder #40A - 40Appm, #06 - #06A
SANTOS : User and maintenance manual YOUR ESPRESSO COFFEE GRINDER #40A - 40APPM, #06 – #06A • The silent bar espresso coffee grinder #40A, #06-06A is designed for bars, cafés, hotels and restaurants. It is suitable for all types of espresso coffee machines. -
Page 7: Coffee Grinding Adjustment
SANTOS : User and maintenance manual For #40A / #06A models: the motor stops automatically when the dose measurer is full. It starts again, after a few measures, when the ground coffee level has dropped sufficiently. Because of this, the machine can be left with the electric power on in position 1 all the time it is being used. -
Page 8: Cleaning
Before carrying out any work on the machine, it is essential to unplug it from the mains and to discharge the motor starting capacitor. IMPORTANT: Use of spare parts other than certified original SANTOS parts is prohibited Discharging the capacitor: •... - Page 9 SANTOS : User and maintenance manual The 2 grindstones are identical and can be fitted equally either on the moving plate (18) (moving grindstone) or on the adjusting "nut" (5) (fixed grindstone) (fig. F). 1. Close the bean shutter (6) (fig. G) .
-
Page 10: Fault Finding
SANTOS : User and maintenance manual FAULT FINDING Carefully determine the reason for the machine stopping. In all circumstances, if the problem persists, disconnect the electric power supply (unplug the mains supply lead plug (10)) and call on someone from the maintenance department or contact an approved SANTOS dealer. -
Page 11: The Machine Stops A Few Minutes After Starting
SANTOS : User and maintenance manual The machine stops a few minutes after starting. • Check the electric components (start relay). If the problem persists, turn the machine electric power off (unplug the mains power lead (10)) and call on someone from the maintenance department or contact an approved SANTOS dealer. -
Page 12: Machine Technical Specifications
SANTOS : User and maintenance manual MACHINE TECHNICAL SPECIFICATIONS ELECTRIC SPECIFICATIONS (1) model 40A -40A PPM 06 – 06A Supply voltage .(V) 220-240 110-120 Frequency (Hz) 50/60 50/60 Motor: rating Input power Speed: (rpm) 1450 at 50Hz,1700 at 60Hz Bean container capacity... -
Page 13: 110-120V 50/60Hz Wiring Diagram
SANTOS : User and maintenance manual 110-120V 50/60Hz wiring diagram White Capacitor Black White Brown Yellow Start relay Amperometric Dose protection measurer safety device White Blue On / Off White Black White White Green / Yellow 98140 US 3.7 - 11 2013 13 / 20 www.santos.fr... -
Page 14: 220-240V 50Hz Wiring Diagram
SANTOS : User and maintenance manual 220-240V 50Hz wiring diagram Since 2014 Blue Black Capacitor White 180 White Start relay Amperometric Dose protection measurer safety device Violet 200 Brown 600 On / Off White 240 White 240 1x240 Green / Yellow 1x350 98140 US 3.7 - 11 2013... -
Page 15: 220-240V 60Hz Wiring Diagram
SANTOS : User and maintenance manual 220-240V 60Hz wiring diagram White Capacitor Blue White 180 Grey Black Yellow Start relay Amperometric Dose protection measurer safety device Violet 200 Brown 600 On / Off White 240 White 240 1x240 Green / Yellow 1x350 98140 US 3.7 - 11 2013... - Page 16 SANTOS : User and maintenance manual Element cross-reference table ITEM Description Bean container lid Bean container Ground coffee collector Base Grinder body Bean container shutter Indexing pointer Coffee measure adjustment thumb-wheel Grindstone Power supply lead plug On / Off switch...
-
Page 17: Figures
SANTOS : User and maintenance manual Figures Fig. A 98140 US 3.7 - 11 2013 17 / 20 www.santos.fr... - Page 18 Fig. A Fig. B SANTOS : User and maintenance manual Fig. C Fig. D Fig. E Fig. G Fig. F 98140 US 3.7 - 11 2013 18 / 20 www.santos.fr...
- Page 19 Meule mobile Fig. H Fig. I SANTOS : User and maintenance manual Meule fixe Fig. K Fig. J Fig. L Fig. N Fig. O Fig. M 98140 US 3.7 - 11 2013 19 / 20 www.santos.fr...
-
Page 20: Warranty Certificate
In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.
