SANTOS : User and maintenance manual
69120 VAULX-EN-VELIN (LYON) - FRANCE
TEL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21
FAX 33 (0) 478 26 58 21
E-Mail: santos@santos.fr

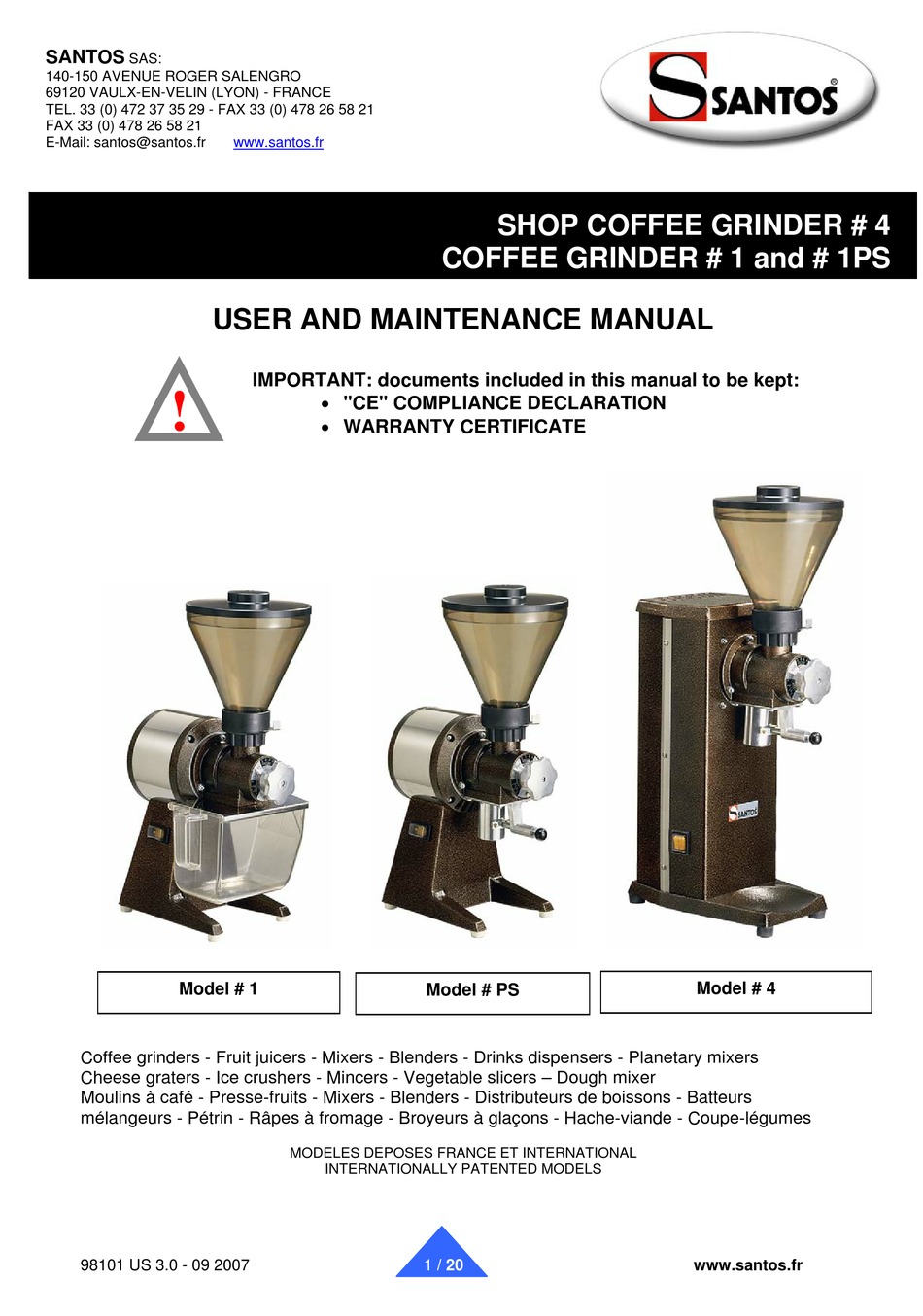

USER AND MAINTENANCE MANUAL
!
Model # 1
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
Moulins à café - Presse-fruits - Mixers - Blenders - Distributeurs de boissons - Batteurs
mélangeurs - Pétrin - Râpes à fromage - Broyeurs à glaçons - Hache-viande - Coupe-légumes
98101 US 3.0 - 09 2007
www.santos.fr
IMPORTANT: documents included in this manual to be kept:
• "CE" COMPLIANCE DECLARATION
• WARRANTY CERTIFICATE
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS

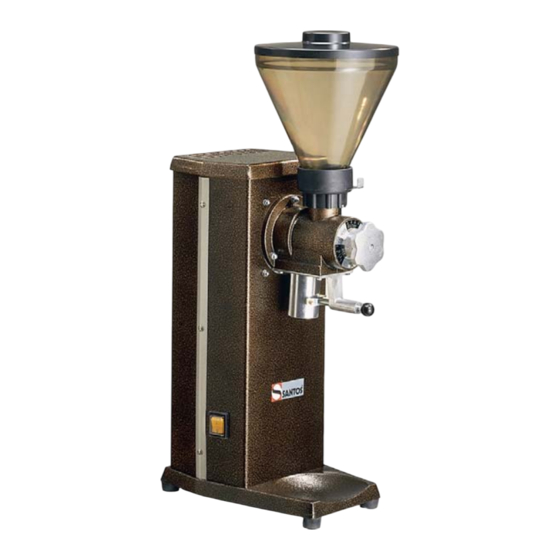

SHOP COFFEE GRINDER # 4
COFFEE GRINDER # 1 and # 1PS
Model # PS
1 / 20
Model # 4
www.santos.fr
Advertisement
Table of Contents
Related Manuals for Santos PS
Summary of Contents for Santos PS
- Page 1 SANTOS SAS: 140-150 AVENUE ROGER SALENGRO SANTOS : User and maintenance manual 69120 VAULX-EN-VELIN (LYON) - FRANCE TEL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 FAX 33 (0) 478 26 58 21 E-Mail: santos@santos.fr www.santos.fr...
-
Page 2: Table Of Contents
SANTOS : User and maintenance manual CONTENTS “CE” COMPLIANCE DECLARATION ..................3 IMPORTANT SAFEGUARDS ......................4 IMPROPER USE ..........................4 ELECTRICAL CONNECTION ......................4 RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE..........5 YOUR COFFEE GRINDER # 1, # 1PS and # 4 ................5 USING THE APPLIANCE .......................6... -
Page 3: Ce" Compliance Declaration
SANTOS : User and maintenance manual “CE” COMPLIANCE DECLARATION THE MANUFACTURER: SANTOS SAS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE HEREBY DECLARES THAT THE MACHINE DESIGNATED ON THE IDENTIFICATION PLATE AFFIXED: • UNDER THE APPLIANCE, • ON THE WARRANTY CERTIFICATE ON THE LAST PAGE OF THIS MANUAL, COMPLIES WITH THE PROVISIONS OF THE "machines"... -
Page 4: Important Safeguards
• If the power cable is damaged, it should be replaced by a special assembly available from approved SANTOS dealers or from SANTOS. CARE: Check that the On / Off switch (13) is in the 0 position before connecting the power cable plug to your mains electric power socket (fig. -
Page 5: Recycling The Product At The End Of Its Service Life
For more information, please contact your Retailer or the SANTOS. For eliminating or recycling components of equipment, please contact a specialized company or contact SANTOS. -
Page 6: Using The Appliance
SANTOS : User and maintenance manual USING THE APPLIANCE ADJUSTING THE GRIND • Turn the grinding-wheel gap adjuster button 6 clockwise for a coarser grind and anticlockwise for a finer grind. The factory setting is for the finest grind, the grinding- wheels nearly touching each other. -
Page 7: Adjusting The Minimum Gap Between The Grinding-Wheels
SANTOS : User and maintenance manual The 2 grinding wheels are identical and can be fitted equally either on the moving plate (18) (moving grinding wheel) or on the cast metal adjustment block (19) (fixed grinding wheel). 1. Stop the machine by putting the switch (13) to "0" and disconnect the power supply cord. - Page 8 SANTOS : User and maintenance manual 6. Run the machine empty to check that the grinding wheels rotate without touching each other on the finest setting. If this is not the case, repeat the above procedure. 98101 US 3.0 - 09 2007 8 / 20 www.santos.fr...
-
Page 9: Fault Finding
SANTOS : User and maintenance manual FAULT FINDING Identify the exact reason the appliance stopped. In every case: If the problem persists, switch off the power supply to the machine (unplug the cord from the mains socket) and call in the maintenance service or contact a SANTOS approved dealer. -
Page 10: Machine Technical Specifications
SANTOS : User and maintenance manual MACHINE TECHNICAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS (1) Model # 1, # 1PS Supply voltage .(V) 220-240 100-120 220-240 Frequency (Hz) 50/60 Motor: Power input Speed (rpm) 1500 1500/1800 1800 Average capacity (kg/h) 14 Hopper capacity... -
Page 11: Wiring Diagram 110-120V 50/60Hz Model #1, 1Ps
SANTOS : User and maintenance manual Wiring diagram 110-120V 50/60Hz Model #1, 1PS Bleu Noir Condensateur Jaune Blanc Blanc Marron Rouge Marron Noir Relais de démarrage Marche/Arrêt U< Noir Noir Blanc Blanc 98101 US 3.0 - 09 2007 11 / 20... -
Page 12: Wiring Diagram 220-240V 50Hz Model #1, 1Ps
SANTOS : User and maintenance manual Wiring diagram 220-240V 50Hz Model #1, 1PS Noir Marron Condensateur Blanc Blanc Relais de démarrage Blanc Marche/Arrêt U< Blanc Blanc 98101 US 3.0 - 09 2007 12 / 20 www.santos.fr... -
Page 13: Wiring Diagram 220-240V 60Hz Model #1, 1Ps
SANTOS : User and maintenance manual Wiring diagram 220-240V 60Hz Model #1, 1PS Rouge Bleu Marron Condensateur Jaune Blanc Blanc Noir Blanc Relais de démarrage Marche/Arrêt U< Blanc 1 Blanc Blanc Noir Vert / jaune 9 98101 US 3.0 - 09 2007 13 / 20 www.santos.fr... -
Page 14: Wiring Diagram 100-120V 50/60Hz Model #4
SANTOS : User and maintenance manual Wiring diagram 100-120V 50/60Hz Model #4 Blue Black Capacitor Yellow White White Brown Starter relay Thermal overload White protector White On/Off Black White White White Green/yellow 98101 US 3.0 - 09 2007 14 / 20... -
Page 15: Wiring Diagram 220-240V 50Hz Model #4
SANTOS : User and maintenance manual Wiring diagram 220-240V 50Hz Model #4 Black Brown Capacitor White White Starter relay Excess current protector White White On/Off White White Green/Yellow 98101 US 3.0 - 09 2007 15 / 20 www.santos.fr... -
Page 16: Wiring Diagram 220-240V 60Hz Model #4
SANTOS : User and maintenance manual Wiring diagram 220-240V 60Hz Model #4 Blue Capacitor Yellow White White Brown Black Starter relay Thermal overload protector White White On/Off Black White White White Green / Yellow 98101 US 3.0 - 09 2007 16 / 20 www.santos.fr... -
Page 17: Figures
SANTOS : User and maintenance manual Figures Model # 1PS Model #1 FIGURE A Model # 4 98101 US 3.0 - 09 2007 17 / 20 www.santos.fr... - Page 18 SANTOS : User and maintenance manual 98101 US 3.0 - 09 2007 18 / 20 www.santos.fr...
- Page 19 SANTOS : User and maintenance manual ITEM Description Bean hopper cover Bean hopper Bean hopper shutter Adjusting dial Adjuster button attachment Grinding wheel gap adjuster button Dial fastening screw Bag grip cord Bag grip strap Grind outlet tube Base Non-slip feet...
-
Page 20: Warranty Certificate
SANTOS : User and maintenance manual WARRANTY CERTIFICATE WARRANTY This appliance is guaranteed for twelve months from the date of manufacture appearing on the identification plate. The guarantee is strictly limited to the free replacement of any original part acknowledged by us as being defective as a result of a fault or a manufacturing defect and identified as belonging to the appliance in question.
