SANTOS :
140-150 AVENUE ROGER SALENGRO
69120 VAULX-EN-VELIN (LYON) - FRANCE
TÉL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 - TÉLEX 375 359 F
TELECOPIE 33 (0) 478 26 58 21
E-Mail :santos@santos.fr
INSTRUCTION AND MAINTENANCE MANUAL
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Dough mixer - Cheese graters - Ice crushers - Mincers - Vegetable slicers
Moulins à café - Presse-fruits - Mixers - Blenders - Distributeurs de boissons - Batteurs
mélangeurs - Pétrin - Râpes à fromage - Broyeurs à glaçons - Hache-viande - Coupe-légumes
4 FR 1.0 - 04 2004
www.santos.fr
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS

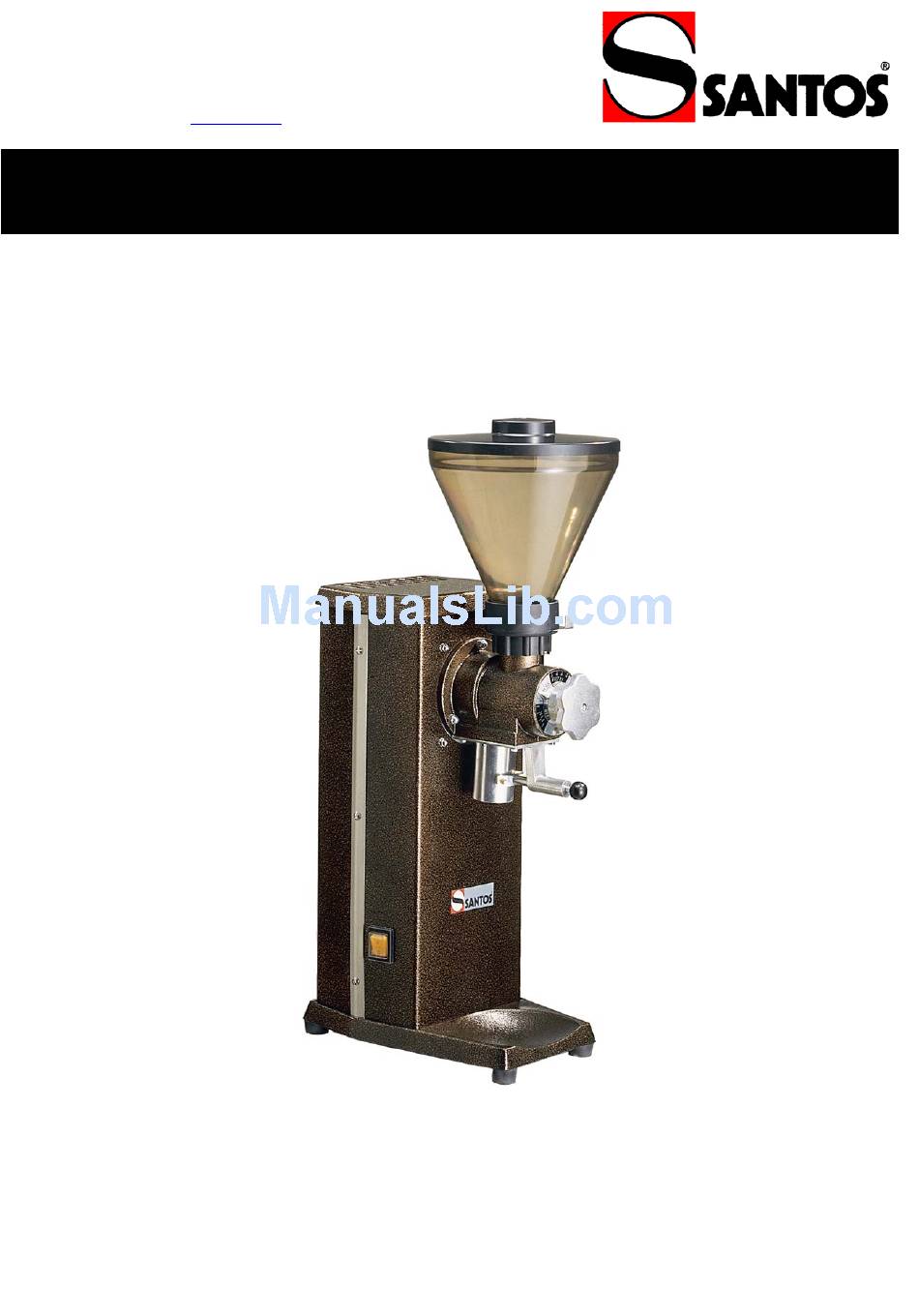

SHOP COFFEE GRINDER n°4
{<}100
<0}
1/14
Advertisement
Table of Contents
Related Manuals for Santos SHOP COFFEE GRINDER
Summary of Contents for Santos SHOP COFFEE GRINDER
- Page 1 TÉL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 - TÉLEX 375 359 F TELECOPIE 33 (0) 478 26 58 21 E-Mail :santos@santos.fr www.santos.fr SHOP COFFEE GRINDER n°4 {<}100 <0} INSTRUCTION AND MAINTENANCE MANUAL...
-
Page 2: Table Of Contents
CONTENTS YOUR COFFEE GRINDER N° 4 ..................3 ELECTRICAL CONNECTION ..................3 Using the COFFEE GRINDER N° 4 (fig. A) .................4 ADJUSTING THE GRIND ....................4 SERVICING ........................4 REPLACING GRINDING WHEELS .................4 ADJUSTING THE MINIMUM GAP BETWEEN THE GRINDING-WHEELS .....4 Safety / Maintenance / Spare Parts ..................6 MOTOR OVERLOAD SAFETY FEATURE: ..............6 MAINTENANCE .......................6 Discharging the capacitor: ....................6... -
Page 3: Your Coffee Grinder N° 4
• If the power cable is damaged, it should be replaced with a special unit available from SANTOS or a SANTOS-approved dealer. Note: You will find it easier to understand the next few paragraphs if you refer to the diagrams at the end of this manual. -
Page 4: Using The Coffee Grinder N° 4 (Fig. A)
Using the COFFEE GRINDER N° 4 (fig. A) ADJUSTING THE GRIND • Turn the grinding-wheel gap adjuster button (6) clockwise for a coarser grind and anticlockwise for a finer grind. The factory setting is for the finest grind, with the grinding wheels nearly touching each other. -
Page 5: Adjusting The Minimum Gap Between The Grinding-Wheels
ADJUSTING THE MINIMUM GAP BETWEEN THE GRINDING WHEELS This should be done after replacing the grinding wheels. 1. Plug the appliance in and run it empty. 2. Unscrew hexagon socket screw (7) on the dial (4) using a 2-mm Allen wrench. Check that the dial (4) is free to rotate without turning button (6). -
Page 6: Safety / Maintenance / Spare Parts
• Press the On/Off switch (13) (position I). If the problem persists, switch off the power supply to the machine (unplug the cord from the mains socket) and call in the maintenance service or contact a SANTOS approved dealer. MAINTENANCE Before carrying out any work on the appliance, it must in all cases be unplugged from the mains power supply and the motor start capacitor discharged. -
Page 7: Troubleshooting
In every case: If the problem persists, switch off the power supply to the machine (unplug the cord from the mains socket) and call in the maintenance service or contact a SANTOS approved dealer. The machine will not start: • Check: the mains power supply and the condition of the power supply cord, •... -
Page 8: Technical Specifications For Your Appliance
Technical Specifications for your Appliance ELECTRICAL SPECIFICATIONS (1) Model n° 4 Single phase Supply voltage 220-240 100-120 220-240 Frequency (Hz) Motor: Power input Speed (rpm) 1500 1800 1800 Average capacity (kg/h) Hopper capacity (kg) Maximum bag height (mm) Dimensions: Height (mm) Width (mm) -
Page 9: Wiring Diagram 100-120V 50/60Hz
Wiring diagram 100-120V 50/60Hz Blue Black Capacitor Yellow White White Brown Starter relay Thermal overload White protector White On/Off Black White White White Green/yellow 9/14 4 FR 1.0 - 04 2004... -
Page 10: Wiring Diagram 220-240V 50Hz
Wiring diagram 220-240V 50Hz Black Brown Capacitor White White Starter relay Excess current protector White White On/Off White White Green/Yellow 10/14 4 FR 1.0 - 04 2004... -
Page 11: Wiring Diagram 220-240V 60Hz
Wiring diagram 220-240V 60Hz Blue Capacitor Yellow White White Brown Black Starter relay Thermal overload protector White White On/Off Black White White White Green / Yellow 11/14 4 FR 1.0 - 04 2004... - Page 12 FIGURE A 12/14 4 FR 1.0 - 04 2004...
- Page 13 13/14 4 FR 1.0 - 04 2004...
- Page 14 ITEM Description Bean hopper cover Bean hopper Bean hopper shutter Adjusting dial Adjuster button attachment Grinding wheel gap adjuster button Dial fastening screw Bag grip cord Bag grip strap Grind outlet tube Base Non-slip feet On-off switch Thermal overload switch, with reset Grinding unit Grinding unit clamp nut Grinding wheels...
