Summary of Contents for Lantech LES-2400-RPS
-

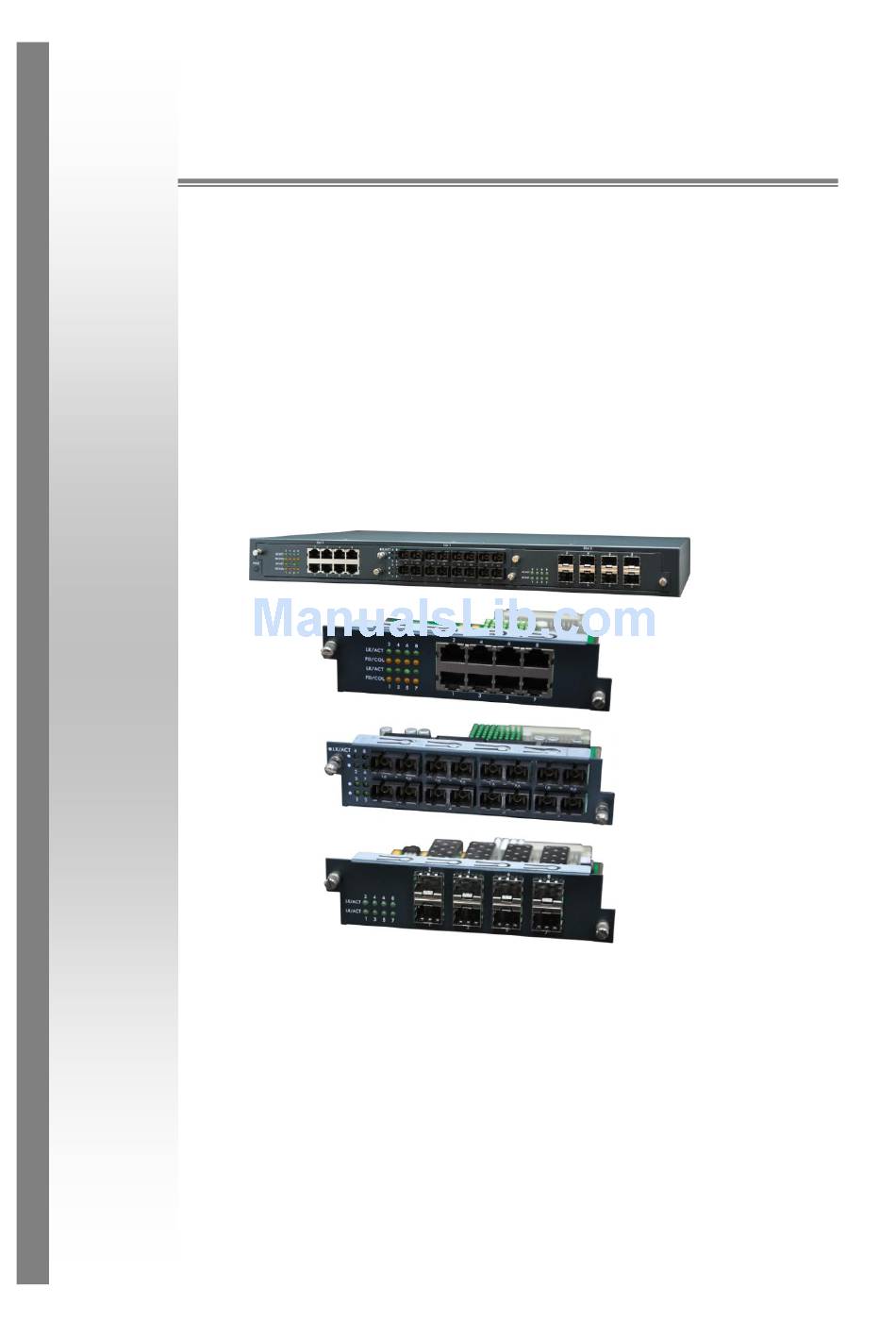

Page 1: User Manual
Lantech LES-2400-RPS 3-slot Modularized Fast Ethernet L2 + 2 Gigabit Copper / Mini-GBIC Combo Managed Switch User Manual v1.03 May-2010... -
Page 3: Table Of Contents
Contents 1. INTRODUCTION ...................... 1 Features ........................1 Software Features ......................2 Package Contents ......................4 Ethernet Switching Technology ..................5 2. HARDWARE DESCRIPTION ................... 7 Physical Dimension ...................... 7 Front Panel ........................7 LED Indicators ......................7 Rear Panel ........................8 Desktop Installation ...................... - Page 4 IP Configuration ......................19 DHCP Server – System configuration ................. 20 DHCP Client – System Configuration ................. 21 DHCP Server - Port and IP Bindings ................22 TFTP - Update Firmware .................... 23 TFTP – Restore Configuration ..................23 TFTP - Backup Configuration ..................24 System Event Log –...
- Page 5 System Configuration ..................54 Trap Configuration ....................55 SNMPV3 Configuration ..................56 Context Table ..................56 User Profile ................... 56 Group Table ..................58 Access Table ..................58 MIBview Table ..................58 QoS Configuration ...................... 59 IGMP Configuration ....................61 802.1X/Radius Configuration ................
-
Page 7: Introduction
1. Introduction The 3-slot Modularized Fast Ethernet L2 plus + 2 Gigabit Copper / Mini-GBIC Combo Managed Switch is a modular switch that can be used to build high-performance switched workgroup networks. This switch is a store-and-forward device that offers low latency for high-speed networking. -
Page 8: Software Features
Backpressure for half duplex High back-plane bandwidth 8.8Gbps Supports IEEE802.3ad Port trunk with LACP Broadcast storm filter supported IGMP supports for Multi Media application Supports IEEE 802.1p class of service Port security supported ... - Page 9 RFC 3418 SNMP MIB RFC 1213 MIBII RFC 2011 MIB RFC 1493 Bridge MIB RFC 2674 VLAN RFC 1215 Trap MIB RFC 1643 Ethernet like RMON1 Private MIB Cold/warm start trap, link down/link up trap, authorization SNMP Trap fail trap, fan fail trap. power event trap Supports IEEE802.3ad with LACP function.
-
Page 10: Package Contents
It supports IGMP V1 and V2 snooping; IGMP Snooping for IGMP Multi-Media application, IGMP group supports 256 groups and IGMP query Supports 50 entries of MAC address for static MAC and Port Security another 50 for MAC filter Supports 3 mirroring types: ―RX, TX and Both packet‖ Port Mirror Per port supports ingress rate limiting and egress rate shaping control. -
Page 11: Ethernet Switching Technology
Rack-mounted kit User Guide CD-ROM 3-slot intelligent chassis switch Four Rubber Feet RS-232 Cable Rack-mounted Kit Power Cord User Guide CD-ROM Package Contents Compare the contents of your 3-slot intelligent chassis switch package with the standard checklist above. IF any item is missing or damaged, please contact your local dealer for service. - Page 12 Auto-negotiation regulates the speed and duplex of each port, based on the capability of both devices. Flow-control allows transmission from a 100Mbps node to a 10Mbps node without loss of data. Auto-negotiation and flow-control may require disablement for some networking operations involves legacy equipment. Disabling the auto-negotiation is accomplished by fixing the speed or duplex of a port.
-
Page 13: Hardware Description
2. Hardware Description This Section mainly describes the hardware of the 3-slot intelligent chassis switch, and gives a physical and functional overview of the switch. Physical Dimension The 3-slot intelligent chassis switch physical dimension is 440mm(W) x 280mm(D) x 44mm(H). Front Panel The Front Panel of the 3-slot intelligent chassis switch supports up to 4 kinds of module. -
Page 14: Rear Panel
Yellow The port is operating in Full-duplex mode. FD/COL Blinks Collision of Packets occurs in the port. In half-duplex mode Green The port is operating at the speed of 1000Mbps 1000 The port is operating at the speed of 100Mbps Green (for RJ-45 port only) The Description of LED Indicators... -
Page 15: Attaching Rubber Feet
Attaching Rubber Feet Make sure mounting surface on the bottom of the Switch is grease and dust free. Remove adhesive backing from your Rubber Feet. C. Apply the Rubber Feet to each corner on the bottom of the Switch. These footpads can prevent the Switch from shock/vibration. -
Page 16: Power On
After attached both mounting brackets, position the switch in the rack by lining up the holes in the brackets with the appropriate holes on the rack. Secure the Switch to the rack with a screwdriver and the rack-mounting screws. Mount the Switch in 19‖ Rack Note: For proper ventilation, allow about at least 4 inches (10 cm) of clearance on the front and 3.4 inches (8 cm) on the back of the Switch. -
Page 17: Redundant Power
Redundant power Connect the optional redundant power cord to the redundant power socket on the rear panel of the Switch. The other side of redundant power cord connects to the power supply. The Switch works with power supply of 12-48 VDC. Please make sure the connection on power supply is correct when using the optional redundant power cord. -
Page 18: Network Application
3. Network Application This section provides you a few samples of network topology in which the Switch is used. In general, the 3-slot intelligent chassis switch is designed as a segment switch. That is, with its large address table (8000 MAC address) and high performance, it is ideal for interconnecting networking segments. -
Page 19: Connecting To The Switch
Connecting to the Switch The Console port is a female DB-9 connector that enables a connection to a PC or terminal for monitoring and configuring the Switch. Use the supplied RS-232 cable with a male DB-9 connector to connect a terminal or PC to the Console port. The Console configuration (out of band) allows you to set Switch for remote terminal as if the console terminal were directly connected to it. -
Page 20: Console Management
4. Console Management Login in the Console Interface When the connection between Switch and PC is ready, turn on the PC and run a terminal emulation program or Hyper Terminal and configure its communication parameters to match the following default characteristics of the console port: Baud Rate: 9600 bps Data Bits: 8 Parity: none... -
Page 21: Module Hot-Swapping
Console login screen Module Hot-Swapping The 3-slot Modularized Fast Ethernet L2 plus + 2 Gigabit Copper / Mini-GBIC Combo Managed Switch supports module hot-swapping. User can insert or pull the module out of the slot without powering down the switch. Once the module is not fully inserted, the LEDs on the module panel will all light on at the same time. -
Page 22: Web-Based Management
5. Web-Based Management This section introduces the configuration and functions of the Web-Based management. About Web-based Management Inside the CPU board of the switch, there exists an embedded HTML web site residing in flash memory. It offers advanced management features and allow users to manage the switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer. -
Page 23: System Login
System Login Launch the Internet Explorer on the PC Key in ―http:// ―+‖ the IP address of the switch‖, and then Press ―Enter‖. The login screen will appear right after Key in the user name and password. The default user name and password are the same as ―root‖... -
Page 24: Main Interface
Main interface Main interface... -
Page 25: System Information
System Information Assigning the system name, location and view the system information System Name: Assign the name of switch. The maximum length is 64 bytes System Description: Display the description of switch. Read only cannot be modified System Location: Assign the switch physical location. -
Page 26: Dhcp Server - System Configuration
IP Address: Assign the IP address that the network is using. If DHCP client function is enabled, and then user needn‘t assign the IP address manually. And, the network DHCP server will assign the IP address for the industrial switch and display it here. -
Page 27: Dhcp Client - System Configuration
High IP Address: the dynamic IP assign range. High IP address is the end of the dynamic IP assigns range. For example: dynamic IP assign range is from 192.168.1.100 ~ 192.168.1.200. 192.168.1.200 will be the High IP address. Subnet Mask: the dynamic IP assign range subnet mask. -
Page 28: Dhcp Server - Port And Ip Bindings
DHCP Server - Port and IP Bindings You can assign the specific IP address that is one of the IP in dynamic IP pool to the specific port. When the device is connected to the port and asks for dynamic IP assignment, the system will assign the IP address that had been assigned before to the connected device. -
Page 29: Tftp - Update Firmware
TFTP - Update Firmware The functions allow a user to update the switch firmware. Before updating, make sure you have your TFTP server ready; and the firmware image is on the TFTP server. TFTP Server IP Address: fill in your TFTP server IP. Firmware File Name: the name of firmware image. -
Page 30: Tftp - Backup Configuration
TFTP - Backup Configuration You can save current EEPROM value from the switch to TFTP server for restoring again afterward. TFTP Server IP Address: fill in the TFTP server IP Backup File Name: fill the file name Click Apply Backup Configuration interface System Event Log –... -
Page 31: System Event Log - Smtp Configuration
Syslog Configuration interface System Event Log - SMTP Configuration You can set up the mail server IP, mail account, account password, and forwarded email account for receiving the event alert. Email Alert: enable or disable the email alert function. SMTP Server IP: set up the mail server IP address (when Email Alert enabled, this function will then be available). -
Page 32: System Event Log - Event Configuration
Confirm Password: reconfirm the password. Rcpt e-mail Address 1 ~ 6: you can assign up to 6 e-mail accounts also to receive the alert. Click Apply SMTP Configuration interface System Event Log - Event Configuration You can select the system log events and SMTP events. When selected events occur, the system will send out the log information. - Page 33 issue a log event. Authentication Failure: when the SNMP authentication fails, the system will issue a log event. Port event selection: select the per port events and per port SMTP events. It has 3 selections – Link UP, Link Down, and Link UP & Link Down. Disable means no event is selected.
-
Page 34: Sntp Configuration
Event Configuration interface SNTP Configuration You can configure the SNTP (Simple Network Time Protocol) settings. The SNTP allows you to synchronize switch clocks in the Internet. SNTP Client: enable or disable SNTP function to get the time from the SNTP server. - Page 35 daylight saving time is enabling, you need to configure the daylight saving time period.. UTC Timezone: set the switch location time zone. The following table lists the different location time zone for your reference. Local Time Zone Conversion from UTC Time at 12:00 UTC November Time Zone - 1 hour...
- Page 36 CET - Central European FWT - French Winter MET - Middle European +1 hour 1 pm MEWT - Middle European Winter SWT - Swedish Winter EET - Eastern European, +2 hours 2 pm USSR Zone 1 BT - Baghdad, USSR +3 hours 3 pm Zone 2...
-
Page 37: Ip Security
Daylight Saving Period: set up the Daylight Saving beginning time and Daylight Saving ending time. Both will be different in every year. Daylight Saving Offset (mins): set up the offset time. Switch Timer: display the switch current time. Click Apply SNTP Configuration interface IP Security IP security function allows user to assign 10 specific IP addresses that have... -
Page 38: User Authentication
And then, click button to apply the configuration Apply [NOTE] Remember to execute the ―Save Configuration‖ action, otherwise the new configuration will lose when switch powers off. IP Security interface User Authentication Change web management login user name and password for the management security issue User name: Key in the new user name(The default is ―root‖) Password: Key in the new password(The default is ―root‖) -
Page 39: Advanced Configuration-Broadcast Storm Filter
User Authentication interface Advanced Configuration-Broadcast Storm Filter This page enables user to select the filter packet type. All the packet types filtering conditions could be selected at the same time. Flooded Unicast/Multicast Packets: When this check box is marked, the switch will filter the packet type of Flooded Unicast/Multicast. -
Page 40: Advanced Configuration-Aging Time
Broadcast Storm Filter Advanced Configuration-Aging Time This tab is used to assign the aging time of MAC table. Aging Time of MAC Table: Select the aging time as OFF, 150 sec, 300 sec, or 600 sec. When MAC table is not used within the aging time, the MAC address table will then be cleared. -
Page 41: Advanced Configuration-Jumbo Frame
Advanced Configuration-Jumbo Frame This tab is used to enable the jumbo frame function. Enable Jumbo Frame: When this item is marked, the Gigabit port of the switch (on the rear panel) extends the frame to 9022bytes. Click button to make the setting effective. Apply Jumbo Frame Setting... -
Page 42: Port Statistics
Port Statistics The following information provides the current port statistic information Click button to clean all counts Clear Port Statistics interface Port Control In Port control, you can view every port status that depended on user setting and the negotiation result. -
Page 43: Port Trunk
Duplex: set full-duplex or half-duplex mode of the port. Flow Control: set flow control function is Symmetric or Asymmetric in Full Duplex mode. The default value is Disable. Security: When its state is ―On‖, means this port accepts only one MAC address. Click Apply Port Control interface... -
Page 44: Aggregator Setting
Aggregation Control instances to reach agreement on the identity of the Link Aggregation Group to which the link belongs, move the link to that Link Aggregation Group, and enable its transmission and reception functions in an orderly manner. Link aggregation lets you group up to seven consecutive ports into two dedicated connections. -
Page 45: Aggregator Information
Port Trunk—Aggregator Setting interface Aggregator Information When you have set the LACP aggregator, you will see the related information here. Port Trunk – Aggregator Information interface... -
Page 46: State Activity
State Activity When you have set up the LACP aggregator, you can configure port state activity. You can mark or un-mark the port. When you mark the port and click button the Apply port state activity will change to Active. Opposite is Passive. ... -
Page 47: Port Mirroring
Port Mirroring The Port mirroring is a method for monitoring traffic in switched networks. Traffic through ports can be monitored by one specific port. That means traffic goes in or out monitored (source) ports will be duplicated into analysis (mirror) port. ... - Page 48 Rate Limiting interface All the ports support packet ingress and egress rate control. For example, assume port 1 is 10Mbps, users can set it‘s effective egress rate is 2Mbps, ingress rate is 1Mbps. The switch performs the ingress rate by packet counter to meet the specified rate ...
-
Page 49: Vlan Configuration
VLAN configuration A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which would allow you to isolate network traffic, so only the members of the VLAN will receive traffic from the members of the same VLAN. Basically, creating a VLAN from a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch. - Page 50 VLAN – Port Based interface Click to add a new VLAN group(The maximum VLAN group is up to 64 VLAN groups) Entering the VLAN name, group ID and grouping the members of VLAN group And then, click Apply...
- Page 51 VLAN—Port Based Add interface You will see the VLAN displays. button to delete unwanted VLAN. Delete button to modify existing VLAN group. Edit [NOTE] Remember to execute the ―Save Configuration‖ action, otherwise the new configuration will lose when switch powers off.
-
Page 52: 802.1Q Vlan
802.1Q VLAN Tagged-based VLAN is an IEEE 802.1Q specification standard. Therefore, it is possible to create a VLAN across devices from different switch venders. IEEE 802.1Q VLAN uses a technique to insert a ―tag‖ into the Ethernet frames. Tag contains a VLAN Identifier (VID) that indicates the VLAN numbers. -
Page 53: Group Configuration
802.1q VLAN interface Group Configuration Edit the existing VLAN Group. Select the VLAN group in the table list. Click Edit... -
Page 54: Rapid Spanning Tree
Group Configuration interface You can Change the VLAN group name and VLAN ID. Click Apply Group Configuration interface Rapid Spanning Tree The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol and provides for faster spanning tree convergence after a topology change. The system also supports STP and the system will auto detect the connected device that is running STP or RSTP protocol. -
Page 55: Rstp - System Configuration
RSTP - System Configuration User can view spanning tree information about the Root Bridge User can modify RSTP state. After modification, click button Apply RSTP mode: user must enable or disable RSTP function before configure the related parameters ... -
Page 56: Rstp - Port Configuration
RSTP System Configuration interface RSTP - Port Configuration You can configure path cost and priority of every port. 1. Select the port in Port column. 1. Path Cost: The cost of the path to the other bridge from this transmitting bridge at the specified port. - Page 57 RSTP Port Configuration interface 4. Admin Edge: The port directly connected to end stations cannot create bridging loop in the network. To configure the port as an edge port, set the port to ―True‖ status. 5. Admin Non Stp: The port includes the STP mathematic calculation. True is not including STP mathematic calculation.
-
Page 58: Pro-Ring System
Pro-Ring System X-Ring provides a faster redundant recovery than Spanning Tree topology. The action is similar to STP or RSTP, but the algorithms not the same. In the X-Ring topology, every switch should enable X-Ring function and assign two member ports in the ring. Only one switch in the X-Ring group would be set as a master switch that would be blocked, called backup port, and another port is called working port. - Page 59 Enable Coupling Ring: To enable the coupling ring function. Marking the check box to enable the coupling ring function. Coupling port: Assign the member port. Control port: Set the switch as the master switch in the coupling ring. ...
-
Page 60: Snmp Configuration
SNMP Configuration Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth. Network management systems learn of problems by receiving traps or change notices from network devices implementing SNMP. -
Page 61: Trap Configuration
SNMP System Configuration interface Trap Configuration A trap manager is a management station that receives traps, the system alerts generated by the switch. If no trap manager is defined, no traps will issue. Create a trap manager by entering the IP address of the station and a community string. To define management stations as trap manager and enter SNMP community strings and selects the SNMP version. -
Page 62: Snmpv3 Configuration
Trap Managers interface SNMPV3 Configuration Configure the SNMP V3 function including Context Table, User Profile, Group Table, Access Table and MIBView Table. Context Table Configure SNMP v3 context table. Assign the context name of context table. Click to add context name. Click to remove unwanted context name. - Page 63 SNMP V3 configuration interface...
-
Page 64: Group Table
Group Table Configure SNMP v3 group table. Security Name (User ID): assign the user name that you have set up in user table. Group Name: set up the group name. Click to add context name. Click to remove unwanted context name. -
Page 65: Qos Configuration
QoS Configuration You can configure Qos mode, 802.1p priority [7-0] setting, Static Port Ingress Priority setting and TOS setting. Select the Qos Mode: Select the Qos policy rule Disable QoS Priority: The default status of Qos Priority is disabled. ... - Page 66 QoS Configuration interface...
-
Page 67: Igmp Configuration
IGMP Configuration The Internet Group Management Protocol (IGMP) is an internal protocol of the Internet Protocol (IP) suite. IP manages multicast traffic by using switches, routers, and hosts that support IGMP. Enabling IGMP allows the ports to detect IGMP queries and report packets and manage IP multicast traffic through the switch. -
Page 68: 802.1X/Radius Configuration
IGMP Configuration interface LLDP LLDP (Link Layer Discovery Protocol) function allows the switch to advertise its information to other nodes on the network and store the information it discovers. LLDP Protocol: Disable or enable LLDP function. LLDP Interval: Set the interval of learning the information time in second. ... -
Page 69: System Configuration
802.1x is an IEEE authentication specification that allows a client to connect to a wireless access point or wired switch but prevents the client from gaining access to the Internet until it provides authority, like a user name and password that are verified by a separate server. - Page 70 Disable, Accept, Reject and Authorize. Use ―Space‖ key change the state value. Reject: the specified port is required to be held in the unauthorized state. Accept: the specified port is required to be held in the Authorized state. ...
-
Page 71: Misc Configuration
Misc Configuration Quiet Period: set the period during which the port doesn‘t try to acquire a supplicant. TX Period: set the period the port wait for retransmit next EAPOL PDU during an authentication session. Supplicant Timeout: set the period of time the switch waits for a supplicant response to an EAP request. -
Page 72: Static Mac Address
Static MAC Address You can add a static MAC address; it remains in the switch's address table, regardless of whether the device is physically connected to the switch. This saves the switch from having to re-learn a device's MAC address when the disconnected or powered-off device is active on the network again. -
Page 73: Mac Filtering
MAC Filtering By filtering MAC address, the switch can easily filter pre-configure MAC address and reduce the un-safety. You can add and delete filtering MAC address. MAC Filtering interface MAC Address: Enter the MAC address that you want to filter. VID: Type in the VID of the MAC address. -
Page 74: Access Control List
All MAC Address interface Access Control List Group Id: Type in the Group ID from 1 to 255. Action: Permit and Deny. VLAN: Select any or a particular VID. Packet type: Select packet type – IPv4 or Non-IPv4 ... -
Page 75: Factory Default
Access Control List interface Factory Default Reset switch to default configuration. Click to reset all configurations to the Reset default value. Factory Default interface... -
Page 76: Save Configuration
Save Configuration Save all configurations that you have made in the system. To ensure the all configuration will be saved. Click to save the all configuration to the flash Save memory. Save Configuration interface System Reboot Reboot the switch in software reset. Click to reboot the system. -
Page 77: Troubleshooting
6. Troubleshooting This section is intended to help you solve the most common problems on the 3-slot intelligent chassis switch. Incorrect connections The switch port can auto-detect straight or crossover cable when you link switch with other Ethernet device. For the RJ-45 connector should use correct UTP or STP cable, 10/100Mbps port use 2-pair twisted cable and Gigabit 1000T port use 4-pair twisted cable. -
Page 78: Diagnosing Led Indicators
at any time. Data path loops will cause broadcast storms that will severely impact your network performance. Diagnosing LED Indicators The Switch can be easily monitored through panel indicators to assist in identifying problems, which describes common problems you may encounter and where you can find possible solutions. -
Page 79: Technical Specification
7. Technical Specification This section provides the specifications of the 3-slot intelligent chassis switch, and the following table lists these specifications. IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX/100BASE-FX IEEE802.3z Gigabit SX/LX IEE802.3ab Gigabit 1000T IEEE802.3x Flow Control and Back pressure Standard IEEE802.3ad Port trunk with LACP IEEE802.1d Spanning tree protocol IEEE802.1w Rapid Spanning tree protocol IEEE802.1p Class of service... - Page 80 (Yellow) MINI GBIC: Link/Activity(Green), 1000Mbps (Green) RS-232 console: Female DB-9 8-port 10/100TX module: RJ-45 8-port 100FX(Multi /Single Mode) module: SC Connector 8-port 100SFP module: SFP 2 Gigabit Copper + 2 MINI GBIC Combo: 2 x RJ-45 + 2 x 3.3v MINI GBIC ...
- Page 81 Ventilation 2 x DC cooling fan with auto-detect function -0 ℃ ~45 ℃ , 5%~95%RH Operating temperature -40 ℃ ~70 ℃ , 5% ~ 95% RH Storage temperature FCC Class A, CE Safety UL, cUL, CE/EN60950-1...
