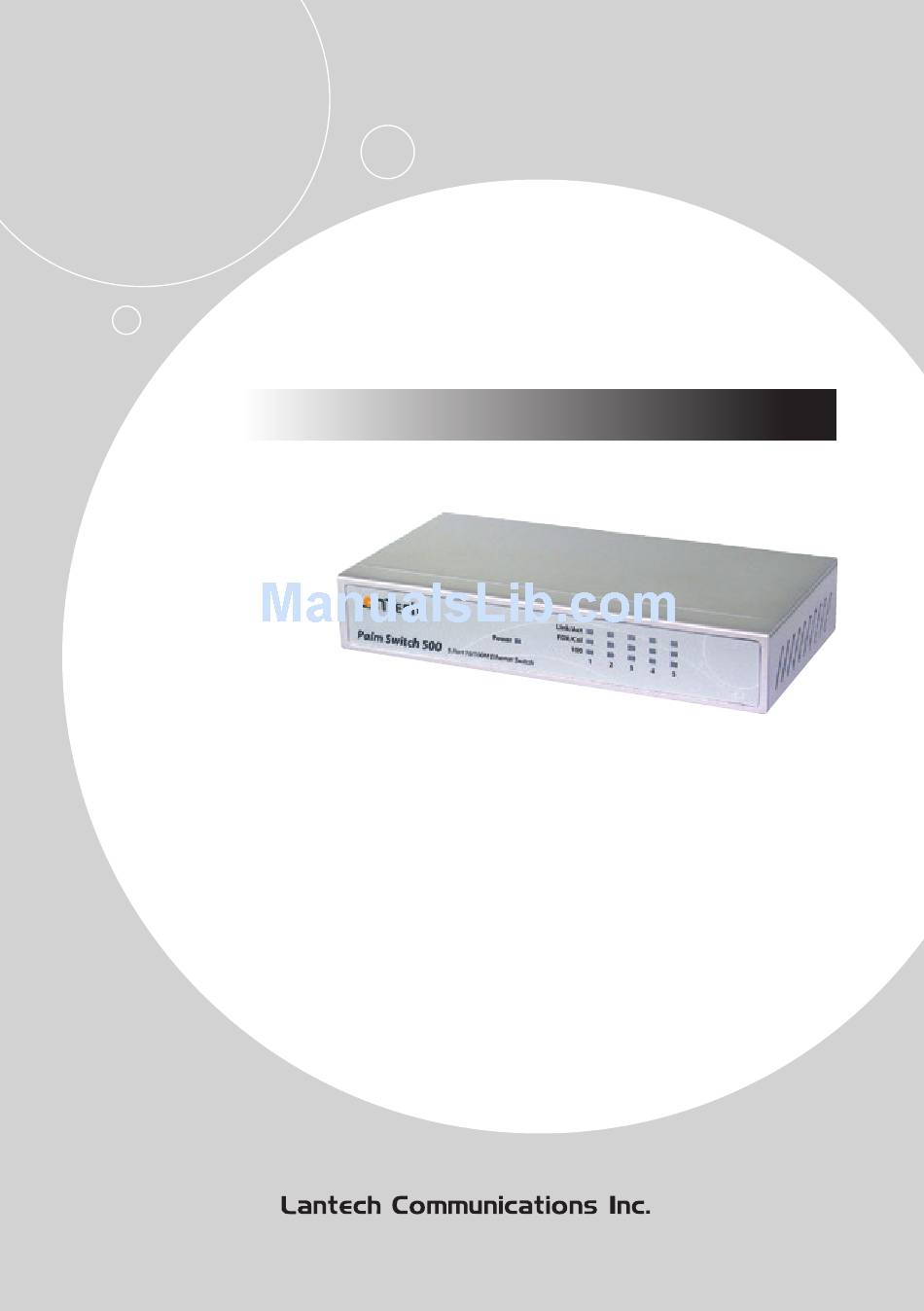

Page 1: User Guide
Switch 500 palm 5 Port 10/100 Base-TX Switch with Auto MDI/MDI-X User Guide Rev. 1.0 June, 2003... - Page 2 Fast Ethernet switching function that allows high-performance, low-cost connection. Palm Switch 500 will automatically detect the speed of the device that you plug into it to allow you to use both 10 and 100Mbps device. It features a store-and forward switching and it can auto-learn and store source address.
-
Page 3: Package Contents
- 5TP Auto MDI/MDI-X Switch - DC power Adapter Figure 1-2. Package Contents Compare the contents of your Palm Switch 500 with the standard checklist above. If any item is missing or damaged, please contact your local dealer for service. - Rubber Feet... -
Page 4: Hardware Description
2. Hardware Description This section mainly describes the hardware of the Lantech palm Switch 500 The physical dimensions of the 5-Port Switch is: 128mm(W) X 65mm(D) x 23mm(H) •Front Panel The LED indicators are located on the frond panel of the Switch. They provide a real-time indication of systematic operation status. -
Page 5: Rear Panel
Switch 500 •Rear Panel The Rear Panel of the palm Switch 500 consists of 5x 10/100 N-Way UTP switch ports, and one DC power connector. D C 7 . 5 D C 7 . 5 Figure 2-2. The Rear Panel of the 5-Port Switch - RJ-45 Ports: 5x 10/100N-Way auto-sensing for 10Base-T or 100Base-TX connection. -
Page 6: Network Application
3.Network Application This section provides you a few examples of network topology in which the palm Switch 500 is used, the Switch is design to be used as a desktop or segment switch. The switch automatically learns node address, which are subsequently used to filter and forward all traffic based on the destination address. - Page 7 Switch 500 •Enlarge Your Network You can use Uplink port of the Palm Switch 500 to connect with another hub or switch to interconnect each of your small switched workgroup to form a large switched network. You can connect anyone switch port to hub or switch without crossover cable by the Auto MDI/MDI-X function.
-
Page 8: Troubleshooting
4. Trouble Shooting The Palm Switch 500 can be easily monitored through panel indicators to assist in identifying problems. This section describes common problems you may encounter and where you can find possible solutions. •Diagnosing LED Indicators If Link indicator does not light up after making a connection, you may check whether network interface (e.g., a network adapter card on the... -
Page 9: Technical Specification
Switch 500 5.Technical Specification This section provides the specifications of the palm Switch 500 : •Specification Standards Compliance Protocol Max Forwarding Rate and Max Filtering Rate LED Indicators Network Cables Dimensions Operating Temperature Operating Humidity External Power Supply Power Consumption IEEE 802.3 10BASE-T Ethernet,... - Page 10 • Federal Communications commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC rules. These limits are designed to pro reasonable protection against harmful interference in a residential installation. This equipments generates, uses and can radiate radio frequency energy and, if not stalled and used in accordance with the instruction, may cause harmful interference to radio communications.
- Page 11 Switch 500...
- Page 12 3F, No.8, Lane 345, Yang-Kuang St., Nei-Hu Dis., 114, Taipei, Taiwan, R.O.C. tel: +886-2-2659-1800 fax: +886-2-2659-1801 e-mail: service@mail.lantech.com.tw http://www.lantech.com.tw...
