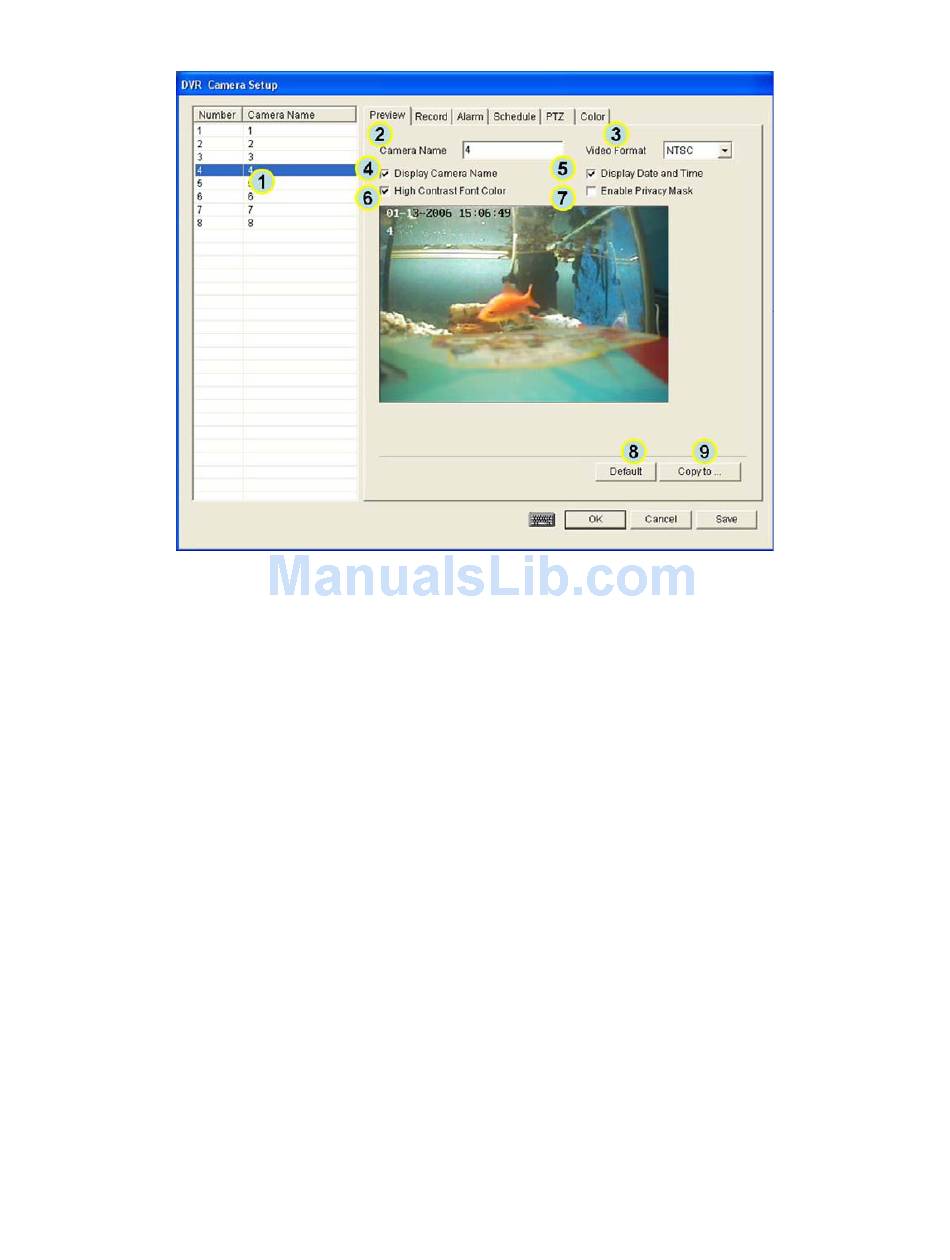

Figure 2-6 DVR camera preview configuration interface
1) Click to select one camera to modify the configuration.
Notice: you can select one camera only at a time. But you can copy or apply a camera's
configuration to multiple cameras or channels by using [Copy to] feature.
2) Channel name: describes the camera's name here. Camera name should be less than
20 characters.
3) Video Format: click to choose the video format here: NTSC or PAL.
4) Display Camera Name: click to select this option to display camera name on the video
picture.
5) Display Date and Time: click to select this option to display date and time on the video
picture.
6) High Contrast Font Color: click to select this option to ensure camera information such
as camera name, date and time good visibility either in weak or strong light video.
7) Enable Privacy Mask: users can set a specific area as mask area to prevent important
information to be seen by other people, for example, preventing password input area to
be seen in the video. You can drag a rectangular area as the mask area by keep clicking
left key on mouse.
8) Default: click [Default] button to recover back to default preview configuration.
9) Copy to: click [Copy to] to enter "Name" Select channel as figure 2-7. You can click
[select all] to select all the cameras or channels, or you can click the channel number to
select the camera you want to copy configuration to, then press [OK] or [Cancel] to
apply or cancel these changes.
