transmission condition.
2.3.3 Alarm configuration
To enter Alarm Configuration interface, click [Alarm] tab under DVR Camera Setup. See
details as Figure 2-9.

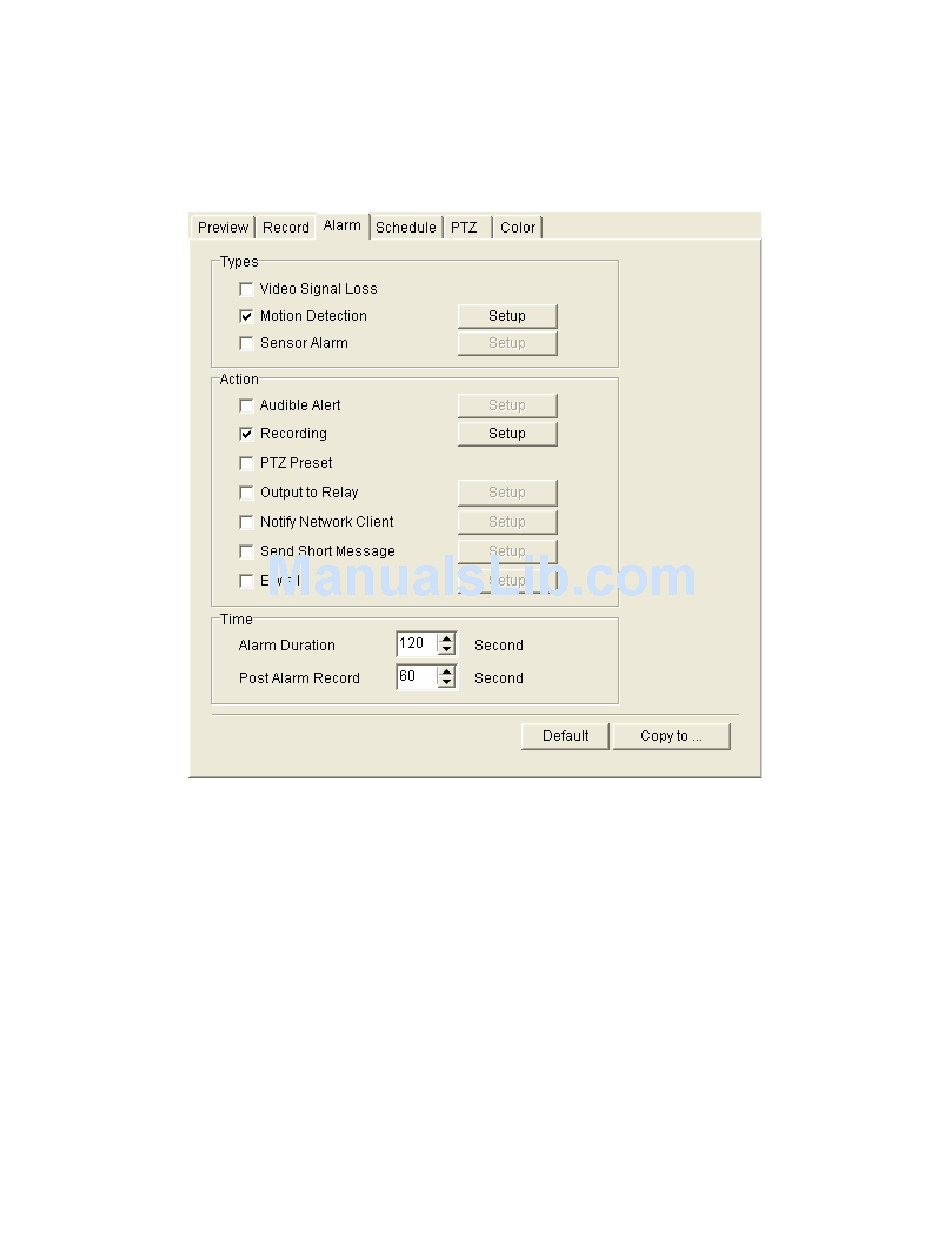

Figure 2-9 Alarm configuration interface
Under Type:
There are three alarm trigger types can be chosen from, i.e. Video signal loss, motion
detection and sensor alarm.
Video signal loss: By click to select this option, alarm will be triggered when video signal is
lost.
Motion Detection: By click to select this option, alarm will be triggered when objects in a
certain area have been moved. To change motion detection parameter, click [Setup] button
just right to [Motion Detection] to enter motion detection interface as follows:
Page 11 of 66
