Button arrangement description (from left to right)
1. Load Map: to create a new map.
2. Delete Map: to delete a map.
3. Add Camera: to place a camera in the map.
4. Delete Camera: to clear all the cameras in the map.
5. Set Camera: to set camera number.
6. Add Sensor: to add a sensor.
7. Delete Sensor: to delete sensor.
8. Set Sensor: to set sensor number.
9. Save: to save a E-map.
10. View map list: to view map list.
11. Exit
12. Click to select this option to pop up window when there is a alarm.
To load a E-map
Follow these steps:
1. Click [Load Map] button, and then choose the figureture as a map.
2. Double click [E-Map] button (just under [Delete Map] and [Add Camera] buttons) to
show this figureture or map.
3. Click [Add Camera] button, a camera icon will be seen in the top left corner of the
map, and then keep pressing [Ctrl] + left mouse key to drag the camera to a location

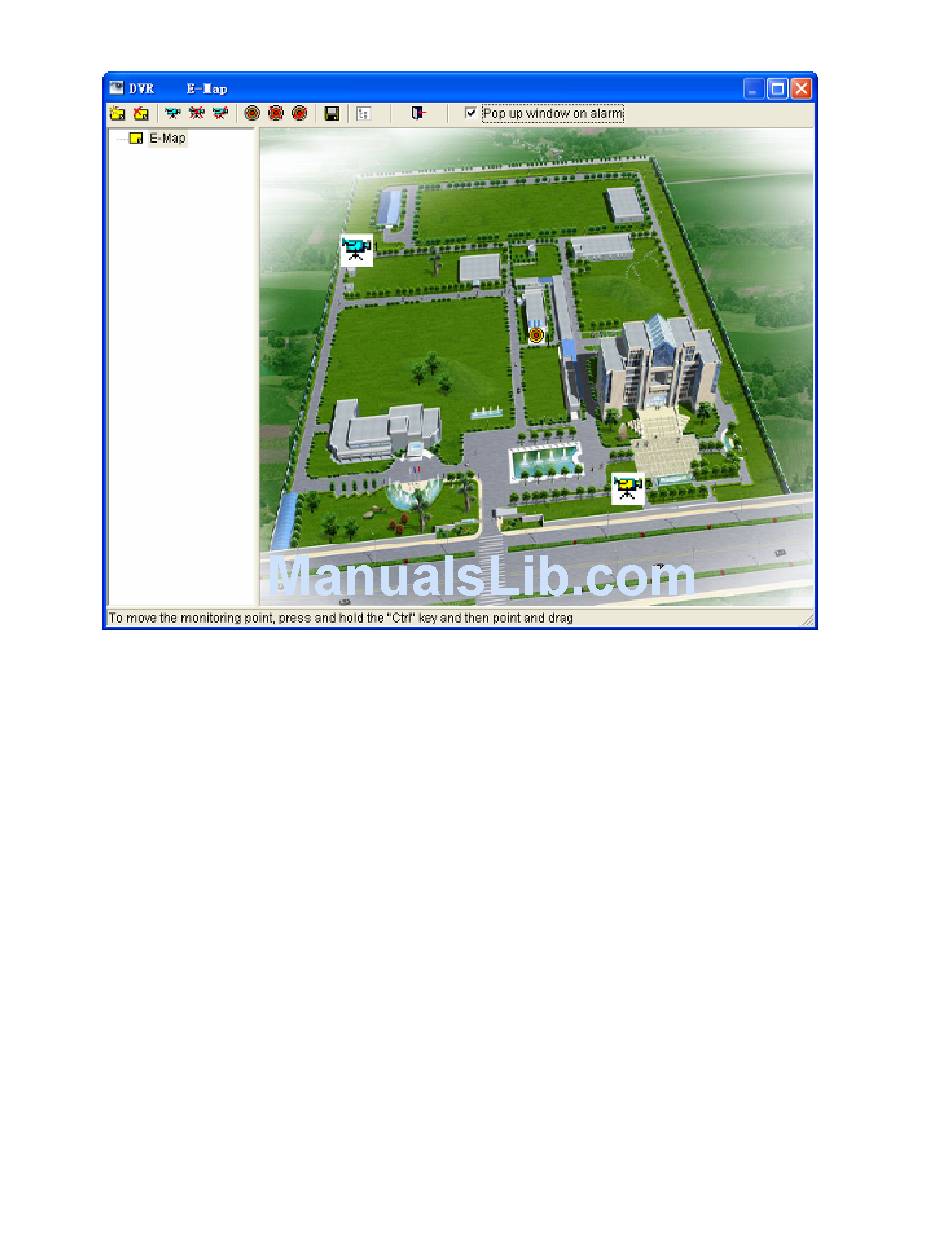

Figure 4-4 E-Map Edit Panel
