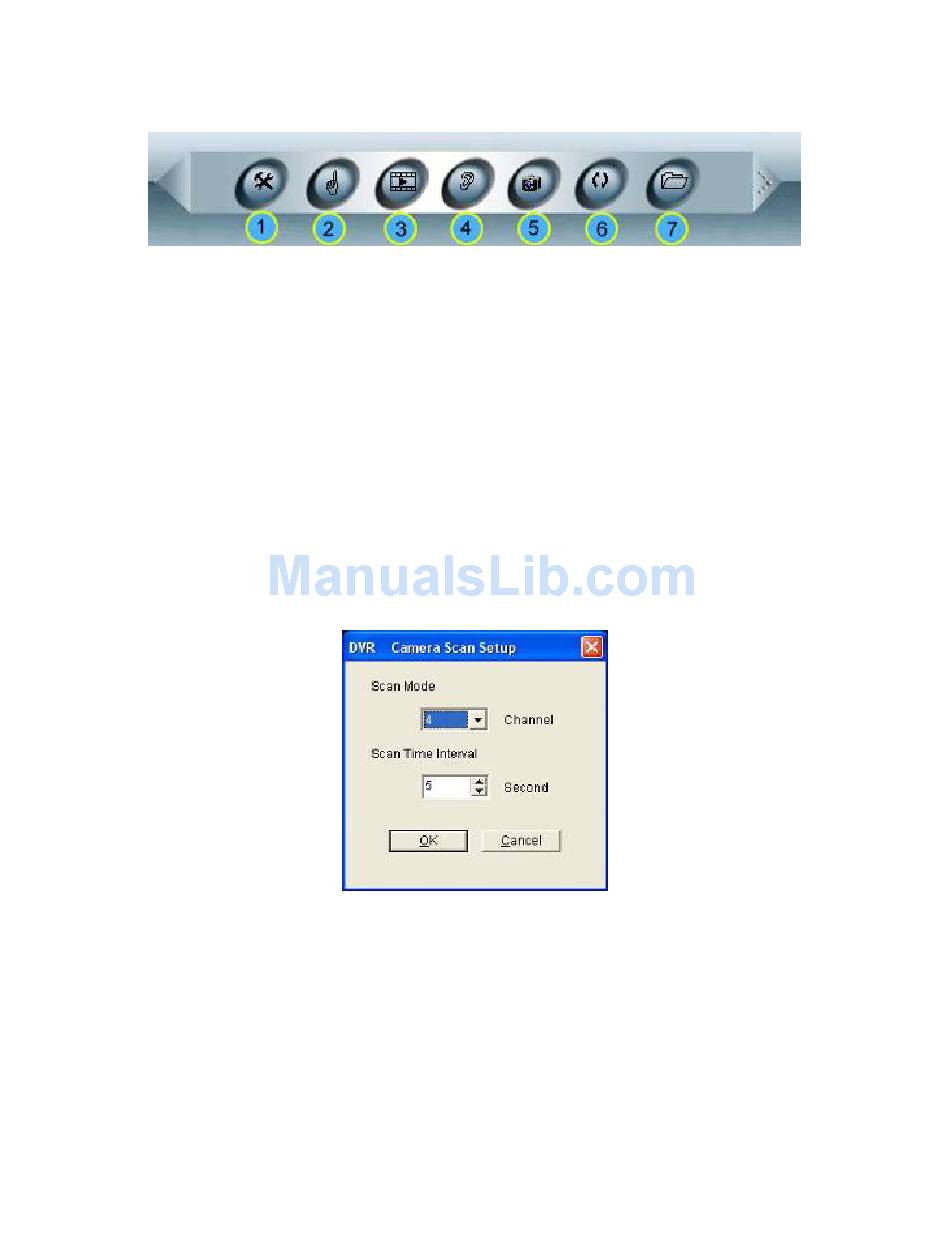

System Control Panel

2.2
1. System Configuration: Configure system parameters, including camera preview
settings, alarm settings, schedule setting, and system server settings, etc.;
For detail information, please refer to 2.3 Camera Setup, 2.4 System Setup, and 2.5
Digital Matrix.
2. Schedule: Press [Schedule] button to start or stop predefined schedule.
3. Playback: Playback the local record files or the record files at remote DVRS.
For detail information, please refer to Chapter 3 Playback Configuration.
4. Monitor: Listen to the real time audio. Press this button to turn on / off this option.
5. Capture: To snapshot current picture, press [Capture].
Note: system capture picture in bmp format.
6. Circulation: Preview the video images circularly. Press [Circulation] to configure it:
7. Others: to manage your DVR system, such as user management, disk management,
click [Others].
For detail information about system management, please refer to Chapter 4 System
Management.

2.3 Camera Setup

Click [System Configuration], then choose [Camera Setup] submenu, you will enter the DVR
Camera Setup interface as follows:
Figure 2-4 System Control Panel
Page 6 of 66
