The left column lists the camera numbers and their names installed in this DVR. You can
choose to configure one camera's parameters by clicking to select the camera number.
The right column shows all the functions and parameters related to camera setup. You can
specify detailed parameter to configure each camera. There are six tabs under [Camera
Setup]:
Preview: specify the parameters about how to preview the camera's video.
Record: specify the settings about recording quality, storage parameters, networking
transmission method, and so on.
Alarm: customize alarm trigger types, corresponding actions and so on.
Schedule: you can define and save automatic work schedules here
PTZ: specify the setting of PTZ here, such as product model, baud rate, COM port
and so on.
Color: create and modify display color patterns here.
2.3.1 Preview configuration
To enter the Preview Configuration Interface, click [Preview] tab in the right column under
DVR camera Setup. See details in Figure 2-6.

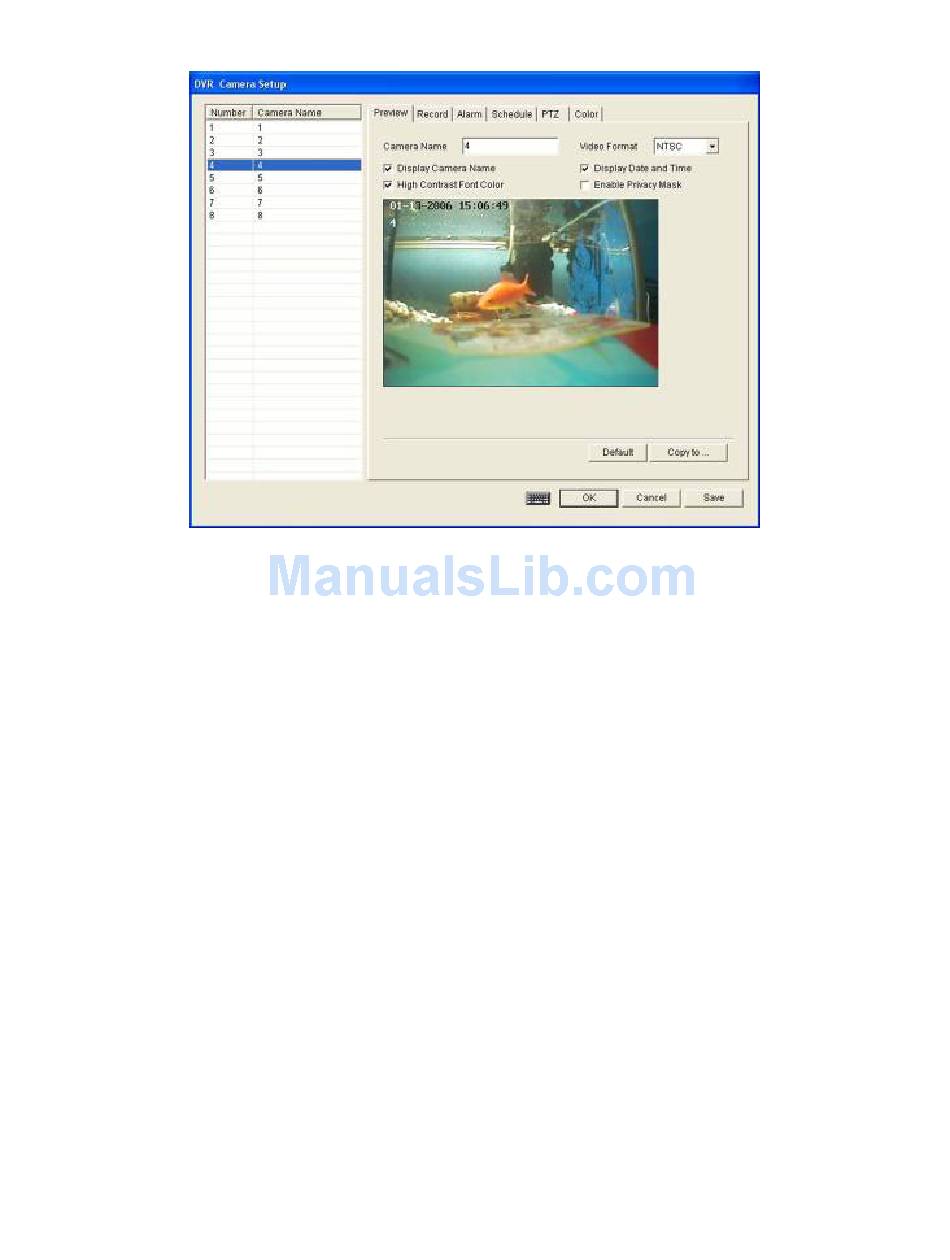

Figure 2-5 DVR Camera Setup Window
Page 7 of 66
