in the map you want.
4. Click [Setup Camera] to set the camera number.
5. The same way to add other cameras and sensors.
6. To pop up E-Map window when alarm triggered, click to select [Popup Window on
alarm].
Note: To load map successfully, be sure to transform figureture to "jpg' format.
To use E-Map
When successfully create a E-Map and select [Popup Window on alarm]. This figureture will
be seen when alarms triggered.
Note: the cameras or sensors in alarm are shown in red.
4.3.2 Voice Broadcast
To use voice broadcast, click [Others], click [Tools], and then click [Voice Broadcast].

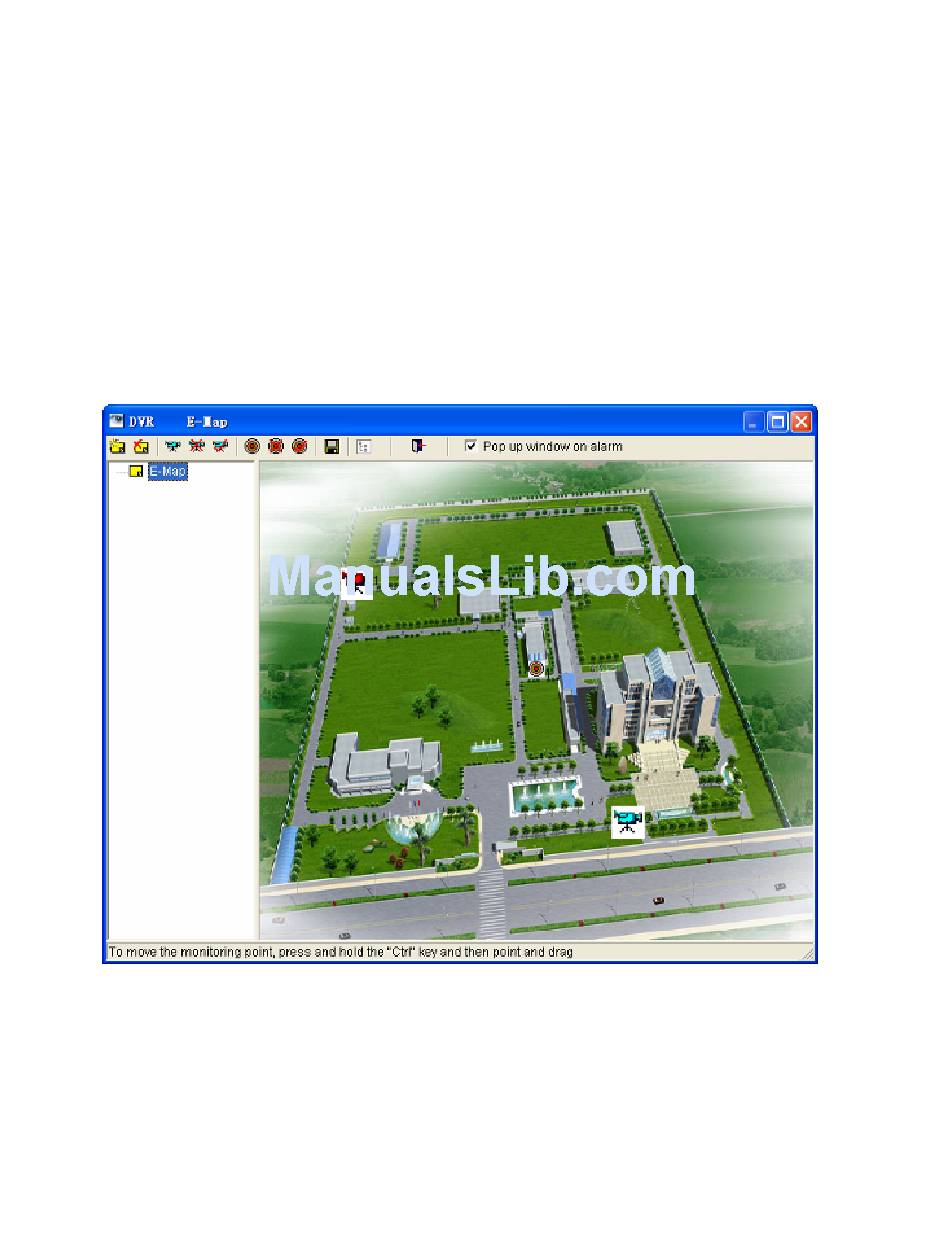

Figure 4-5 E-Map Popup alarm window
Page 46 of 66
