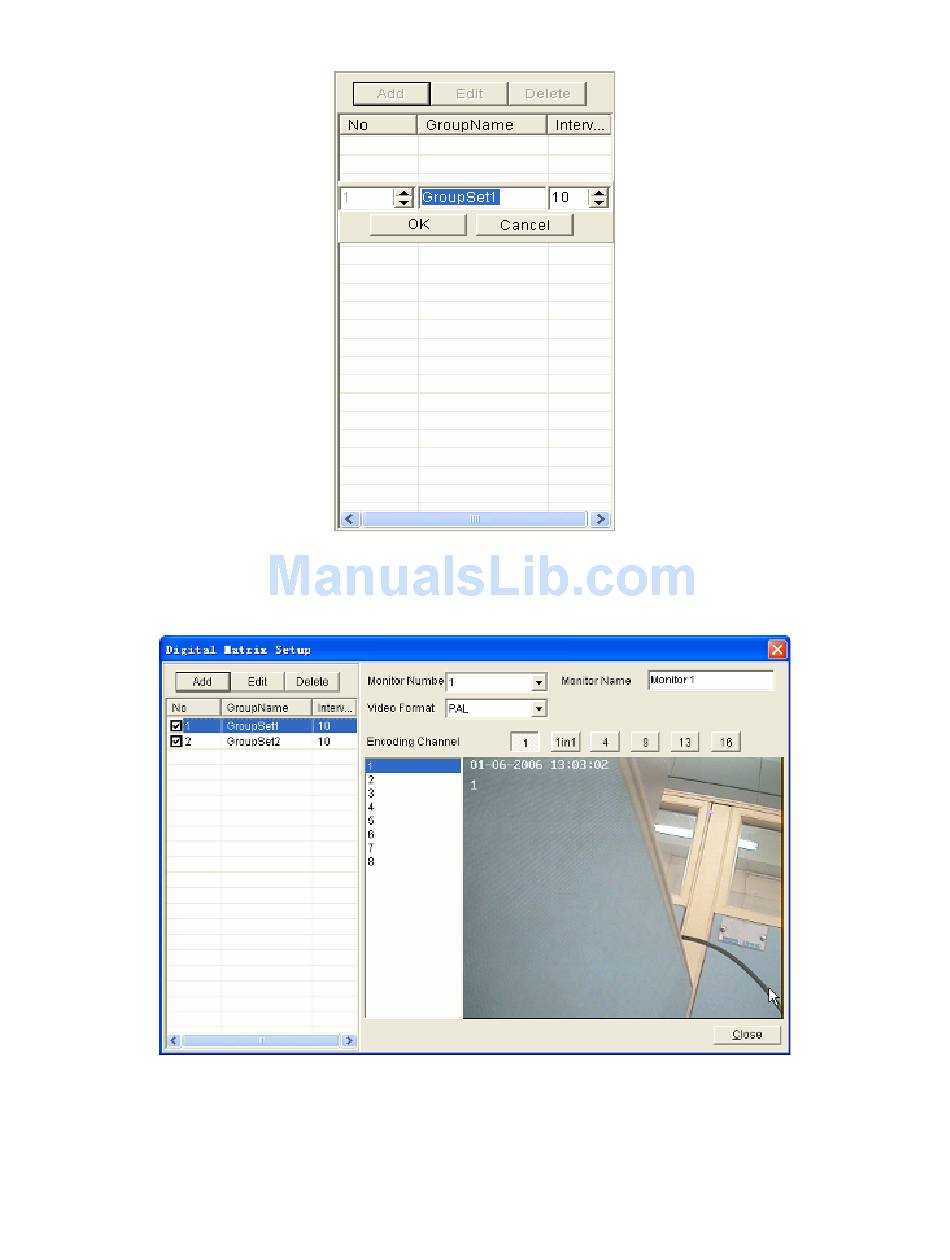

Figure 2-32 To add a digital matrix scheme
When a scheme has been added, turn back to the digital matrix edit windows, as follows:
Figure 2-33 Digital Matrix Scheme Edit Window
Description:
Monitor number: the number of output monitor.
Monitor name: define the name of output monitor.
Video format: choose the video format, PAL or NTSC.
Video division mode: can be chosen from 1 (one video display), 1in1 (Video in Video: one
Page 29 of 66
