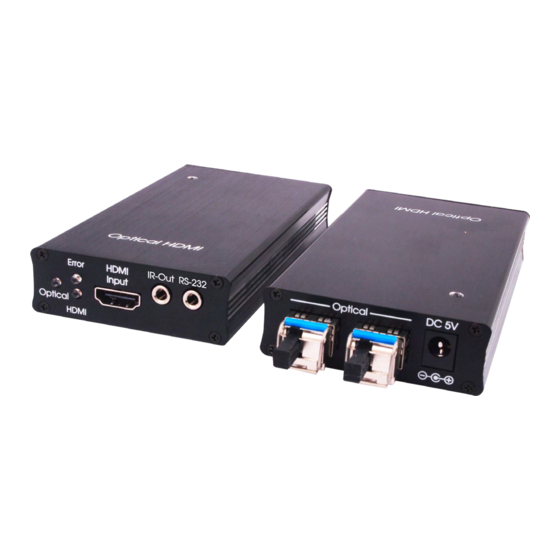

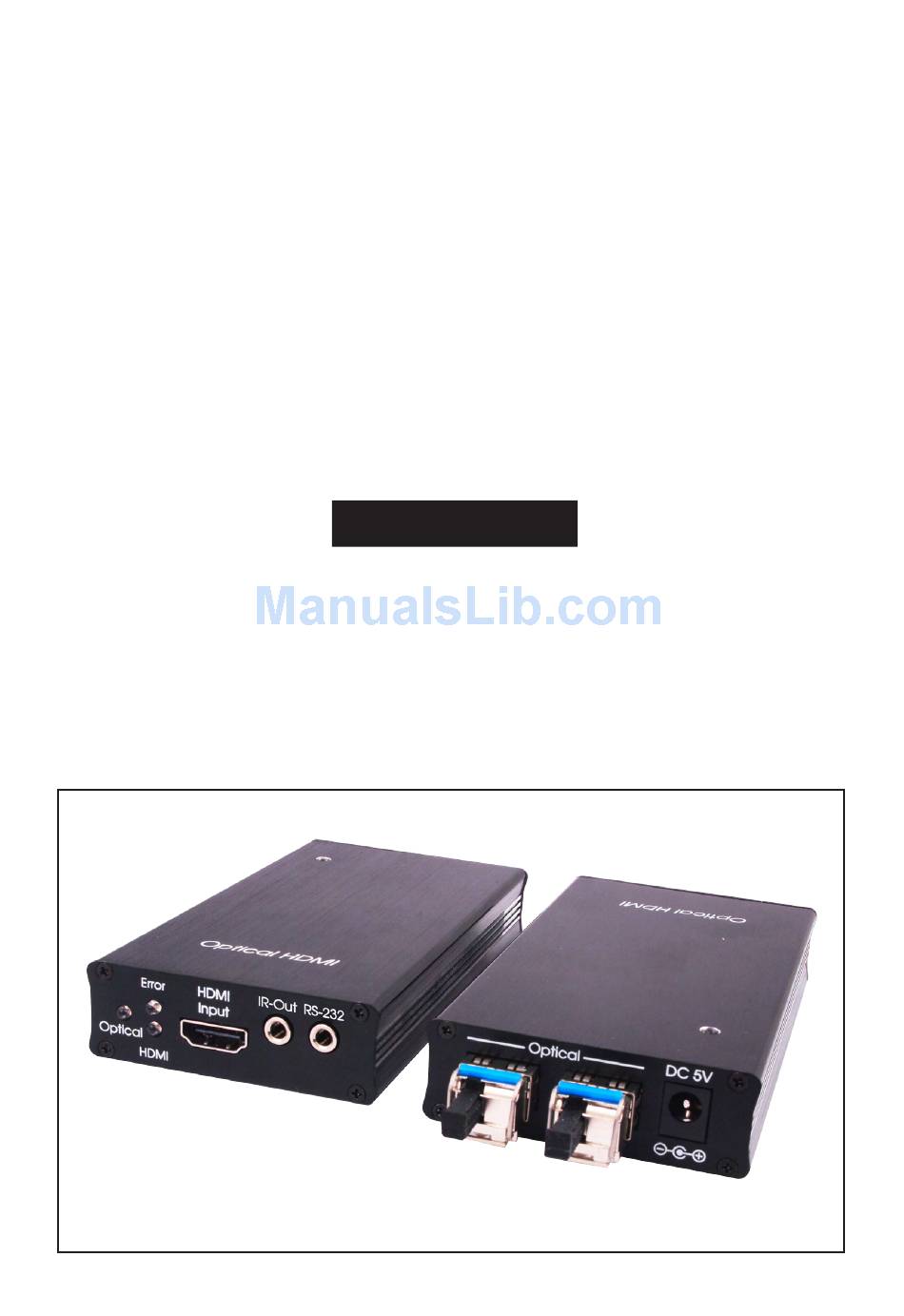

- Page 1 COH-Tx1 & COH-Rx1 HDMI to Optical Transmitter and Receiver Operation Manual COH-Tx1 & COH-Rx1...
-
Page 2: Copyright Notice
Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document. -
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Transmitter .……………..……………………..…...….… Receiver .……………..…………………….…..…...….… Support Timing Chart .......…..………..…..…..…... TV Timing.................. PC Timing................. Connection and Installation ….…………………..…..…..…..Acronyms ….................. -
Page 5: Introduction
1. Introduction While HDMI is becoming more common around the world, some consumers have been wishing for a way to transmit HDMI signals at very long distances. Enter the HDMI to Optical Transmitter and Receiver which uses fiber optical cables to give you a longer transmission distance, up to 300m while also providing you with thinner lighter cables for easy installations. -
Page 6: Specifications
6. Specifications Transmitter Input Port 1 x HDMI, 1 x RS-232, 1 x IR Out Output Port 1 x Duplex Single-Mode Fiber Optical with LC Connector Receiver Input Port 1 x Duplex Single-Mode Fiber Optical with LC Connector Output Port 1 x HDMI, 1 x RS-232, 1 x IR In Dimensions (mm) 114(W) x 65(D) x 26(H) -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Transmitter Front Panel Rear Panel Optical DC 5V HDMI IR-Out RS-232 Error Input Optical Main HDMI ① ③ ② ④ ⑤ ⑥ ⑦ ⑧ ① Optical LED: This LED will illuminate in blue when at least one optical cable is connected and has successfully detected and communicated between Tx &... -
Page 8: Receiver
7.2 Receiver Front Panel Rear Panel DC 5V Optical HDMI IR-In RS-232 Error Output Optical Main HDMI ① ③ ② ④ ⑤ ⑥ ⑦ ⑧ ① Optical LED: This LED will illuminate in blue when at least one optical cable is connected and has successfully detected and communicated between Tx &... -
Page 9: Support Timing Chart
8. Support Timing Chart 8.1 TV Timing VIC Formats Field Rate Picture Aspect Ratio 720x480p 59.94Hz/60Hz 720x480p 59.94Hz/60Hz 16:9 1280x720p 59.94Hz/60Hz 16:9 1920x1080i 59.94Hz/60Hz 16:9 720(1440)x480i 59.94Hz/60Hz 720(1440)x480i 59.94Hz/60Hz 16:9 1920x1080p 59.94Hz/60Hz 16:9 720x576p 50Hz 720x576p 50Hz 16:9 10 1280x720p 50Hz 16:9 11 1920x1080i... -
Page 10: Pc Timing
60 Hz(RB) 64.7 kHz 119.000 MHz CVT Red. Blanking 1920 x 1080 60 Hz 67.5 kHz 148.500 MHz CEA Standard 1920 x 1200 60 Hz(RB) 74.0 kHz 154.000 MHz CVT Red. Blanking 9. Connection and Installation Fiber COH-TX1 COH-RX1 HDTV/Monitor Blu-ray... -
Page 11: Acronyms
Acronyms Acronym Complete Term HDCP High-bandwidth Digital content protection HDMI High-Definition Multimedia Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20110701 MPM-COHRX1TX1...
