1. Euro torch connector
Connect Euro type Mig torch to euro torch connector, align torch connector to machine
connector and then turn retaining ring clockwise to secure.
Ensure torch is secured tightly to avoid weld power problems
To avoid electric shock keep the Mig torch in good condition and replace if any of the
insulation is damaged.
2. Earth / Workpiece connector
Connect the earth lead (negative - ) to this connector.
Insert male connector into socket and twist clockwise until tight.
Secure other end of earth lead to Workpiece via the earth clamp.
9

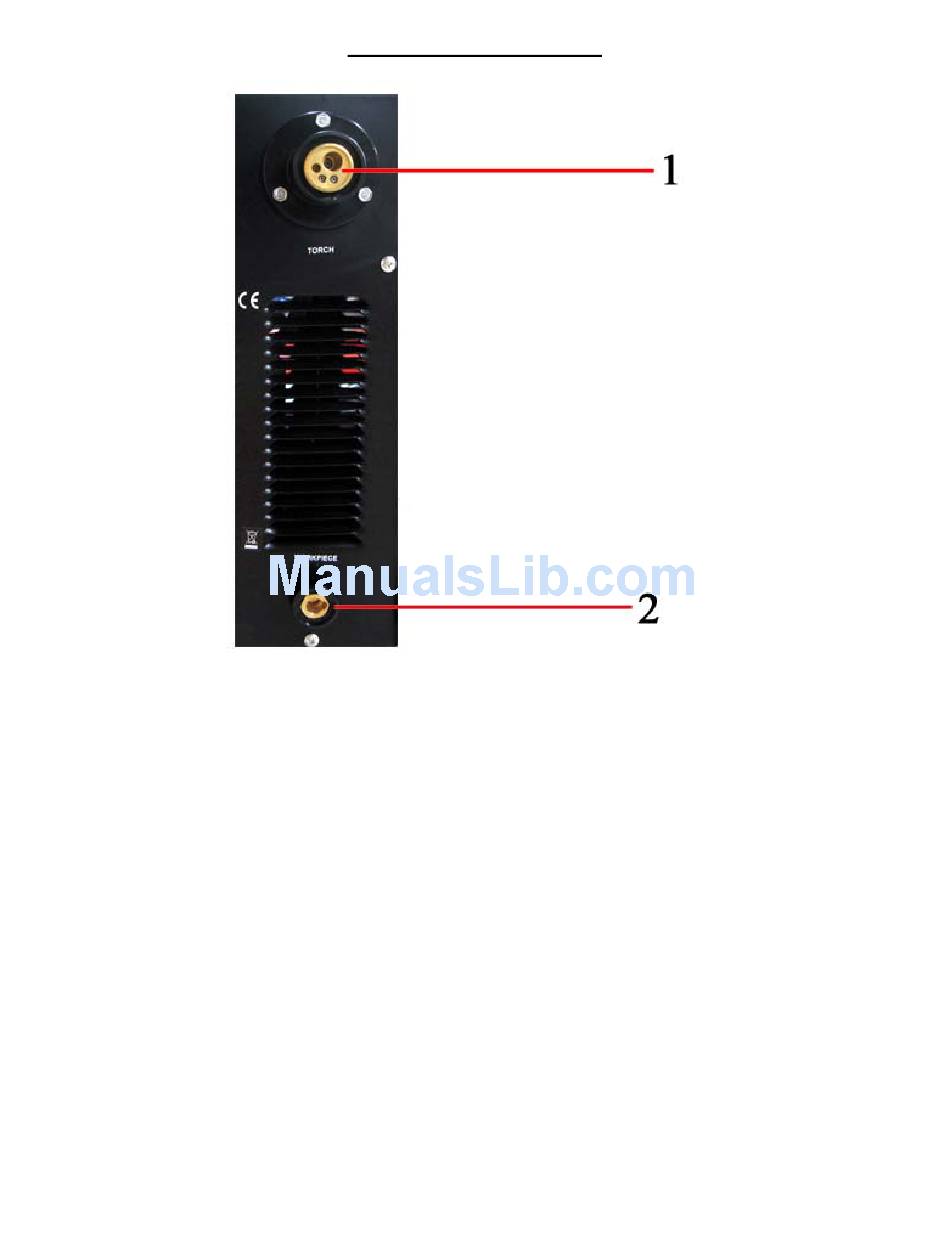

Front machine connections
Fig 2
9
