Summary of Contents for R-Tech TIG160PDC

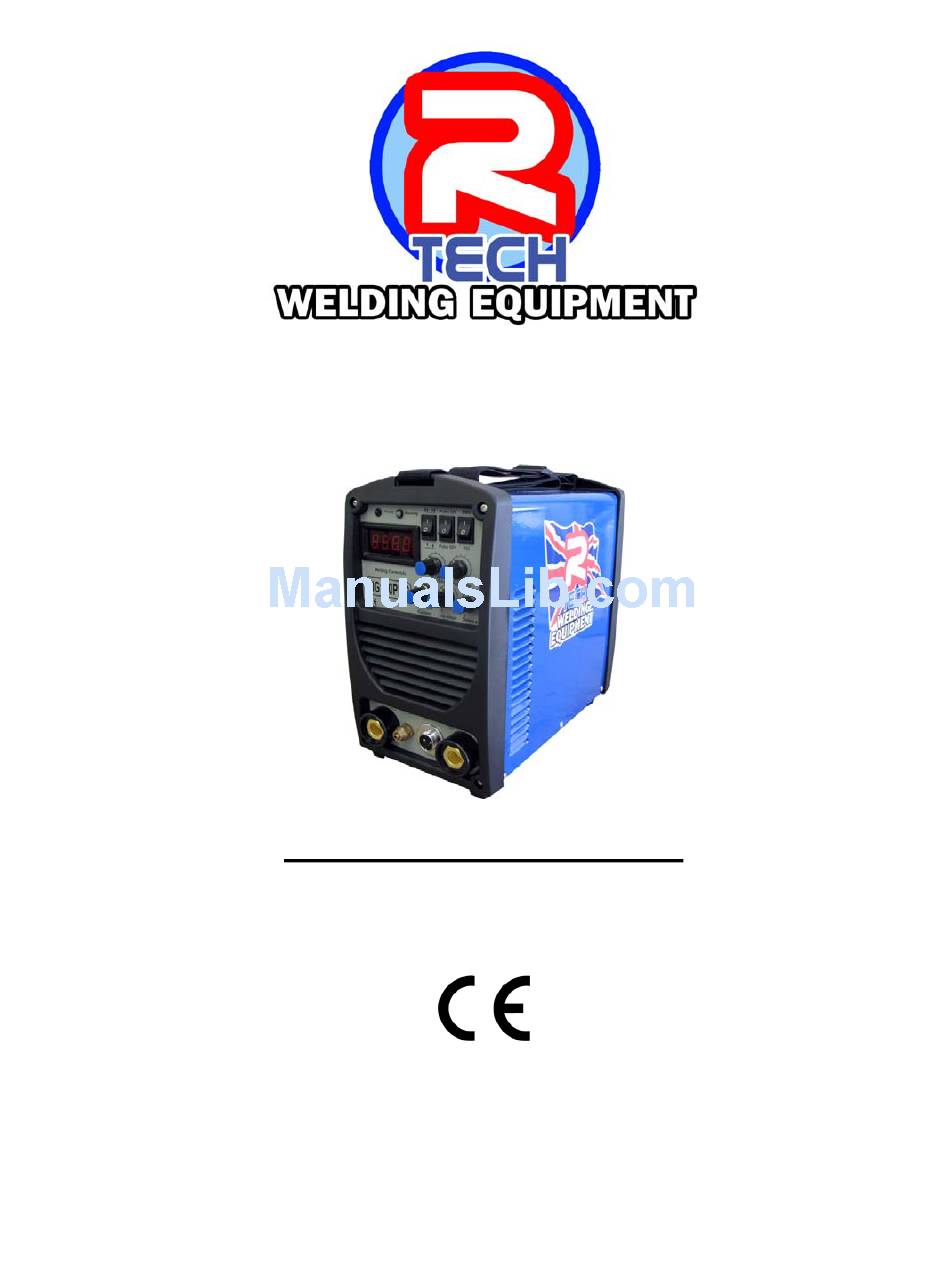

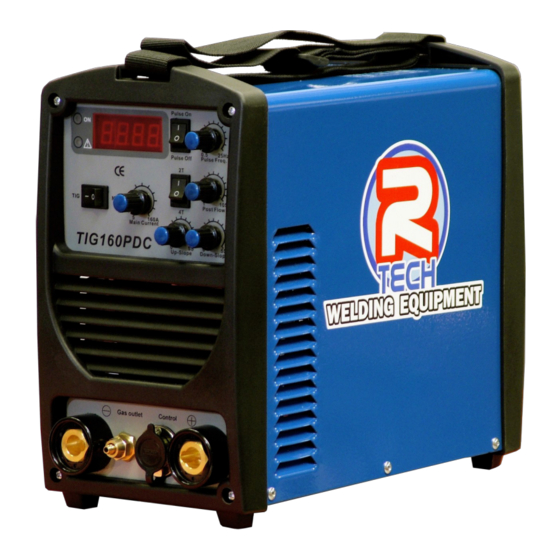

- Page 1 TIG160PDC TIG WELDER OPERATION INSTRUCTIONS...
- Page 3 35% duty cycle. We want you to take pride in operating our Tig160PDC as much pride as we have taken in making this product for you. Please read all information in this manual before operation PLEASE EXAMINE CARTON AND EQUIPMENT FOR DAMAGE IMMEDIATELY When this equipment is shipped, title passes to the purchaser upon receipt from the courier.
- Page 4 Welding Capability – Duty Cycle The R-Tech Tig160PDC is rated at 160 Amps at 35% duty cycle on a ten minute basis. If the duty cycle is exceeded a thermal protector will shut machine off until the machine cools.
-
Page 5: Safety Precautions
Safety Precautions Read entire section before starting installation WARNING! Electric Shock can kill – Only qualified personnel should perform this installation. Turn off input power at the fuse box before working on this equipment. Do not touch electrically live parts. Always connect the machine to an earthed mains supply as per national recommended standards. -
Page 6: Electrical Installation
Read and follow the ‘Electric Shock Warnings’ in the safety section if welding must be performed under electrically hazardous conditions such as welding in wet areas or water on the work piece. Electrical Installation WARNING! ELECTRIC SHOCK CAN KILL Machine grounding and High Frequency Interference Protection This welder must be grounded to earth. - Page 7 Allow machine to sit for 5 minutes minimum to allow the power capacitors to discharge before working inside this equipment. Do not touch electrically live parts The TIG160PDC Inverter Tig Welder requires a 240V 50/60Hz 13amp fused supply. It comes with a 3 metre mains cable attached.
- Page 8 Connections for Tig160PDC Rear machine connections Fig 1 1. Mains input cable Fit required plug as per your electrical installation 2. On/Off Switch 3. Gas input connector Connect input gas hose ensuring connection is tight 4. Earth for chassis If experiencing localized interference when using machine, connect workbench to this point...
-
Page 9: Connections For Tig (Gtaw) Welding
Connections for TIG (GTAW) Welding Fig 2 1. Negative power connector - Connect Tig Torch Dinze to power connector by inserting and twisting until tight 2. Gas outlet Connect the torch gas hose 3. Positive power connector + Connect the earth lead to by inserting and twisting until tight and the earth clamp to work/bench 4. -
Page 10: Connections For Stick Mma (Smaw) Welding
Connections for STICK MMA (SMAW) Welding Fig 3 1. Negative power connector - Connect the earth lead to by inserting and twisting until tight and the earth clamp to work/bench. 2. Gas Outlet – NOT used in MMA mode 3. Positive power connector + Connect the electrode holder by inserting and twisting until tight 4. -
Page 11: Controls And Settings
Controls and Settings Fig 4 1. Up slope Adjustment 0-5 seconds. The main welding current raises from minimum amperage to main current selected in time selected when weld started 2. Down slope Down-Slope adjustment 0-5 seconds. The main welding current decreases from main amperage to minimum amperage in time selected when weld finished 3. - Page 12 4. Pulse frequency adjustment This sets how often pulse will occur and is adjustable from 0.5Hz to 25Hz. 5. Gas post flow adjustment Adjustable from 1 – 10 seconds. The gas keeps flowing after weld has finished, this cools & stops tungsten from getting contaminated.
- Page 13 When the trigger mode is in the 4 step position the following sequence will occur Press and hold the tig torch switch to start sequence. The machine will open gas valve to start flow of shield gas, after a 0.5 seconds pre-flow time to purge air from torch hose the welding output of machine will be turned on and the arc will be started.
-
Page 14: Operating Machine
Operating machine SAFETY PRECAUTIONS WARNING! ELECTRIC SHOCK CAN KILL Do not touch electrically live parts or electrode with skin or wet clothing. Insulate yourself from work and ground Always wear dry insulating gloves WARNING! FUMES AND GASES can be dangerous Keep your head out of fumes &... - Page 15 Welding in TIG mode – No Pulse 1. Connect the Tig Torch to machine, connect earth lead to machine & work piece. 2. Set the TIG/MMA switch to TIG 3. Set Pulse Switch to Off position 4. Select 2 or 4 way torch operation 5.
-
Page 16: Tig Tungsten Size / Amperage Guide
Tig tungsten size / amperage guide All values below are based on using pure argon shielding gas. Other current values may be employed depending on the shielding gas and application ELECTRODE RATINGS Electrode Diameter (mm) 2% Thoriated on DC Pure Tungsten on DC Zirconiated 0.8% Tungsten (amps) (amps) -
Page 17: Maintenance
5. The fan motor has sealed bearings which requires no maintenance Troubleshooting Service & repair should only be performed by R-Tech welding trained personnel. Unauthorised repairs performed on this welding equipment may result in danger or injury to the technician and machine operator and will invalidate your warranty. -
Page 18: Tig Welding Problems
R-Tech by phone. Contact details can be found on front of this manual and our website Tig welding problems • No output - Power light is not lit Check machine on/off switch is in the ‘on’ position Check Input power to machine... - Page 19 • Poor weld penetration Check condition of earth lead and clamp and ensure clamp is connection via a clean area on work piece Check condition of tig torch, try other tig torch • Machine stuck on minimum amps when welding although higher amperage has been Make sure machine has not been set to 4-way operation as when in this mode when you press torch switch you get minimum amps and when you let go of switch machine will go to maximum amps set.
- Page 20 • No HF when torch trigger pressed, no blue spark between HF points Examine and clean HF points with clean dry low pressure air line HF PCB faulty – Contact R-Tech for repair MMA Stick welding problems • Stick electrode ‘blasts off’ when arc is struck...
