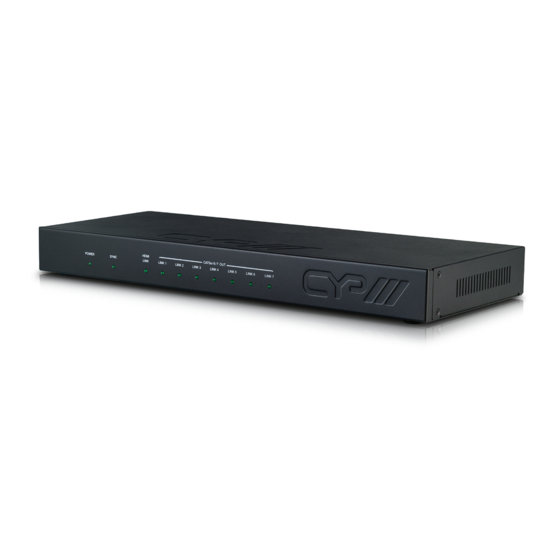

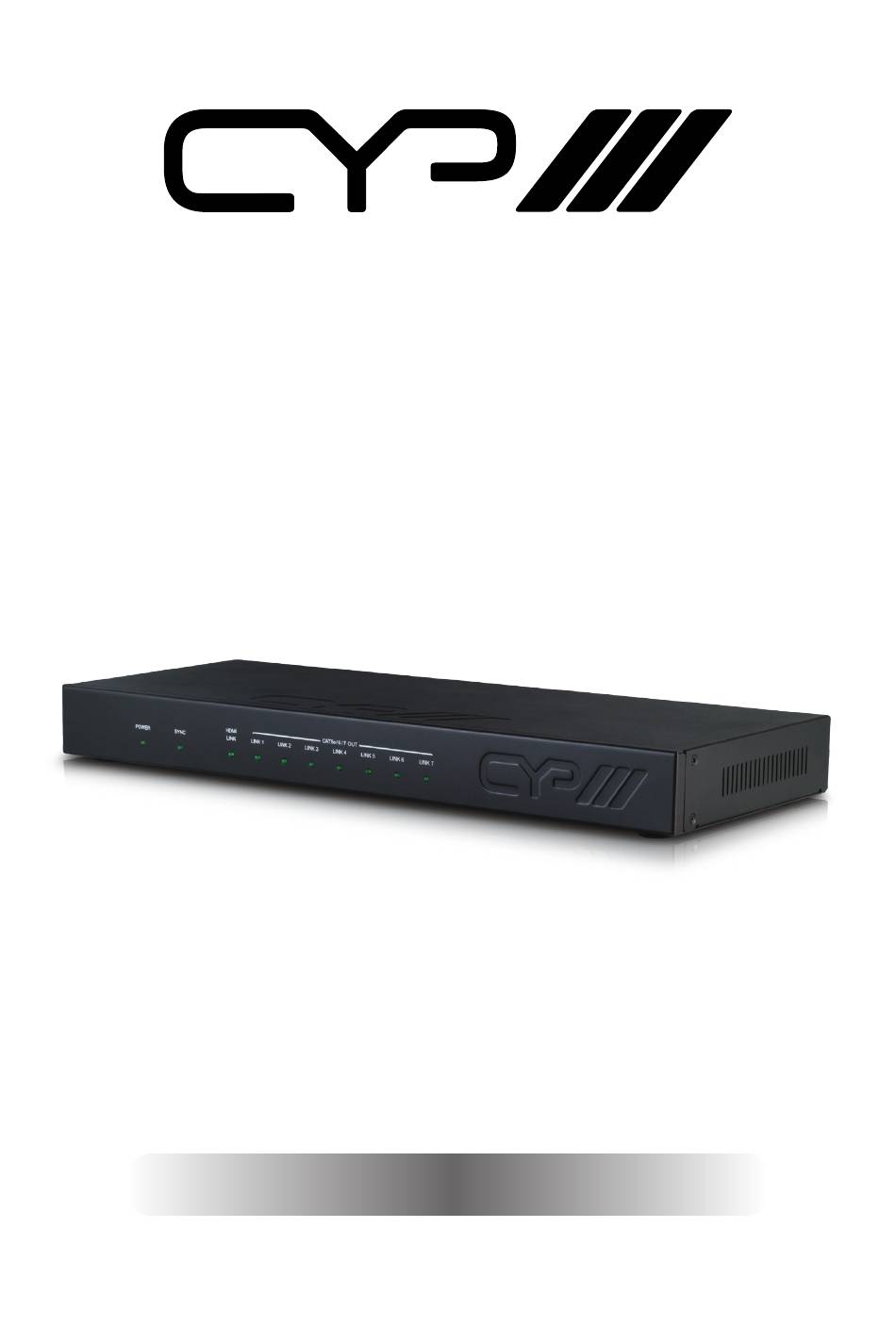

- Page 1 PU-1H7HBTL 1 HDMI to 7 HDBaseT™ LITE Splitter (60m) including additional HDMI output Operation Manual Operation Manual...
- Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........3 6.3 IR Cable Pin Assignment....5 7. -
Page 5: Introduction
1. INTRODUCTION The HDMI over HDMI and CAT5e/6/7 Transmitter can support resolutions up to 1080p Full HD, 4Kx2K timing, 3D and multi-channel digital audio formats to one HDTV and seven CAT5e/6/7 outputs. The HDMI can be connected to HDMI display for instant nearby display and the CAT5e/6/7 can be connected to CAT5e/6/7 to HDMI Receivers for distance up to 60 meters. -
Page 6: Features
5. FEATURES • HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant • The HDMI and CAT5e/6/7 outputs are playing the same source simultaneously • Supports one HDTV and seven CAT5e/6/7 outputs • Supports data rate from 250Mbps up to 3Gbps •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CAT5e / 6 / 7 OUT HDMI POWER SYNC LINK LINK 1 LINK 2 LINK 3 LINK 4 LINK 5 LINK 6 LINK 7 POWER LED: Once the power supply is connected the LED will illuminate. - Page 8 the equipment to be controlled. EDID STD/TV: The default factory setting is on TV, leave as it is when the display is properly. The unit will detect the 1 CAT5e/6/7 output’s EDID when it obtain a 4Kx2K EDID and send out the signal accordingly to other output ports.
-
Page 9: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 3.3 V IR Blaster Signal IR Extender IR Signal Power 3.3 V Grounding... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray or PS3 Player HDMI CAT5e / 6 / 7 OUT HDMI IN HDMI OUT IR IN IR OUT DC 24V EDID SERVICE 1.5m 60° HDMI IR BLASTER IR2 Blaster Power 60° IR1 Extender HDMI Receiver IR RECEIVER 3D TV/Display 3D TV/Display... -
Page 11: Specifications
8. SPECIFICATIONS Video Bandwidth 300Mbps/10.2Gbps Input ports 1 x HDMI, 1 x IR IN, 1 x USB (Service only) Output ports 1 x HDMI, 1 x IR OUT, 7 x CAT5e/6/7 Resolution Up to 4Kx2K (3840x2160@30Hz/4096x2160@24Hz) HDMI Input Cable Dis- tance CAT5e/6/7 Output Up to 60m... -
Page 12: Cat5E/6/7 Cable Specification
8.1 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 60 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) lower than 5.3 Gbps or below 225MHz TMDS clock) 40 m >225 MHz... - Page 13 www.cypeurope.com...
