Summary of Contents for CYP PU-1109

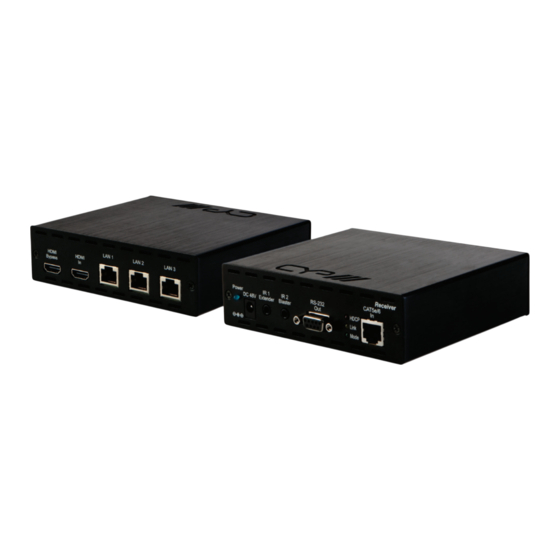

- Page 1 PU-1109 HDMI & IP Network over Single CAT6 Transmitter & Receiver Set (100m) OPERATION MANUAL...
- Page 2 Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 3: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… D-Sub 9 Pin Definitions .......…..……..…..…..…... Connection and Installation ….…………………..…..…..…..Acronyms ….................. -
Page 4: Introduction
1. Introduction The device that can make your home or office more efficient, this unit of HDMI with & IP over Single CAT5e/CAT6 can transmit and receive uncompressed audio/video, sending 3 different internet protocol, control through the built-in RS-232 and IR ports over 100M even more, it is adaptor free from the transmitter side. -
Page 5: Features
5. Features HDMI 1.4 (with Audio Return Channel), HDCP & DVI Compliant Supports HDCP repeater and CEC function Simultaneously uncompressed data sending over a single 100M/328ft with CAT6 cable or 80M/262ft with CAT5e cable Uncompressed video 1080p, 60Hz, 48bits, 3D and 4K x 2K ... -
Page 6: Specifications
6. Specifications Transmitter Input 1 x HDMI , 1 x HDMI Bypass, 3 x Ethernet, 1 x RS-232, 1 x IR Extender, 1 x IR Blaster Output 1 x CAT5e/6 Receiver Input 1 x CAT5e/6 Output 1 x HDMI, 1 x RS-232, 3 x Ethernet, 1 x IR Extender, 1 x IR Blaster ESD Protection Human Body Model: ±... -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Front Panel Transmitter Receiver HDMI to CAT5e/6 with LAN/PoE/IR CH-1109TX Transmitter CAT5e/6 to HDMI with LAN/PoE/IR CH-1109RX Receiver CAT5e/6 CAT5e/6 Power IR 1 IR 2 RS-232 Power IR 1 IR 2 RS-232 DC 48V Extender Blaster Blaster... -
Page 8: Rear Panel
7.2 Rear Panel LAN 1 LAN 2 LAN 3 LAN 1 LAN 2 LAN 3 HDMI HDMI HDMI Bypass ① ② ④ ④ ④ ③ ④ ④ ④ ① HDMI Bypass: This slot is to connect with HDMI TV/monitor for instant display HDMI input source signal. -
Page 10: Acronyms
Acronyms Acronym Complete Term CAT5e CAT6 Category 6 cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital content protection HDMI High-Definition Multimedia Interface Infrared Local Area Network... - Page 11 www.cypeurope.com...
