1.3

POWERING UP

Move the wireless power switch (3) in "I" position to activate wireless transmission: a green
LED lights up (blinking when battery is low! See 1.1)
1.4

SETUP CONTROLS

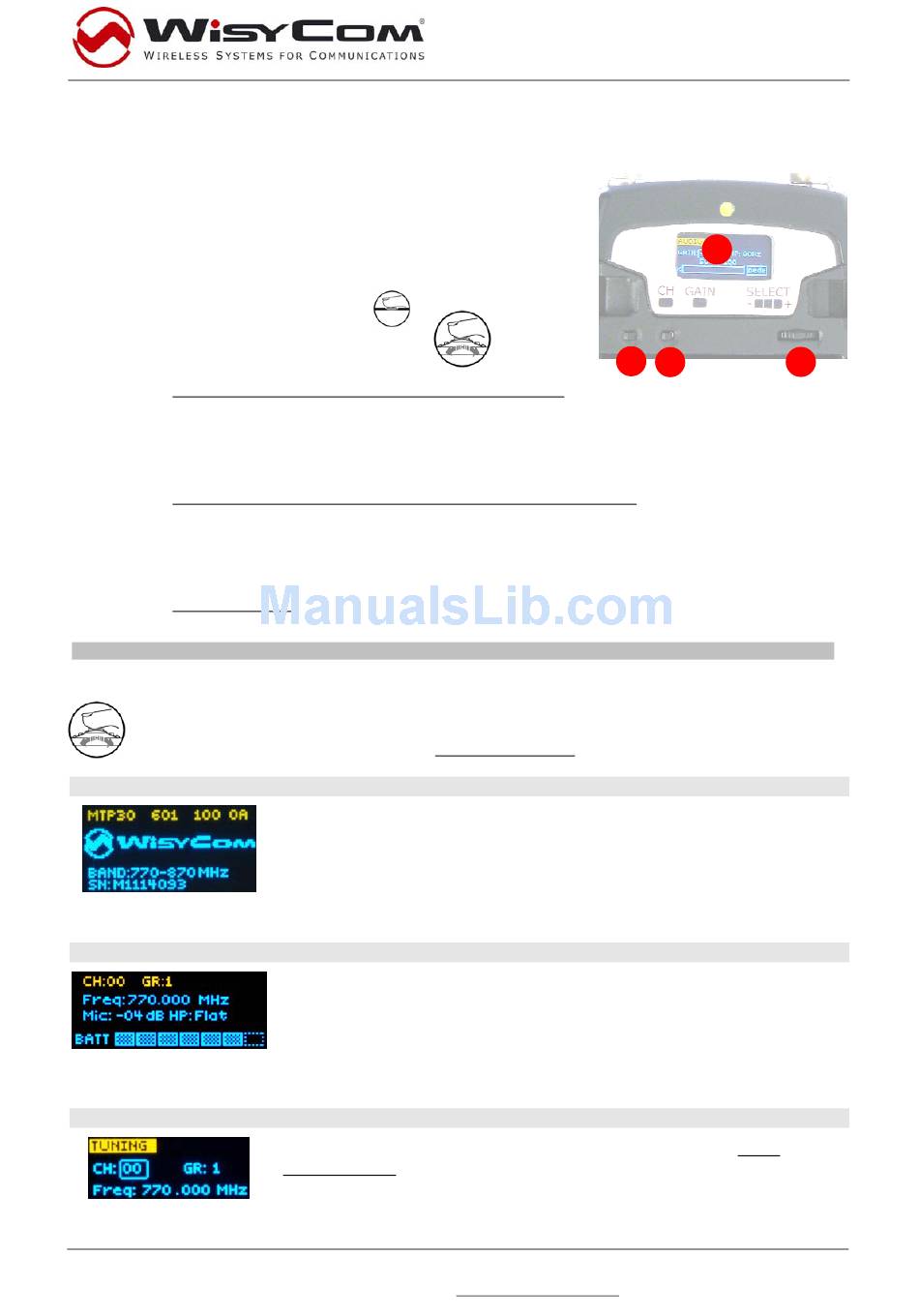

Open transmitter Body to access the
"display and controls" area (fig. 3):
A) Graphics Display (OLED)
B) Channel selection button (ch)
C) MIC gain setup button (gain)
D) 3 position selector (- / click / +) 
1.4.1 LED POWER UP (DISPAY IS IN OFF CONDITION)
Pushing down selector (click), oled turns on. A first menu with serial NO and brand logo is
displayed, then <status> menu enters automatically.
Pushing and holding selector (click) > 2 sec, serial NO menu is displayed till (-/+) is selected.

1.4.2 DISPLAY POWER DOWN (DISPLAY IS IN ON CONDITION)

Pushing and holding selector (click) > 2 sec, display is turned off.
Display turns off automatically after 15 sec, unless in <irda> menu or in <audio> menu (with
audio level < 5% from nominal).

1.4.3 DISPLAY MENU

Setup menu are accessed in sequence:
 <status>  <tuning>  <audio>  <mic>  <rf power>  <other>  <irda>  <lock> 
Using <+/-> selector all menus can be accessed in sequence, push <click> to enter edit
mode:
<+/-> to setup field
CLICK
<click> again to confirm changes and exit.
exit without confirmation if no button is pressed after a few seconds time out.
+ -
1.4.3.1 <start up> menu
1.4.3.2 <status> menu
1.4.3.3 <tuning> menu
WISYCOM s.r.l. - Via Spin, 156 - I-36060 Romano d'Ezzelino (VI) - Italy - MTP30-eng-U02.doc
Tel. (Ph.). +39 0424 382605 - Fax +39 0424 382733 - http:// www.wisycom.com - e-mail: sales@wisycom.com
CLICK
+
This menu is displayed during power up for few seconds:
Keep selector pushed to hold this menu. Main information are:
 Product name – software version
 Brand name
 Transmitter bandwith
 Serial No:
This is the first menu displayed after power up.
Major info are displayed:
- Current channel/group (i.e. CH:00 GR:1)
- Current frequency (i.e. 770.000 MHz)
- Mic gain (i.e. -04) and high pass filter (i.e. FLAT)
- RF active, top right label RF (if present RF is on)
This menu can be entered by scrolling selector or using quick
channel setup buttons (<ch>).
In this menu current channel/group and frequencies can be setup.
Use the selector to change values (<+/->) and <click> to confirm.
Sync group is a quick self settable channel synchronized by receiver.
Fig. 3
B
-
A
C D
