(3) Attach the wire cover.
(4) Attach the intake grille
x Install the Front panel and Intake grille securely. If
installation is imperfect, the Front panel or Intake grille
may fall off and cause injury.

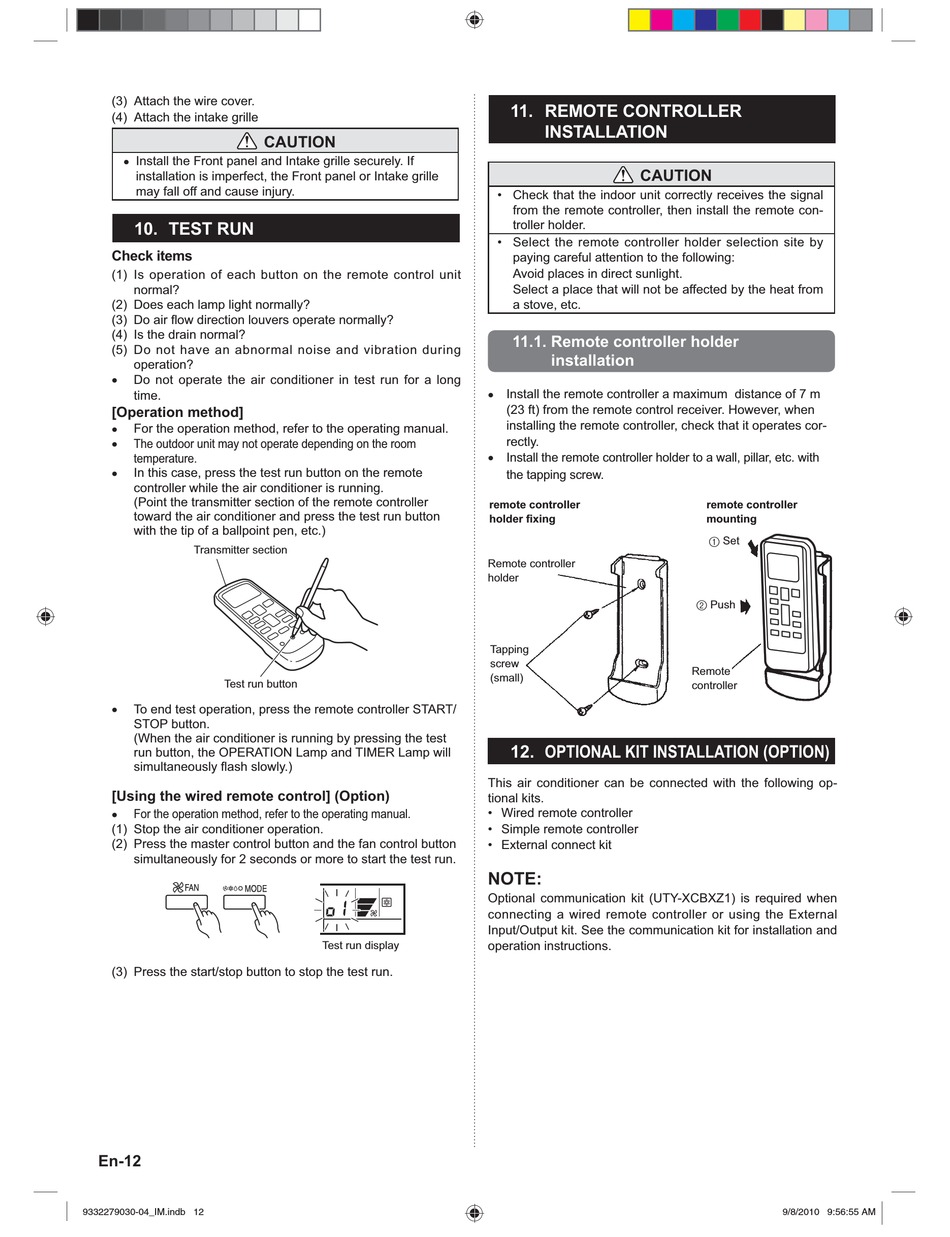

10. TEST RUN

Check items
(1) Is operation of each button on the remote control unit
normal?
(2) Does each lamp light normally?
(3) Do air À ow direction louvers operate normally?
(4) Is the drain normal?
(5) Do not have an abnormal noise and vibration during
operation?
x
Do not operate the air conditioner in test run for a long
time.
[Operation method]
x
For the operation method, refer to the operating manual.
x
The outdoor unit may not operate depending on the room
temperature.
x
In this case, press the test run button on the remote
controller while the air conditioner is running.
(Point the transmitter section of the remote controller
toward the air conditioner and press the test run button
with the tip of a ballpoint pen, etc.)
Transmitter section
Test run button
x
To end test operation, press the remote controller START/
STOP button.
(When the air conditioner is running by pressing the test
run button, the OPERATION Lamp and TIMER Lamp will
simultaneously À ash slowly.)
[Using the wired remote control] (Option)
x
For the operation method, refer to the operating manual.
(1) Stop the air conditioner operation.
(2) Press the master control button and the fan control button
simultaneously for 2 seconds or more to start the test run.
(3) Press the start/stop button to stop the test run.
En-12
9332279030-04_IM.indb 12
9332279030-04_IM.indb 12
CAUTION
Test run display
11. REMOTE CONTROLLER
INSTALLATION
CAUTION
• Check that the indoor unit correctly receives the signal
from the remote controller, then install the remote con-
troller holder.
• Select the remote controller holder selection site by
paying careful attention to the following:
Avoid places in direct sunlight.
Select a place that will not be affected by the heat from
a stove, etc.
11.1. Remote controller holder
installation
x Install the remote controller a maximum distance of 7 m
(23 ft) from the remote control receiver. However, when
installing the remote controller, check that it operates cor-
rectly.
x Install the remote controller holder to a wall, pillar, etc. with
the tapping screw.
remote controller
holder ¿ xing
Remote controller
holder
Tapping
screw
(small)

12. OPTIONAL KIT INSTALLATION (OPTION)

This air conditioner can be connected with the following op-
tional kits.
• Wired remote controller
• Simple remote controller
• External connect kit
NOTE:
Optional communication kit (UTY-XCBXZ1) is required when
connecting a wired remote controller or using the External
Input/Output kit. See the communication kit for installation and
operation instructions.
remote controller
mounting
1 Set
2 Push
Remote
controller
9/8/2010 9:56:55 AM
9/8/2010 9:56:55 AM
