Apple Final Cut Pro 7 - Blackmagicdesign HyperDeck Shuttle Installation And Operation Manual

Using your Favourite Editing Software
36
Final Cut Pro 7

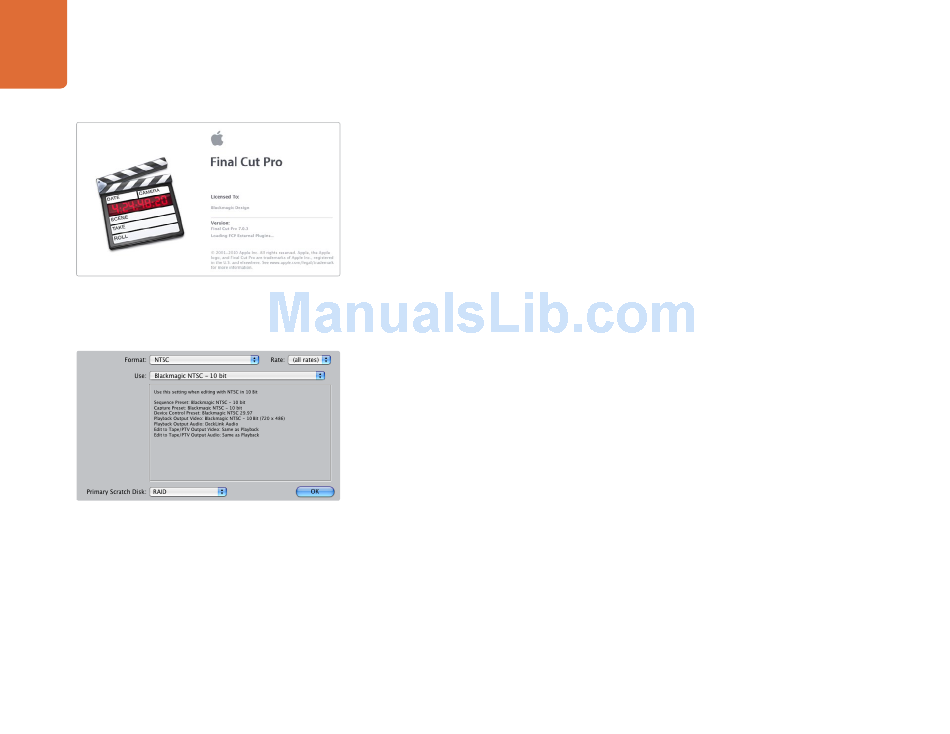

Select a Blackmagic Easy Setup

Apple Final Cut Pro 7

Easy Setups for Final Cut Pro 7 are automatically installed if Final Cut Pro is installed before the HyperDeck
software.
Setting up
Step 1. Launch Final Cut Pro 7 and the Easy Setup window will appear.
Step 2. Click on the popup menu and select the desired Blackmagic Easy Setup. For each video format
(NTSC, PAL and HDTV) you will find a range of Blackmagic compressed and uncompressed file
formats you can choose.
Step 3. Click on the popup menu named Primary Scratch Disk and select your disk array from the popup
menu.
Step 4. Click OK and the Final Cut Pro interface will appear.
Capturing Live via Thunderbolt
To capture video live via Thunderbolt from HyperDeck Studio Pro:
Step 1. Select a Blackmagic Easy Setup. Final Cut Pro will sometimes warn that device control has been
set to "non-controllable device". This is as expected. Click OK and then create a project with
these settings.
Step 2. Choose File > Log & Capture. (Command + 8).
Step 3. Press play on HyperDeck Studio Pro and then press the Now button in the Log and Capture
window. Final Cut Pro will show you a preview of the video you are capturing.
Step 4. Press the 'esc' key at the top left of your keyboard to stop capturing.
