Installing The Hyperdeck Shuttle Mounting Plate - Blackmagicdesign HyperDeck Shuttle Installation And Operation Manual

Using HyperDeck Shuttle
27
The contents of the box includes:
x1
HyperDeck Shuttle
Mounting Plate
You will need:
x1
Hex Allen Key 2.5mm
(not included)
2 2
1 1 1
4 4
3 3 3
Step 1

Installing the HyperDeck Shuttle Mounting Plate

HyperDeck Shuttle Mounting Plate is an optional accessory which lets you secure your HyperDeck
x4
Shuttle to a camera rig with your choice of rail mounts, cold shoe mounts, articulated arms and more.
You can also use the plate to power your HyperDeck Shuttle from an external battery by attaching
Socket Head Screws
M3 x 10mm
a V-Mount or Anton Bauer style battery plate. HyperDeck Shuttle Mounting Plate is available for
purchase from Blackmagic Design resellers. For easy installation, please follow these simple steps.

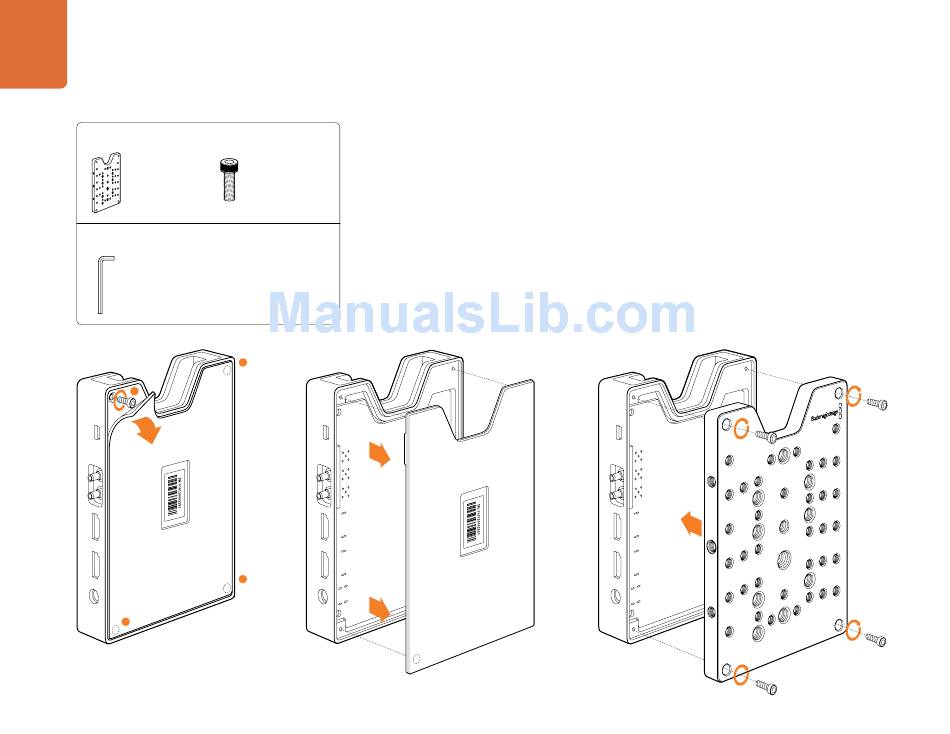

Step 1. Peel back the rubber mat from all four corners of the base so you can just see the screws.
Step 2. Remove the base.
Step 3. Attach your HyperDeck Shuttle Mounting Plate using the supplied socket head screws.
2
4
Step 2
Remove all four screws.
