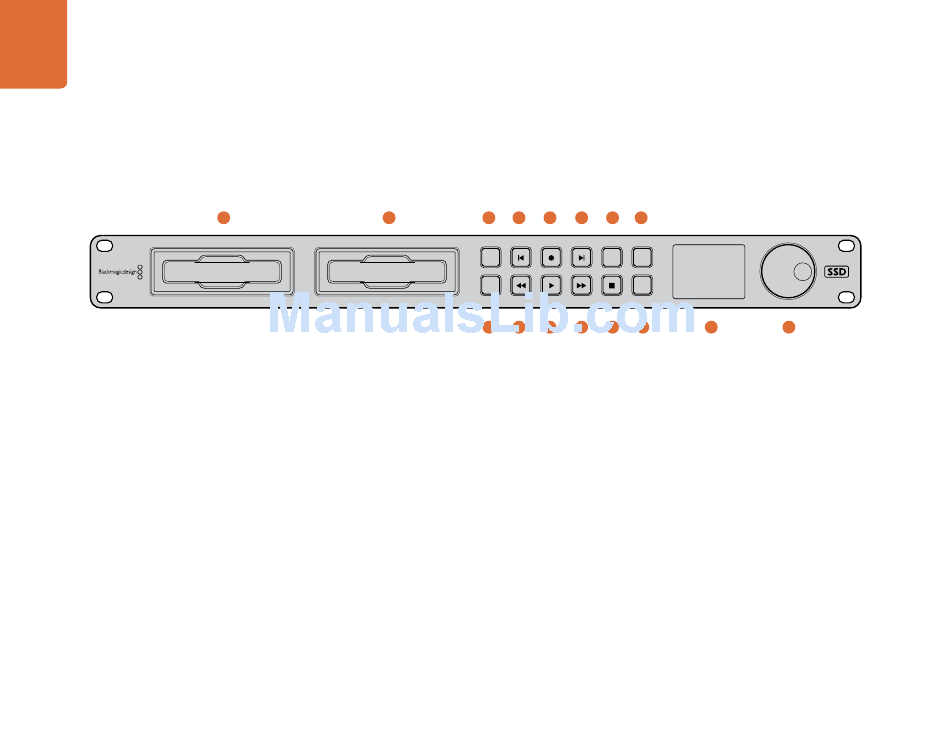

HyperDeck Studio Controls

SSD Slots
+12V POWER REMOTE
1. SSD Slot 1
2. SSD Slot 2
Insert a 2.5" SSD into an SSD slot until you feel the SSD press
into place. The surround of the SSD slot lights in green when
it is accessing a correctly formatted SSD. If the SSD has not
been formatted correctly, or fails to work, the SSD slot light
will illuminate solid red until the SSD is removed. Hard drives
are not supported and should not be used. To remove the
SSD, simply pull it out.
Buttons and Controls
3. DISP
This button isn't currently used but will soon be enabled by
a software update.
4. Previous Clip
Press once to go to the start of the current clip or press twice
to skip back to the start of the previous clip.
5. Record
Recording commences the instant you press the record
button, even if you're playing back a clip, so you'll never
miss a good take that's happening. If the button flashes red,
1 2
IN LOOP OUT OUT 1 OUT 2 MON OUT REF IN
ETHERNET SD/HD/3GHD-SDI
the SSD is too slow and cannot keep up with recording.
To switch from one SSD to the other while recording, press
the record button for 1 second.
6. Next Clip
Press to skip to the next clip.
7. INPUT
While the stop button is illuminated, press the INPUT button
once to display the incoming video on the LCD. If you don't
see the video you want, press the button again to switch
between the HDMI and SDI inputs.
8. REM
Push REM to enable RS-422 remote control or to allow
remote trigger recording via SDI.
9. SET
This button isn't currently used but will soon be enabled by
a software update.
10. Reverse
Press once to play in reverse at normal speed. Press again to
reverse at 2x, 4x and 8x speeds.
3 4 5 6
DISP
SET
9 10 11 12
IN OUT
HDMI
7 8
INPUT REM
JOG
13 14 15 16
11. Play
Press once to play through all clips or press again to loop the
current clip.
12. Fast Forward
Press once to play at 2x speed or press again to play at 4x
and 8x speeds.
13. Stop
Stop works in all modes.
14. JOG
Press once to use the jog wheel to scroll through video or
press again to set the jog wheel to shuttle mode.
15. LCD
The color LCD displays video format, timecode, audio
meters, video preview, transport controls and the active SSD.
16. Jog/Shuttle Wheel
Use with the JOG button to jog or shuttle forwards and
backwards.
