Summary of Contents for ATEN VM0404

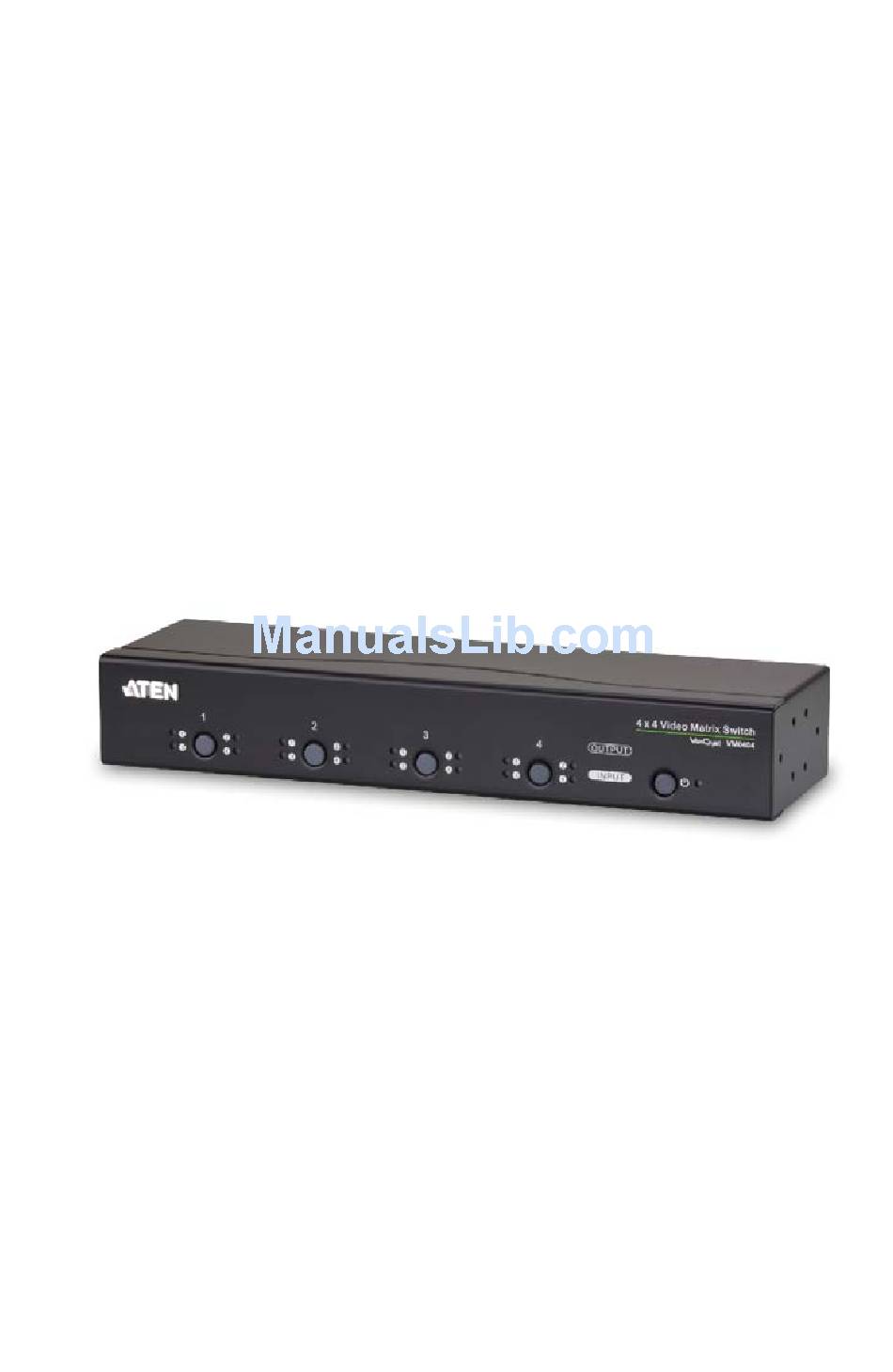

- Page 1 4x4 Video Matrix Switch with Audio VM0404 User Manual www.aten.com...
-
Page 2: Fcc Information
VM0404 User Manual FCC Information This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: User Information
VM0404 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
© Copyright 2012–2014 ATEN® International Co., Ltd. Manual Date: 2014-03-24 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
VM0404 User Manual Contents FCC Information ..........ii RoHS. - Page 6 VM0404 User Manual Switch Port Commands........12 EDID Commands: .
-
Page 7: About This Manual
VM0404 User Manual About this Manual This User Manual is provided to help you get the most from your VM0404 system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Introduction
Chapter 1 Introduction Overview The ATEN VanCryst VM0404 4x4 Video Matrix Switch with Audio provides a convenient way to simultaneously route audio/video content from four VGA source devices to four VGA monitors, projectors and displays. As a Matrix Switch, each input can be independently connected to any or all... -
Page 10: Features
VM0404 User Manual Features Display the output from four video source devices to four display devices Easily switch between 4 media sources and enjoy the video content on any of up to 4 displays Long distance transmission – up to 30m Superior video quality –... -
Page 11: Requirements
Chapter 1. Introduction Requirements The following equipment is required for a complete VM0404 installation Source Devices Computer or A/V source device with VGA and stereo output Display Devices A VGA, SVGA, XGA, SXGA, UXGA, WUXGA, or multisync display device with an HDB-15 connector... -
Page 12: Components
VM0404 User Manual Components Front View Component Description Port Selection Pressing a port selection pushbutton cycles through Pushbuttons the four VGA input sources (Source 1, 2, 3, or 4) to be displayed on the display device attached to the corresponding output port (Display 1, 2, 3, or 4). -
Page 13: Rear View
Chapter 1. Introduction Rear View Component Description Grounding Terminal The grounding wire (used to ground the unit) attaches here. Note: The grounding wire is not included in this package. Contact your dealer for more information. Power Jack The power adapter cable plugs in here. RS-232 Serial Port This serial remote port is for input source selection and high-end system control. - Page 14 VM0404 User Manual Maximum Cable Distances Connection Distance Computer to Unit 10 m Unit to Monitor 30 m...
-
Page 15: Ir Remote Control
Keyboard Power On function. Cable Connections Installation of the VM0404 is simply a matter of connecting the appropriate cables. Refer to the installation diagram in the next page (the numbers in the diagrams correspond to the steps below), and do the following: 1. -
Page 16: Installation Diagram
VM0404 User Manual Installation Diagram... -
Page 17: Operation
Chapter 3 Operation Overview The VM0404 can be configured and operated via the front panel pushbuttons or by connecting an RS-232 Serial controller. You can also use an IR Remote Control if there is an IR receiver connected to your VM0404 unit. -
Page 18: Remote Control Operation
Output displays simultaneously. Before using the remote control feature you must first plug the IR External Receiver into the rear of the VM0404 (see External IR Receiver Port, page 5), and place the receiver where the IR signal can be reached. -
Page 19: Power On/Off Individual Output Displays
Chapter 3. Operation Power on/off individual Output displays To power on/off individual Output displays, use the remote control to do the following: 1. Press the OUTPUT port number (1–4) you want to power on/off. 2. Press the ON or OFF pushbutton within 2 seconds.* 3. -
Page 20: Rs-232 Commands
Chapter 4 RS-232 Commands Serial Control Protocol Commands This chapter provides a complete list of the serial control protocol commands used when utilizing the RS-232 Serial Port. Configuring the Serial Port The controller’s serial port should be configured as follows: RS-232 Serial Control Protocol Settings Baud Rate 19200 (Default) -
Page 21: Possible Values
Chapter 4. RS-232 Commands Possible Values The following table shows the possible values for switch commands: Command Description Switch command Input Command Description Input command Input Port Number Description 01-04 port (default is 01) Output Command Description Output Command Output Port Number Description 01-04 port (default is 01) All output ports... - Page 22 VM0404 User Manual Switch Port Command Table Cmd In Out N2 C2 Enter Description video Enter Switch Input Port xx to Output Port audio (xx:01~04; yy:01~04, *) Note: Skipping the video/audio command automatically switches both Video and Audio video Enter...
-
Page 23: Edid Commands
Pass through EDID from the display connected to port 1 remix Conditional remix mode. The device implements remix mode once when the VM0404 is powered on. auto Implement true EDID remix of all connected displays. default Implement ATEN default EDID for all. -
Page 24: Mute Commands
VM0404 User Manual Mute Commands The formulas for Mute commands are as follows: 1. Mute Command + Output Command + Port Number + Control + [Enter] For example, to mute output port 04 on device 01, type the following: mute o04 on [Enter] 2. -
Page 25: Save / Load Profile Commands
Chapter 4. RS-232 Commands Save / Load Profile Commands The formulas for Save/Load Profile commands are as follows: 1. Command + Profile + Number + Control + [Enter] For example, to save the current connection configuration to profile 01, type the following: profile f 01 save [Enter] 2. -
Page 26: Read Commands
Reads and displays information from the VM0404 Control Description version Displays the firmware version of the VM0404 Note: Each command string can be separated with a space. The following table shows the available command list: Command Control Enter Description... -
Page 27: Button Control
Chapter 4. RS-232 Commands Button Control The formulas for Button Control commands is as follows: Command + Control + [Enter] For example, to enable the button function, type the following: button on [Enter] Possible Values The following table shows the possible values for Button Control commands: Command Description button... -
Page 28: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 29 VM0404 User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 30: Technical Support
Appendix Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support, page iii: North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase. -
Page 31: Specifications
VM0404 User Manual Specifications Function VM0404 Connectors Video In 4 x HDB-15 Male (Blue) Video Out 4 x HDB-15 Female (Blue) Audio In 4 x Mini Stereo Jack Female (Green) Audio Out 4 x Mini Stereo Jack Female (Green) RS-232...
