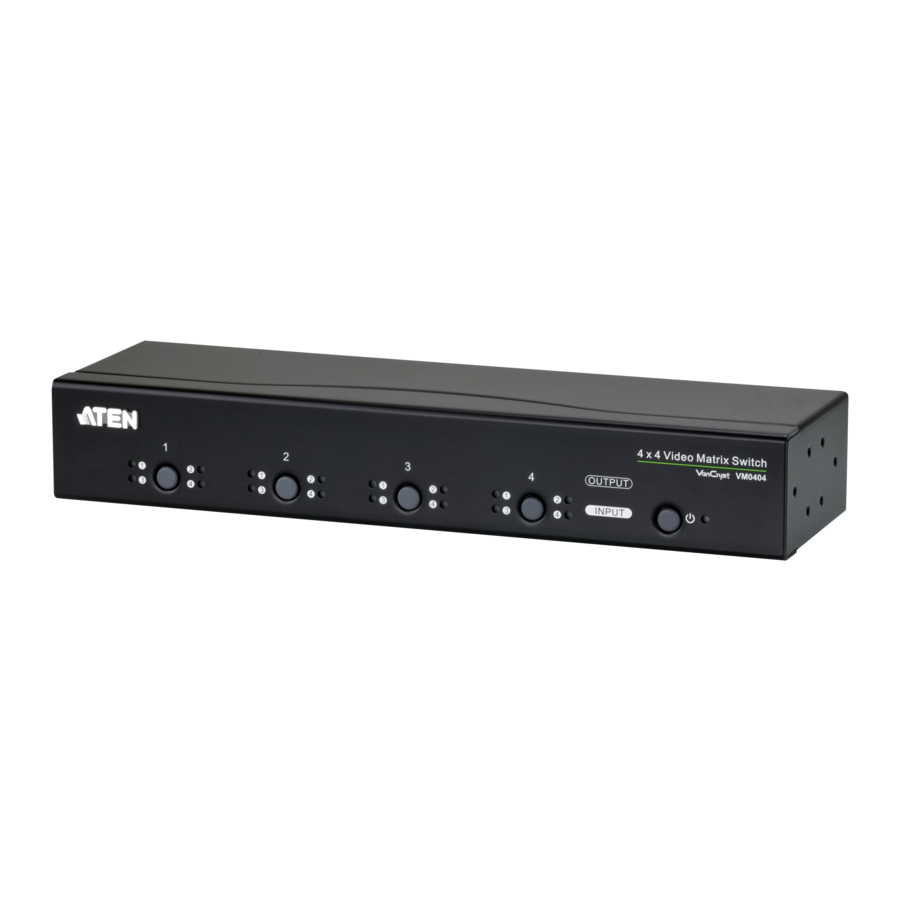

ATEN VanCryst VM0404 - 4 X 4 Video Matrix Switch With Audio Quick Start Guide

Package Contents

• 1 VM0404 4x4 Video Matrix Switch with Audio
• 1 Power Adapter
• 1 User Instructions

Hardware Review

Front View

1. Port Selection Pushbuttons
2. Port LEDs
3. Power Pushbutton
4. Power LED

Rear View

1. Power Jack
2. Grounding Terminal
3. RS-232 Serial Port
4. External IR Receiver Port5. Audio/Video Input Ports
5. Audio/Video Intput Ports
6. Audio/Video Output Ports

Hardware Installation

1. Connect up to 4 video/audio sources to the VGA/audio Input ports.
2. Connect up to 4 display/audio devices to the VGA/audio Output ports.
3. (Optional) Connect the IR Receiver into the External IR Receiver Input Port.
4. Plug the power adapter cable into the power jack on the VM0404.
5. To connect a RS-232 Controller (such as a PC), use a serial cable to connect the RS-232 device to the VM0404's RS-232 port.

NOTE: IR Receiver cable (2XRT-0003G)and IR Remote Control (2XRT-0106G) sold separately.

Operation

The VM0404 can be confi gured and operated via the front panel pushbuttons by connecting an RS-232 Serial controller.

Front Panel Operations

Pressing a port selection pushbutton cycles through the four VGA input sources (Source 1, 2, 3, or 4) to be displayed on the display device attached to the corresponding output port (Display 1,2,3 or 4).

RS-232 Serial Interface

The VM0404's built-in bi-directional RS-232 serial interface allows system control through a high-end controller, PC, and/or home automation / home theater software package.

Online Registration
http://eservice.aten.com;
Technical Phone Support
International: 886-2-86926959
North America: 1-888-999-ATEN Ext: 4988
United Kingdom: 44-8-4481-58923

EMC Information

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT:
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Caution: Any changes or modifi cations not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
CE Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
Suggestion: Shielded twisted pair (STP) cables must be used with the unit to ensure compliance with FCC & CE standards.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device mat not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

All information, documentation, firmware, software utilities, and specifi cations contained in this package are subject to change without prior notification by the manufacturer. Please visit our website http:// www.aten.com/download/?cid=dds for the most up-to-date versions.

© Copyright 2015 ATEN^® International Co., Ltd.
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners.
