Mounting the Switch on a Wall
You can mount the switch on a wall as shown in the illustration below. Note
that the switch should be mounted only to a wall or wood surface that is at
least 1/2-inch plywood or its equivalent.
1.
2.
Mounting the Switch on a Horizontal Surface
Place the switch on a table or other horizontal surface. Use a sturdy surface
in an uncluttered area. You may want to secure the networking cables and
switch power cord to the table leg or other part of the surface structure to
help prevent people from tripping over the cords.
C a u t i o n
Make sure the air flow is not restricted around the sides and back of the switch,
and around the HP J2692A Redundant Power Supply, if used.
Using a Phillips (cross-head) or Pozidriv screwdriver with the 10-mm M3
thread-forming screws included in the accessory kit, attach the mounting

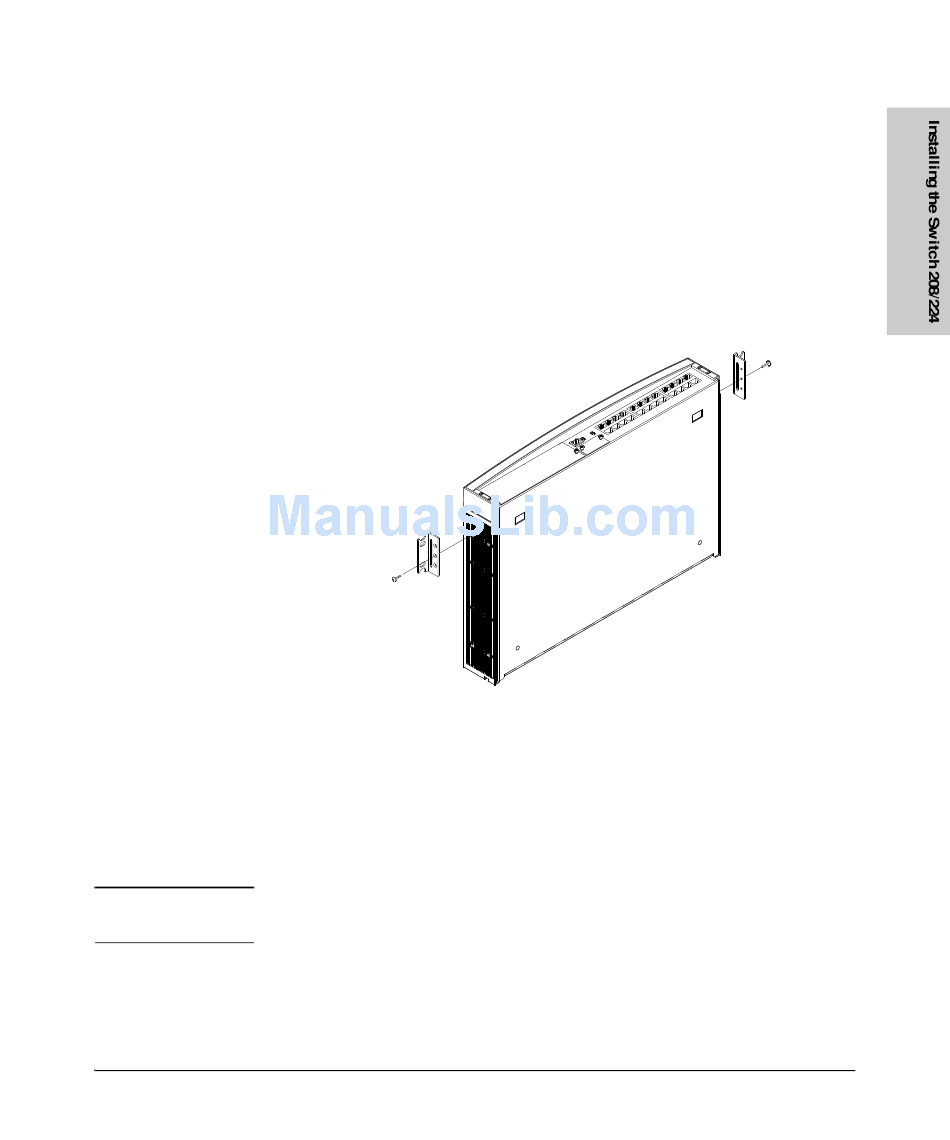

brackets to the switch as shown in the illustration below.
Attach the switch to the wall or wood surface with 5/8-inch number 12
wood screws (not included}.
Installing the Switch 208/224
Installation Steps
1-11
