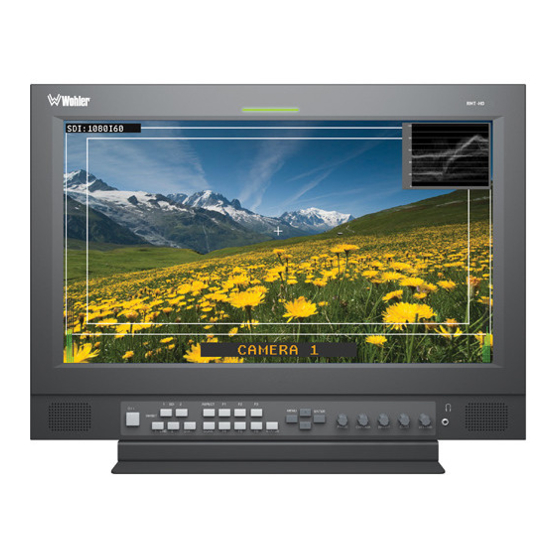

17-inch high definition video monitor
Hide thumbs Also See for RMT-170-HD:
Table of Contents

Advertisement

Quick Links

See also: User Manual
CONFIDENCE IS EVERYTHING.™
World Leader of In-Rack, Audio, Video, Data Monitoring, and Closed Captioning Solutions
RMT-170-HD
17-Inch High Definition Video Monitor
User Guide
Part Number 821688, Revision A
the video division of

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RMT-170-HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wohler RMT-170-HD

Summary of Contents for Wohler RMT-170-HD

  • Page 1 CONFIDENCE IS EVERYTHING.™ World Leader of In-Rack, Audio, Video, Data Monitoring, and Closed Captioning Solutions RMT-170-HD 17-Inch High Definition Video Monitor User Guide Part Number 821688, Revision A the video division of...

  • Page 2: Customer Support

    In no event will Wohler Technologies, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect in the hardware, software, or its documentation, even if advised of the possibility of such damages.

  • Page 3: Table Of Contents

    RMT-170-HD User Guide Introduction Overview The RMT-170-HD monitor is an ideal solution for viewing many different types of HD/SD (up to 1080i and 720p) or analog video and computer input. By using a 1920 x 1200 TFT/LCD screen, a perfect medium is reached in the scaling and interpolation process, providing superb imaging regardless of video format.

  • Page 4: Safety Instructions

    R M T -1 7 0 -H D U s e r Gu id e S a f e t y I n s tr u c ti o n s Safety Instructions Read, keep, and follow all of these instructions; heed all warnings. Do not use this equipment near water.

  • Page 5: Unpacking And Installation

    U n p a c k i n g a n d I n s t a l l a t i o n Unpacking and Installation Unpack the RMT-170-HD Monitor and inspect for any apparent physical damage that may have occurred in transit. In addition to the monitor, the package should contain: •...

  • Page 6: Features

    F e a t u r e s Features The RMT-170-HD is a 17" multiple function TFT-LCD monitor with 1920 x 1200 screen resolution (4:9 native aspect). Interlaced signals are processed by using a 3D comb filter and 3D de-interlacer. Analog signals are internally digitized with a high quality 10-bit over sampled analog to digital converter.

  • Page 7: Specifications

    RMT-170-HD User Guide S p e ci f i c a t i o n s Specifications Physical Specifications Table 1–1 lists the specifications for the RMT-170-HD monitor. Table 1–1 Monitor Specifications Specifications Value/Domain Power 40 W, 110/220 AC (50 to 60 Hz) Dimensions 16.32”...
  • Page 8 R M T -1 7 0 -H D U s e r Gu id e S p e c if i c a ti o n s Figure 1–1 Front Panel Dimensions Figure 1–2 Rear Panel Dimensions © 2 00 9 Wo h le r Te ch n ol og ie s , I n c . A l l r i g h t s r e s e rve d .
  • Page 9 RMT-170-HD User Guide S p e ci f i c a t i o n s Figure 1–3 Side View Dimensions Figure 1–4 Top View Dimensions © 2 00 9 Wo h le r Te ch n o l og ie s, I n c . A l l r i g h t s r e s e r v e d .
  • Page 10 R M T -1 7 0 -H D U s e r Gu id e S p e c if i c a ti o n s Input/Output Specifications Table 1–2 Signal Inputs, Frame Rate, and Color Matrix Overscan Native Full Normal Frame Color...
  • Page 11 RMT-170-HD User Guide S p e ci f i c a t i o n s Table 1–3 below lists the signal formats that can be displayed on the RMT-170-HD. Table 1–3 Usable Input Signals Format Video YPbPr HDMI NTSC —...
  • Page 12 R M T -1 7 0 -H D U s e r Gu id e S p e c if i c a ti o n s Table 1–4 Button/Signal-Terminal Relationships Relationship Input Signal Source Function Video Ypbpr SDI SD SDI HD DVI-D HDMI...
  • Page 13 RMT-170-HD User Guide S p e ci f i c a t i o n s Table 1–5 Y Signal Input Component Levels (Continued) Function Beta 7.5 SMPTE Beta 0 700.00 mVp-p 525.00 mVp-p 756.80 mVp-p (75% Color Bars) (75% Color Bars)

  • Page 14: Using The Rmt-170-Hd

    U s i n g t h e R M T - 1 7 0 - H D Using the RMT-170-HD Front Panel The RMT-170-HD monitor provides a variety of in monitor data including signal type, waveform, IMD (In-Monitor Display), audio meters, and time code. It also includes a three-color tally light above the display.
  • Page 15 RMT-170-HD User Guide U s i n g t h e R M T -1 7 0 - H D • Tally Light: This tri-color (red/green/amber) light is controlled through an RJ45 connector on the rear panel. For more information about the RJ45 connector, refer to “Rear...
  • Page 16 R M T -1 7 0 -H D U s e r Gu id e U s i n g t h e R M T - 1 7 0 - H D detected. It glows red when the power is on and no signal is present. As a control, it turns the signal display on the monitor on and off.

  • Page 17: Rear Panel

    RMT-170-HD User Guide U s i n g t h e R M T -1 7 0 - H D • Enter (Button): The Enter button selects menus, submenus, and option values in the . This button only functions when...
  • Page 18 R M T -1 7 0 -H D U s e r Gu id e U s i n g t h e R M T - 1 7 0 - H D Figure 1–7 Rear Panel (Left Side) • SDI Inputs 1 and 2: SD-SDI input signal on BNC jacks.
  • Page 19 RMT-170-HD User Guide U s i n g t h e R M T -1 7 0 - H D • Analog Audio Input 1: Input jacks for the analog audio signal. • Analog Audio Input 2: Input jacks for the analog audio signal.
  • Page 20 R M T -1 7 0 -H D U s e r Gu id e U s i n g t h e R M T - 1 7 0 - H D Figure 1–9 GPI/Tally Light RJ45 Connector Pin Map Table 1–9 GPI/Tally Lamp Color/Pin Designations Tally Lamp Color...

  • Page 21: Using The Osd Menu

    RMT-170-HD User Guide U s i n g t h e O S D M e n u Figure 1–10 DB9 Connector Pin Map Figure 1–11 RS485 RJ45 Connector Pin Map Table 1–11 RS485 Pin Out RS485 Out Terminal RS485 In Terminal Signal...
  • Page 22 R M T -1 7 0 -H D U s e r Gu id e U s in g t h e O SD M e n u Use the buttons to navigate through the seven Down sub-menu icons. The sub-menus are: FORMAT COLOR TEMP MARKER...
  • Page 23 RMT-170-HD User Guide U s i n g t h e O S D M e n u Table 1–12 OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value Selects the color temperature that will become the basis for...

  • Page 24: Menu Parameters

    R M T -1 7 0 -H D U s e r Gu id e U s in g t h e O SD M e n u Table 1–12 OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value Setting the picture safe area size marker for the aspect ratio (determined by the button which...
  • Page 25 RMT-170-HD User Guide U s i n g t h e O S D M e n u Table 1–12 OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value Used to select the audio source type, where: • EXT = Analog audio...
  • Page 26 R M T -1 7 0 -H D U s e r Gu id e U s in g t h e O SD M e n u Table 1–12 OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value Selects the audio channel assigned METER 1 to the left speaker based on the...
  • Page 27 RMT-170-HD User Guide U s i n g t h e O S D M e n u Table 1–12 OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value Only for 480i60 component input, where: • SMPTE = 100/0/100/0 signal...
  • Page 28 R M T -1 7 0 -H D U s e r Gu id e U s in g t h e O SD M e n u Table 1–12 OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value Determines the location on the monitor where the waveform displays:...
  • Page 29 RMT-170-HD User Guide U s i n g t h e O S D M e n u Table 1–12 OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value TALLY R GPI1 TALLY G GPI2 TALLY R, TALLY G, SDI1, SDI2,...
