RM-3270W HD Series
• RM-3270W-HD
• RM-3270W-2HD
3RU, 2-Screen, 7" Audio/Video Monitors
User Guide
Part Number 821041 Revision H

Advertisement

Table of Contents
loading

Related Manuals for Wohler RM-3270W-HD

Summary of Contents for Wohler RM-3270W-HD

  • Page 1 RM-3270W HD Series • RM-3270W-HD • RM-3270W-2HD 3RU, 2-Screen, 7” Audio/Video Monitors User Guide Part Number 821041 Revision H...
  • Page 2 Wohler Technologies, Inc. reserves the right to change or improve our products at any time and without notice. In no event will Wohler Technologies, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect in the hardware, software, or its documentation, even if advised of the possibility of such damages.

  • Page 3: Table Of Contents

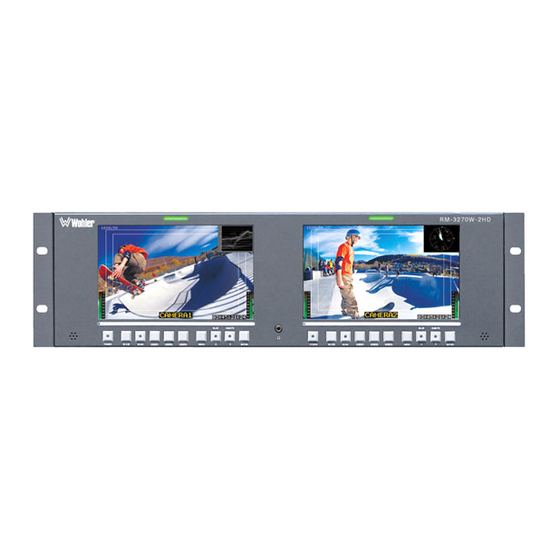

    RM-3270W HD Series User Guide Introduction Overview The 3RU rack-mounted RM-3270W HD Series monitors set a new standard in LCD monitors for broadcast and professional video applications. It provides two 7”, 800 x 480 resolution, anti-glare TFT screens. All video formats are scaled to fit on screen in the highest quality using full, digital processing, precision scaling and gamma correction to produce the best images available.

  • Page 4: Safety Instructions

    RM - 3 2 7 0W H D S e r ie s U s e r G u id e Sa f e t y I n st ru c t i on s Safety Instructions Read, keep, and follow all of these instructions; heed all warnings. Do not use this equipment near water.

  • Page 5: Installation Recommendations

    RM-3270W HD Series User Guide I n s t a l la t io n R e c om m e n d a t io n s Installation Recommendations Mounting The unit is designed to install into a standard 19” rack. The unit should be mounted at approximately eye level for optimum visual observation.

  • Page 6: Features

    RM - 3 2 7 0W H D S e r ie s U s e r G u id e F e a t u r es Features The RM-3270W HD Series audio/video monitors are designed for confidence monitoring of composite video broadcast signal video sources.

  • Page 7: Specifications

    Built in color bars 75% full field • User defined configuration • Auto sets at power up Specifications Table 1–1 RM-3270W-HD/2HD Specifications Specification 2 active color matrix amorphous 7” Number of Screens LCD TFT screens Display 7” diagonal Aspect Ratios...

  • Page 8: Front Panel Controls

    1 Pair Analog Audio (RCA) Supplied AC power adapter Accessories Note: All of the specifications listed above are subject to change without notice. Front Panel Controls Figure 1–1 RM-3270W-HD Front Panel Tally Lights Power Headphone Jack Speaker Enter Aspect Speaker F Keys Mute...
  • Page 9 RM-3270W HD Series User Guide F r on t Pa n e l C o n t r o ls Figure 1–2 RM-3270W-2HD Front Panel Tally Lights Speaker Headphone Jack Power Enter In A/B Speaker User Keys Mute Menu Scan LCD Screen Blue •...
  • Page 10 RM - 3 2 7 0W H D S e r ie s U s e r G u id e F r o nt P a n el C o n t r o ls • : This button toggles the aspect ratio between 4:3 and 16:9 Aspect for the associated LCD screen.

  • Page 11: Rear Panel Connectors

    RM-3270W HD Series User Guide R e a r P a ne l C o n n e ct o r s Rear Panel Connectors Rear Panel Connectors for the RM-3270W-HD Figure 1–3 RM-3270W-HD Rear Panel Power Video Input Tally Lights Interface...
  • Page 12 RM - 3 2 7 0W H D S e r ie s U s e r G u id e Re a r Pa n e l C o n ne c t o r s Figure 1–4 RS-485 I/O Pin-Out Table 1–2 RS-485 Pin-Out RS485 In terminal...

  • Page 13: On-Screen Display Features

    RM-3270W HD Series User Guide O n - S cr e e n D is p l a y F ea t u r e s Common Connectors • Power Connector: To provide power to the unit, attach the supplied 100 to 240VAC to 12VDC power supply to this connector.

  • Page 14: Using The Osd Menu

    RM - 3 2 7 0W H D S e r ie s U s e r G u id e U s in g t he O S D M e nu • Input Signal: The input signal is automatically detected as vertical active line count, (i)nterlaced or (p)rogressive, and frame rate in Hz.
  • Page 15 RM-3270W HD Series User Guide U s i ng t h e O S D M e n u Table 1–3 RM-3270W-HD and RM-3270W-2HD OSD Menu Structure Default Menu Parameters Domain Range Value FORMAT COLOR TEMP MON SOURCE UNDER SCAN...
  • Page 16 RM - 3 2 7 0W H D S e r ie s U s e r G u id e U s in g t he O S D M e nu Table 1–3 RM-3270W-HD and RM-3270W-2HD OSD Menu Structure (Continued) Default...
  • Page 17 RM-3270W HD Series User Guide U s i ng t h e O S D M e n u Table 1–3 RM-3270W-HD and RM-3270W-2HD OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value IN A:MET 1-L CH 1 IN A:MET 1-R...
  • Page 18 RM - 3 2 7 0W H D S e r ie s U s e r G u id e U s in g t he O S D M e nu Table 1–3 RM-3270W-HD and RM-3270W-2HD OSD Menu Structure (Continued) Default...
  • Page 19 RM-3270W HD Series User Guide U s i ng t h e O S D M e n u Table 1–3 RM-3270W-HD and RM-3270W-2HD OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value UMD FIXED SET UP A user-definable input string of up to —...
  • Page 20 RM - 3 2 7 0W H D S e r ie s U s e r G u id e U s in g t he O S D M e nu Table 1–3 RM-3270W-HD and RM-3270W-2HD OSD Menu Structure (Continued) Default...

  • Page 21: Technical Functional Overview

    Te c h n ic a l F u nc t i on a l O v e rv ie w Technical Functional Overview Figure 1–8 on page 19 Figure 1–9 on page 20 illustrate the overall functionality of the RM-3270W HD Series monitors. Figure 1–8 RM-3270W-HD Block Diagram RS-485 (UMD, OSD Tally, Programming) RS-485 Left Speaker...
  • Page 22 RM - 3 2 7 0W H D S e r ie s U s e r G u id e Te c h ni c al F un c t io n a l O v er v ie w Figure 1–9 RM-3270W-2HD Block Diagram RS-485...
