RMT-170-HD
17-Inch High Definition Video Monitor
User Guide
Part Number 821688, Revision B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RMT-170-HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wohler RMT-170-HD

Summary of Contents for Wohler RMT-170-HD

  • Page 1 All manuals and user guides at all-guides.com RMT-170-HD 17-Inch High Definition Video Monitor User Guide Part Number 821688, Revision B...
  • Page 2 In no event will Wohler Technologies, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect in the hardware, software, or its documentation, even if advised of the possibility of such damages.

  • Page 3: Table Of Contents

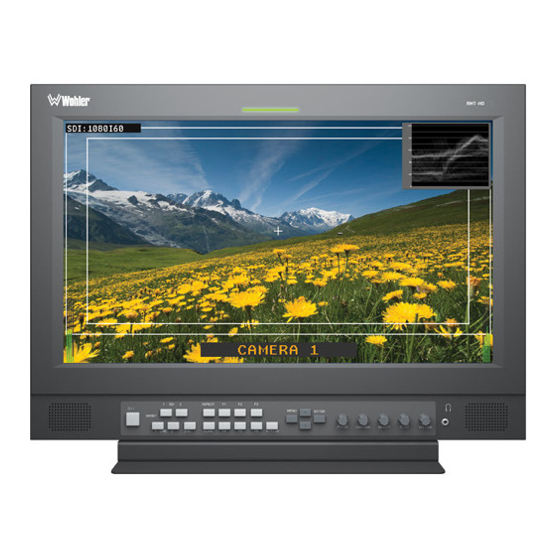

    RMT-170-HD User Guide Introduction Overview The RMT-170-HD monitor is an ideal solution for viewing many different types of HD/SD (up to 1080i and 720p) or analog video and computer input. By using a 1920 x 1200 TFT/LCD screen, a perfect medium is reached in the scaling and interpolation process, providing superb imaging regardless of video format.

  • Page 4: Safety Instructions

    All manuals and user guides at all-guides.com R M T -1 7 0 -H D U s e r Gu id e S a f e t y I n s tr u c ti o n s Safety Instructions Read, keep, and follow all of these instructions;...

  • Page 5: Unpacking And Installation

    U n p a c k i n g a n d I n s t a l l a t i o n Unpacking and Installation Contents Unpack the RMT-170-HD Monitor and inspect for any apparent physical damage that may have occurred in transit. In addition to the monitor, the package should contain: •...
  • Page 6 Alternate Mounting Option: Alternate mountings can be accommodated by the VESA-100 mounting plate (hardware not supplied by Wohler). Place the RMT-170-HD in the required location for operation. Connect the required signals. For BNC connections use 75-rated connectors. Connect the DC adapter plug to the back of the monitor and the other end to power.

  • Page 7: Features

    F e a t u r e s Features The RMT-170-HD is a 17" multiple function TFT-LCD monitor with 1920 x 1200 screen resolution (14:9 native aspect). Interlaced signals are processed by using a 3D comb filter and 3D de-interlacer. Analog signals are internally digitized with a high quality 10-bit over sampled analog to digital converter.

  • Page 8: Specifications

    R M T -1 7 0 -H D U s e r Gu id e S p e c if i c a ti o n s Specifications Physical Specifications Table 1–1 on page 6 lists the specifications for the RMT-170-HD monitor. Table 1–1 Monitor Specifications Specifications...
  • Page 9 All manuals and user guides at all-guides.com RMT-170-HD User Guide Spe ci f ic a t ion s Input/Output Specifications Table 1–2 Signal Inputs, Frame Rate, and Color Matrix Overscan Native Full Normal Frame Color Signal Type Rate Matrix Input...
  • Page 10 All manuals and user guides at all-guides.com R M T -1 7 0 -H D U s e r Gu id e S p e c if i c a ti o n s Table 1–3 below lists the signal formats that can be displayed on the RMT-170e-HD.
  • Page 11 All manuals and user guides at all-guides.com RMT-170-HD User Guide Spe ci f ic a t ion s Table 1–4 Button/Signal-Terminal Relationships Input Signal Function Video/ YPbPr YPbPr SD SDI HD SDI HDMI DVI-D Contrast Bright Chroma — Phase NTSC —...
  • Page 12 All manuals and user guides at all-guides.com R M T -1 7 0 -H D U s e r Gu id e S p e c if i c a ti o n s Table 1–6 Analog Video Input Specifications Parameter Value 75 ...

  • Page 13: Front Panel Features And Controls

    F r o n t P a n e l F e a t u r e s a n d C o n t r o l s Front Panel Features and Controls The RMT-170-HD monitor provides a variety of in monitor data including signal type, waveform/vectorscope, IMD (In-Monitor Display), audio meters, and time code.
  • Page 14 All manuals and user guides at all-guides.com R M T -1 7 0 -H D U s e r Gu id e F r o n t P a n e l F e a t u r e s a n d C o n t r o l s •...
  • Page 15 All manuals and user guides at all-guides.com RMT-170-HD User Guide F r o n t P a n e l F e a t u r e s a n d C o n t r o l s •...
  • Page 16 All manuals and user guides at all-guides.com R M T -1 7 0 -H D U s e r Gu id e F r o n t P a n e l F e a t u r e s a n d C o n t r o l s Rotary Knob/Indicators The rotary knobs on the right side of the monitor’s control panel have multiple functions most of which are very similar and are listed...

  • Page 17: Rear Panel Connectors

    All manuals and user guides at all-guides.com RMT-170-HD User Guide R e a r P a n e l C o n n e c t o r s Rear Panel Connectors Figure 1–3 below illustrates the rear panel connectors. Refer to Figure 1–5 on page 16...
  • Page 18 All manuals and user guides at all-guides.com R M T -1 7 0 -H D U s e r Gu id e R e a r P a n e l C o n n e ct o r s Figure 1–5 BNC Connector Close Up Table 1–9...
  • Page 19 All manuals and user guides at all-guides.com RMT-170-HD User Guide R e a r P a n e l C o n n e c t o r s • SDI Inputs 1 and 2: HD/SD-SDI input signal on BNC jacks.

  • Page 20: Using The Osd Menu

    All manuals and user guides at all-guides.com R M T -1 7 0 -H D U s e r Gu id e U s in g t h e O SD M e n u Table 1–11 RS485 Pin Out RS485 Out Terminal RS485 In Terminal Signal Signal...
  • Page 21 All manuals and user guides at all-guides.com RMT-170-HD User Guide U s i n g t h e O S D M e n u VIDEO CONFIG AUDIO CONFIG USER CONFIG CONTROL Press the button to enter the parameter selections in the Enter chosen sub-menu.
  • Page 22 All manuals and user guides at all-guides.com R M T -1 7 0 -H D U s e r Gu id e U s in g t h e O SD M e n u Table 1–12 OSD Menu Structure (Continued) Default Menu Parameters...
  • Page 23 All manuals and user guides at all-guides.com RMT-170-HD User Guide U s i n g t h e O S D M e n u Table 1–12 OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value • • •...
  • Page 24 All manuals and user guides at all-guides.com R M T -1 7 0 -H D U s e r Gu id e U s in g t h e O SD M e n u Table 1–12 OSD Menu Structure (Continued) Default Menu Parameters...
  • Page 25 All manuals and user guides at all-guides.com RMT-170-HD User Guide U s i n g t h e O S D M e n u Table 1–12 OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value Selects the audio channel...
  • Page 26 All manuals and user guides at all-guides.com R M T -1 7 0 -H D U s e r Gu id e U s in g t h e O SD M e n u Table 1–12 OSD Menu Structure (Continued) Default Menu Parameters...
  • Page 27 All manuals and user guides at all-guides.com RMT-170-HD User Guide U s i n g t h e O S D M e n u Table 1–12 OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value A user-definable input of up to...
  • Page 28 All manuals and user guides at all-guides.com R M T -1 7 0 -H D U s e r Gu id e U s in g t h e O SD M e n u Table 1–12 OSD Menu Structure (Continued) Default Menu Parameters...

  • Page 29: Using The Function (F) Keys

    All manuals and user guides at all-guides.com RMT-170-HD User Guide U s in g t h e F u n c t io n ( F ) K e y s Using the Function (F) Keys When the OSD Menu...
  • Page 30 R M T -1 7 0 -H D U s e r Gu id e T e c h n i c a l F u n c t i o n a l O v e r v i e w Figure 1–8 RMT-170-HD RS-485 (UMD, OSD Tally)
