Wohler RMT-170e-HD Quick Manual

RMT-170e-HD
17" HD/SD-SDI Video Monitor
Full feature set, cost
effective, reliable
17" HD/SD-SDI video
monitor with in-screen
audio level meters
vectorscope, and
waveform

Rear Panel

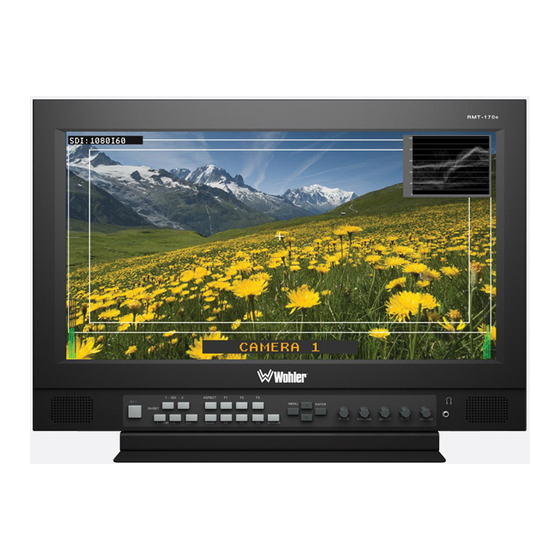

The RMT-170e-HD monitor is an ideal solution for viewing many different types of
HD/SD-SDI (up to 1080i and 720p) or analog video and computer input. Perfect for
the many feeds in mobile trucks, news and transmission control rooms,
duplication, and post production applications.
Using TFT/LCD screens, a perfect medium is reached in the scaling and
interpolation process, providing superb imaging regardless of video format.
This monitor comes with many in-monitor display features including in-screen
labeling, tally, time-code, format display, waveform, vectorscope, and safe area/
title display markers.
The RMT-170e-HD also provides a host of audio tools including level metering,
headphone output, and built-in speaker monitoring of its dual stereo analog
inputs or SDI embedded audio.
Benefi ts:
• On-screen level meters provide confi dence audio monitoring
• Tally and on-screen labeling provide quick and easy signal identifi cation
• CRT-style image controls allow video image enhancement for each screen
individually
HD/SD-SDI

Features:

• In-picture level metering, waveform, and vectorscope display
HD/SD-SDI
• Labelling, tally, timecode, safe and title markers
• Full gamma color calibration
HD/SD-SDI
• Built-in color bars
• Headphone and / or speaker outputs
• User-defi ned function buttons
• Intuitive on-screen menu
ORDER PART #
RMT-170e-HD: #8011-0310
Rack Mount Kit: #790018 (rack mount frame)
Table Top Kit: #790017
A
SDI
info@wohler.com www.wohler.com
HD
+1 888 5 WOHLER
