Defining the VP-4x1CS 4x1 PC Graphics Clean Switcher

This section defines the front and rear panels of the VP-4x1CS.

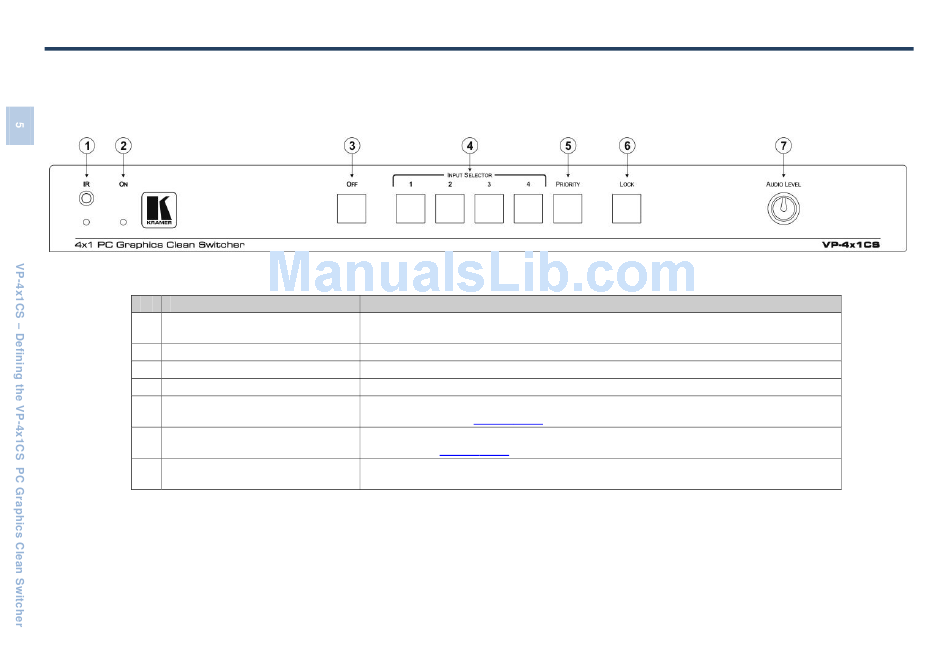

Figure 1: VP-4x1CS 4x1 PC Graphics Clean Switcher Front Panel

#
1 IR Receiver and LED
2 ON LED
3 OFF Button
4 INPUT SELECTOR 1~4 Buttons
5 PRIORITY Button
6 LOCK Button
7 AUDIO LEVEL Control
Feature
Signal receiver and LED for the infrared remote control transmitter. The indicator LED
lights yellow when receiving an IR signal
The LED lights green when the device is powered on
Press to mute the output
Press one of the 4 input buttons to switch it to the output
Press to set the current active input as the priority input. Press again to cancel priority
input selection (see
Press and hold to lock the front panel buttons. Press and hold again to unlock the
buttons (see
Rotate clockwise to increase the audio level and anticlockwise to decrease the audio
level of the audio output
Function
Section 7.1.1)
Section 7.1.3)
