3. Click Run.
The main switching control Home page is displayed which shows a graphical
interpretation of the front panel (see
The Web pages let you control the VP-4x1CS via the Ethernet. The menu appears
on the left side of the screen. There are three remote operation Web pages:
The switching matrix (see
Audio gain (See
Configuration (See
A description of each Web page is displayed if you place your mouse over the
question mark
7.2.2
The Switching Matrix Page
The VP-4x1CS switching matrix page lets you route any of the four inputs to the
output by clicking the relevant square on the matrix.

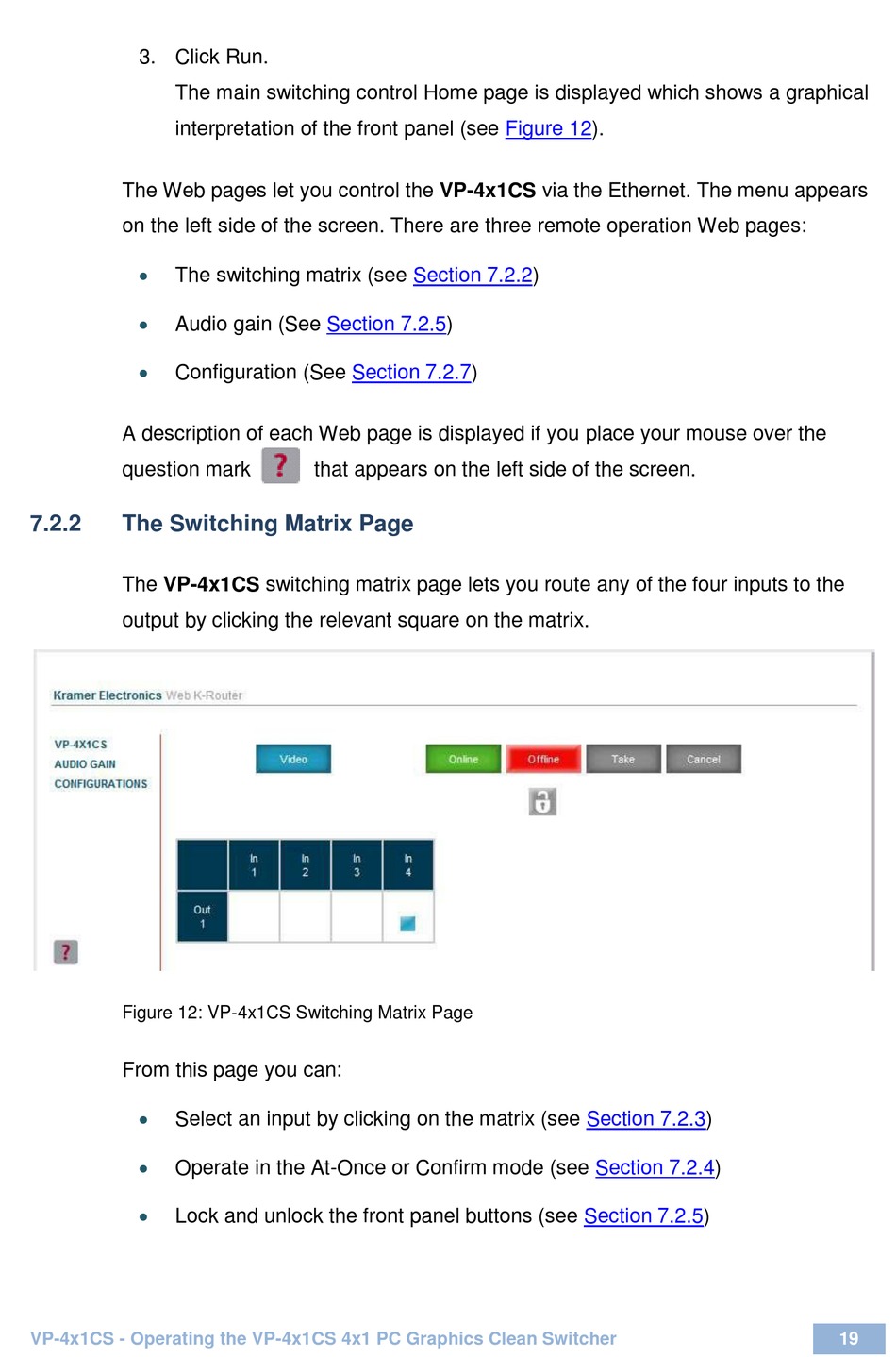

Figure 12: VP-4x1CS Switching Matrix Page

From this page you can:
Select an input by clicking on the matrix (see
Operate in the At-Once or Confirm mode (see
Lock and unlock the front panel buttons (see
VP-4x1CS - Operating the VP-4x1CS 4x1 PC Graphics Clean Switcher
Section
Section
7.2.5)
Section
7.2.7)
that appears on the left side of the screen.
Figure
12).
7.2.2)
Section
Section
Section
7.2.3)
7.2.4)
7.2.5)
19
