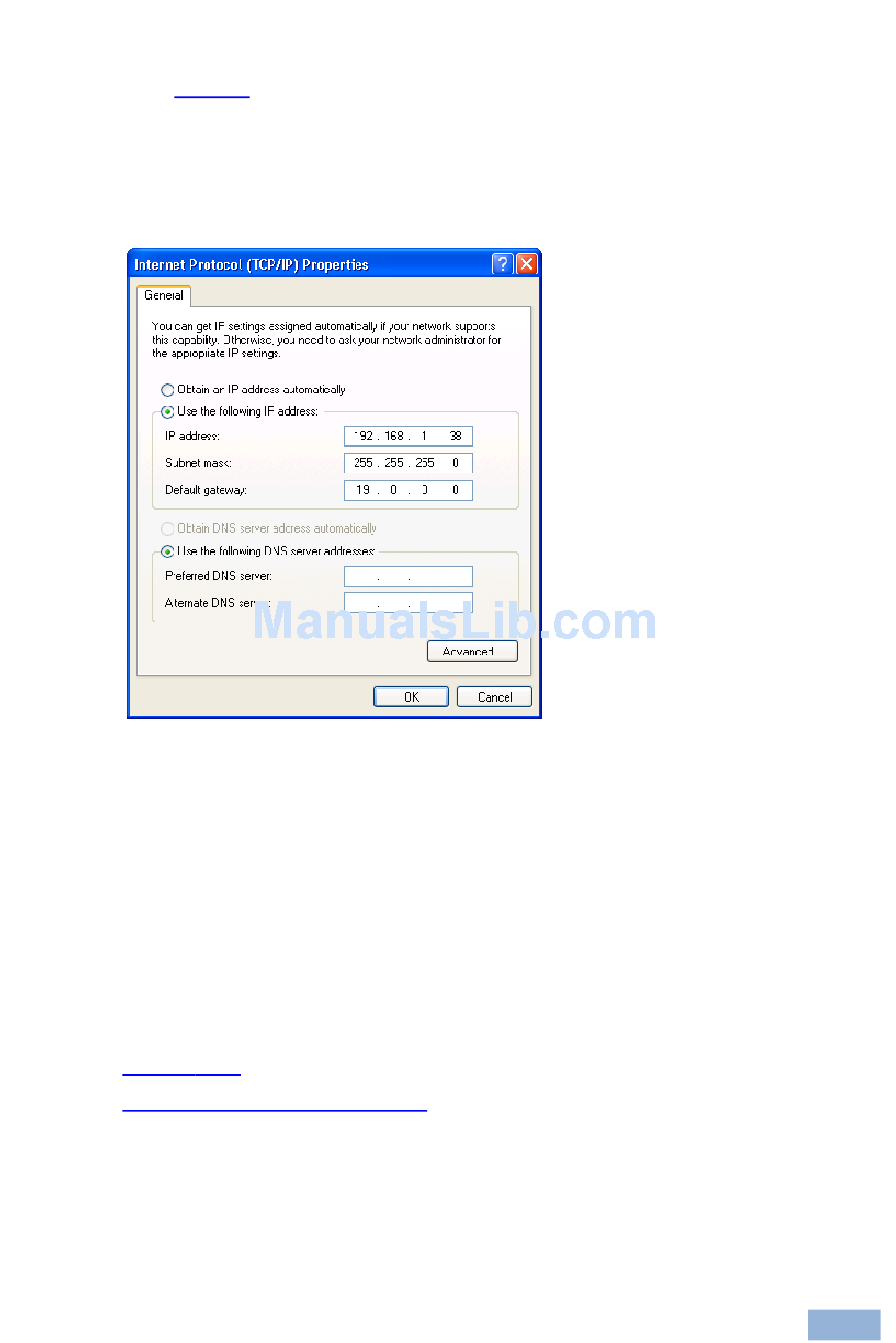

Ethernet Port Configuration; Figure 8: Internet Protocol (Tcp/Ip) Properties Window - Kramer VP-4x1 CS User Manual

4x1 pc graphics clean switcher

Table of Contents

6. Select Use the following IP Address, and fill in the details as shown in

Figure

192.168.1.255 (excluding 192.168.1.39) that is provided by your IT

department.

7. Click OK.

6.4.2

Connecting the Ethernet Port via a Network Hub

You can connect the Ethernet port of the VP-4x1CS to the Ethernet port on a

network hub or network router, via a straight through cable with RJ-45 connectors.

6.5

Ethernet Port Configuration

To configure the Ethernet port, use either the embedded Web pages (see

Section

7.2.7) or the K-Upload Software which is available for download from

http://www/kramerelectronics.com.

VP-4x1CS - Connecting the VP-4x1CS 4x1 PC Graphics Clean Switcher

8. You can use any IP address in the range 192.168.1.1 to
