Connecting The Vp-4X1Cs 4X1 Pc Graphics Clean Switcher; Figure 3: Connecting The Vp-4X1Cs 4X1 Pc Graphics Clean Switcher - Kramer VP-4x1 CS User Manual

6 Connecting the VP-4x1CS 4x1 PC Graphics
Clean Switcher

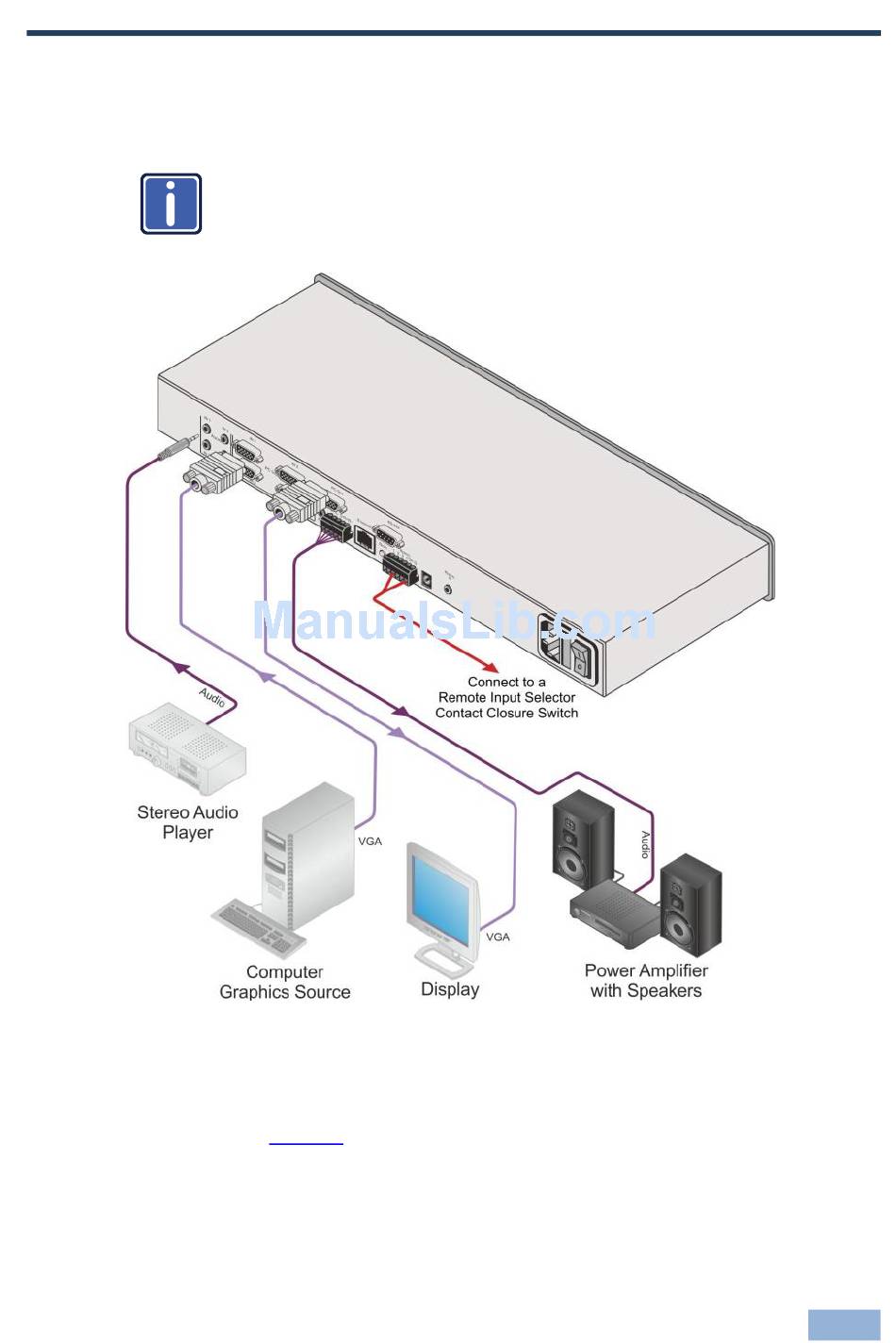

Figure 3: Connecting the VP-4x1CS 4x1 PC Graphics Clean Switcher

To connect the VP-4x1CS 4x1 PC Graphics Clean Switcher as illustrated in
the example in
1. Connect up to four audio sources (for example, stereo audio players) to the
Audio In connectors.
2. Connect up to four PC graphics sources to the PC Video In connectors.
VP-4x1CS - Connecting the VP-4x1CS 4x1 PC Graphics Clean Switcher
Always switch off the power to each device before connecting it to your
VP-4x1CS. After connecting your VP-4x1CS, connect its power and
then switch on the power to each device.
